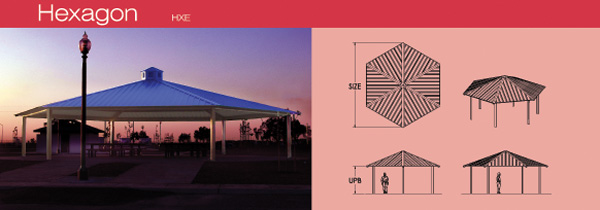

Hexagons, Octagons, Dodecagons Poligon's multi sided roof shelters are a cost effective solution that provide additional design elements for a variety of shelter coverings. They are available in a variety of standard sizes. Like all Poligon shelters, they are shipped as bolt-together kits, constructed of structural tube steel engineered with no exposed fasteners, no ledges for bird nesting and finished with our exclusive Poli-5000 in house powder coat finishing system, the most durable finish in the industry. The finish is available in 28 colors and now includes powder coated fasteners for ornamentation bolts to give it a great appearance. Hexagon Standard Sizes Available: 16, 20, 24, 28, 32, 40, 48, 58, 64 Roof Pitch: 5:12 (16-28) 3.5:12 (32-64)

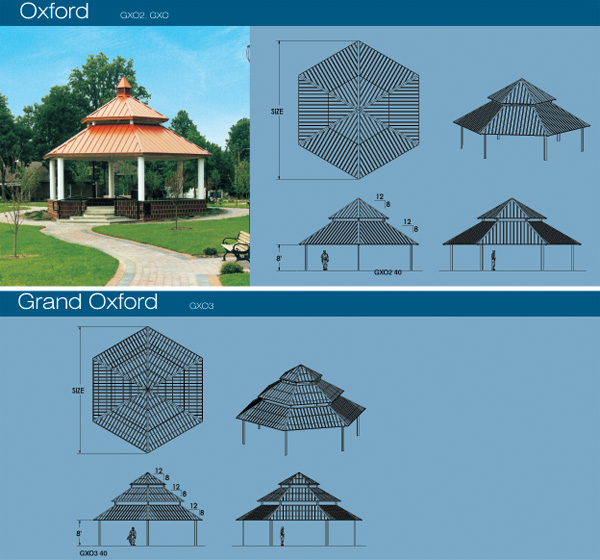

Hexagon w/Clerestory (Oxford) Standard Sizes Available: 14, 18, 22, 24, 28, 32, 40, 48, 58, 64, 76 Roof Pitch: 12:12 (14-22) 8:12 (24-76) Hexagon w/Dual Clerestory (Grand Oxford) Standard Sizes Available: 40, 48, 58, 64, 76 Roof Pitch: 8:12

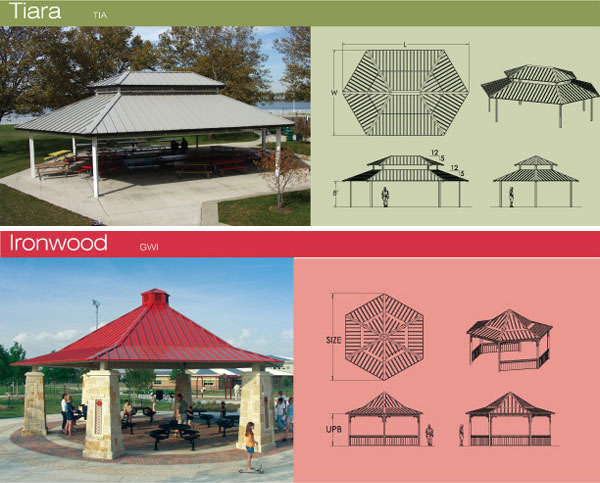

Hexagon w/Clerestory - elongated (Tiara) Standard Sizes Available: 15x24, 17x26, 20x29, 25x37, 30x44, 31x46, 35x51 Roof Pitch: 5:12 Hexagon dual pitch (Ironwood) Standard Sizes Available: 4, 16, 20, 24, 34, 42, 46, 60 Roof Pitch: 4:12-lower, 9:12-upper (14-24). 4:12 lower, 8:12 upper (34-60)

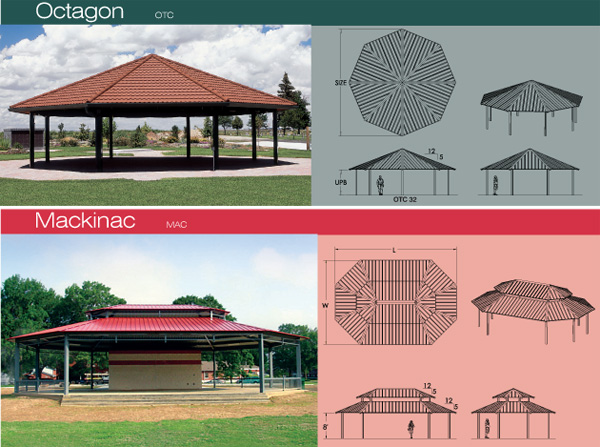

Octagon Standard Sizes Available: 16, 20, 24, 28, 32, 40, 48, 58, 64 Roof Pitch: 10:12 (available option on 16-24 sizes) 5:12 Octagon Elongated w/Clerestory (Mackinac) Standard Sizes Available: 15x21, 16x22, 20x29, 25x36, 25x50, 30x43 Roof Pitch: 5:12

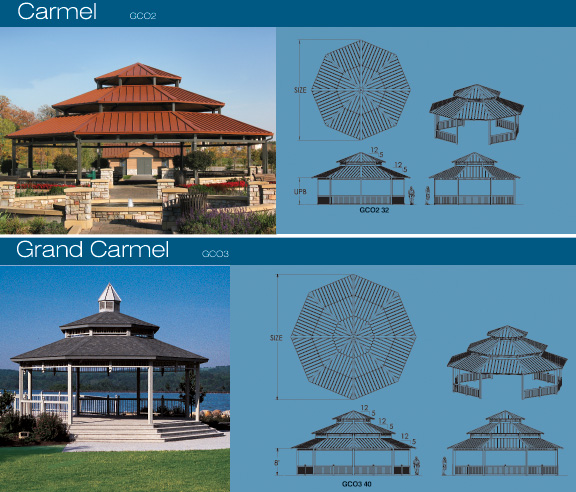

Octagon w/Clerestory (Carmel) Standard Sizes Available: 20, 24, 28, 32 Roof Pitch: 5:12 Octagon w/Clerestory (Grand Carmel) Standard Sizes Available: 40, 48, 58 Roof Pitch: 5:12

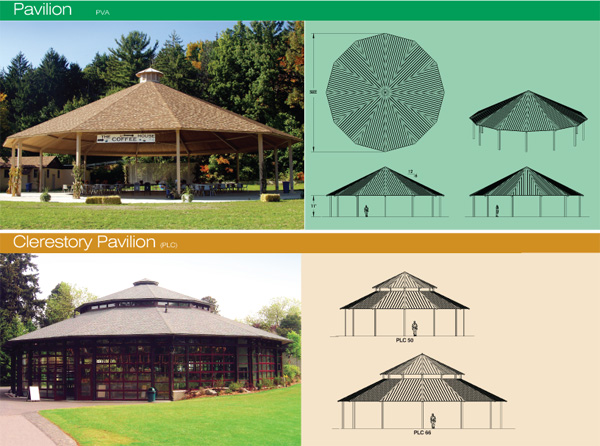

Dodecagon Pavilion
Roof Options:
