ARDEX Engineered Cements
400 Ardex Park Drive
Aliquippa, PA 15001
Tel: (724) 203-5000
Fax: (724) 203-5001
E-mail: info@ardex.com
Web site: http://www.ardex.com

ARDEX K-500
Self-Leveling Concrete Topping

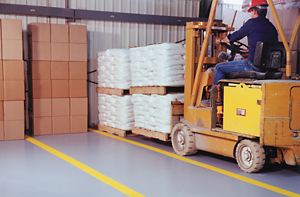

ARDEX K-500 is a self-leveling, no-troweling cementitious topping for resurfacing and leveling indoor concrete such as warehouse floors, utility areas, hallways, etc.

ARDEX K-500 mixes with water only and produces a pourable or pumpable liquid cement compound that seeks its own level and creates a flat and hard surface.

ARDEX K-500 installs from 1/4” to 1-1/2” in one operation; up to 5” with the addition of proper aggregate. ARDEX-500 will not spall and hardens fast—it can be walked on after 3 hours, coated the next day, and driven on after 48 hours.

RANGE OF APPLICATION:
ARDEX K-500 can be installed indoors over standard absorbent concrete subfloors to provide a flat and smooth floor.

ARDEX K-500 is not a resurfacing topping for industrial floors or chemical environments requiring customized industrial toppings.

TECHNICAL DATA

Mixing Ratio:
Standard Mixing Ratio – 5 1/2 qts. (5 liters) water per 55 lb. bag ARDEX K-500 Resilient Mix – 5 qts. (4 1/2 liters) water + 2 qts. (2 liters) ARDEX E-25 per 55 lb. bag ARDEX K-500
Coverage:
A 55 lb. bag covers approximately 27.5 sq. ft. at 1/4” thickness, 14 sq. ft. at 1/2”, etc.
Flowing Time:
10 minutes at 70°F
Initial Set:
ASTM C191: Approximately 30 minutes at 70°F
Final Set:
ASTM C191: Approximately 90 minutes at 70°F
Compressive Strength, ASTM C109/mod.:
5300 psi after 28 days
Flammability, ASTM E84:
Flame Spread 0
Fuel Contribution 0
Smoke Development 0
All data based on a mixing ratio of 1:3.75 p.b.v. at 70°F.
Shelf Life:
One year.
Packaging:
55-lb./25 kg in paper bags.
Storage:
Store in a dry area. Do not expose bags to sun.

ARDEX SD-T
Self-Drying, Self-Leveling Concrete Topping

DESCRIPTION: ARDEX SD-T is a self-drying, self-leveling, Portland cement-based topping for fast-track resurfacing, smoothing, or leveling of indoor concrete. ARDEX SD-T installs from 1/4” to 2” in one operation, and up to 5” with the addition of appropriate aggregate. ARDEX SD-T will not spall, and hardens fast. Due to its unique self-drying formulation, ARDEX SD-T can be coated with a water-borne concrete sealer just 2 hours after installation and opened to traffic as soon as the sealer has fully dried.

RANGE OF APPLICATION: ARDEX SD-T can be installed indoors over concrete subfloors to provide a flat and smooth surface for warehouses, utility rooms light manufacturing, retail areas, TV studios and all areas requiring a hard, smooth, flat concrete surface.

Note: ARDEX SD-T should not be used in areas of constant water exposure nor in areas where pre-existing moisture conditions may jeopardize the performance of the topping.

ARDEX SD-T is a natural product. As with any cementitious material, variations in color can occur as a function of jobsite conditions. If a monolithic appearance is required, it is recommended that an opaque sealer be used.

Always install an adequate number of properly located test areas, to include the final coating, to determine the suitability of the system for its intended use and traffic. Always contact and rely upon the coating manufacturer for specific application instructions and product guidelines.

TECHNICAL DATA
Coverage:
A 50 lb. bag covers approximately 25 sq. ft. at 1/4” thickness, 12.5 sq. ft. at 1/2”, etc.
Flowing Time:
10 minutes at 70°F
Initial Set, ASTM C191:
Approx. 15 minutes at 70°F.
Final Set, ASTM C191:
Approx. 60 minutes at 70°F.
Compressive Strength, ASTM C109/mod:
6100 psi after 28 days
Flexural Strength, ASTM C348:
1200 psi after 28 days.
Flammability, ASTM E84:
Flame Spread 0
Fuel Contribution 0
Smoke Development 0
All data based on a mixing ratio of 4 parts powder 1 part water p.b.v.

ARDEX SELF-LEVELING TOPPINGS

K-500 SD-T

Weight of bag 55 lb. 50 lb.

Approximate Coverage at ¼” 27.5 ft² 25 ft²

Water Amount per Bag 5.5 quarts 4.75 quarts

Flowing Time at 70ºF 10 min 10 min

Initial Set at 70ºF, ASTM C191 30 min 15 min

Final Set at 70ºF, ASTM C191 90 min 60 min

Compressive strength, ASTM C109/mod after 28 days 5300 psi 6100 psi

Flammability, ASTM E-84:

Flame Spread
Fuel Contribution
Smoke Development
0
0
0 0
0
0

	K-500	SD-T
Weight of bag	55 lb.	50 lb.
Approximate Coverage at ¼”	27.5 ft²	25 ft²
Water Amount per Bag	5.5 quarts	4.75 quarts
Flowing Time at 70ºF	10 min	10 min
Initial Set at 70ºF, ASTM C191	30 min	15 min
Final Set at 70ºF, ASTM C191	90 min	60 min
Compressive strength, ASTM C109/mod after 28 days	5300 psi	6100 psi
Flammability, ASTM E-84:
Flame Spread Fuel Contribution Smoke Development	0 0 0	0 0 0
