Aywon
P.O. Box 11
100 East Diamond Avenue
Hazleton, PA 18201
Tel 800-523-6671
Tel 570-459-3490
Fax 570-459-3499
www.aywon.com

MARKER BOARDS

Standard Features
for Frame Styles		 Big Apple Deluxe J-Series Hardwood Value Series
NYC Schools Approved Yes No No No No
Writing Surface or Facing P3 P3 P3 P3 Film-Fused Laminate
Markerboard Colors: White Yes Yes Yes Yes Yes
Chalkboard Colors: Green, Black & Slate All All All All Black Only
Minimum Size (Height by Width) 3x4 3x4 1.5x2 1.5x2 1.5x2
Maximum Size (Height by Width) 5x60 5x60 5x60 4x12 4x10
Aluminum Frame (Width in Inches) 1¾" 1½" ½" No ½"
Hardwood Frame (Ready to Finish) No No No 1¾" Oak No
Hardwood Chalk Tray No No No Optional No
MDF Backing ½" ½" ½" ½" ⅜" MDF
Factory Installed Closed-end AY-10 Tray Yes Optional No No No
Factory Installed AY-20 Tray No Yes Yes No Optional
Optional 1" Cork Display Rail Available Yes Yes Yes No No
Optional 2" Cork Display Rail Available Yes Yes Yes No No
Optional Display Rail Accessories Yes Yes Yes No No
Factory Installed Z-Bar Hanging System Yes No No No No
Integrated Aluminum Z-Bar Hanging System No Yes No No No
"J-Clip" Hanging System No No Yes Yes Yes
Mounts Flush to Wall Yes Yes No No No
Installation Instructions Yes Yes Yes Yes Yes
Ease of Installation Best Better Better Better Good
Shipping Method: Common Carrier Truck 3x4 to 4x12 3x4 to 4x12 3x4 to 4x12 3x4 to 4x12 3x4 to 4x12
Shipping Method: UPS 1.5x2 and 2x3 1.5x2 and 2x3 1.5x2 and 2x3 1.5x2 and 2x3 1.5x2 and 2x3
Weight per Square Foot of Surface Area 4 4 4 4 3½"
Writing Surface Warranty for Replacement (Years) Life Life Life Life 2


Other Configurations: Big Apple Deluxe J-Series Hardwood Value Series
Corkboard: Natural Cork Yes Special Order Yes Yes No
Corkboard: Forbo Cork in 12 colors Yes Special Order Yes Yes No
Vinyl or Fabric Bulletin Board in 6 Colors Yes Special Order Yes Yes No
Combination Chalkboard or Markerboard with Cork Special Order Special Order Special Order No No

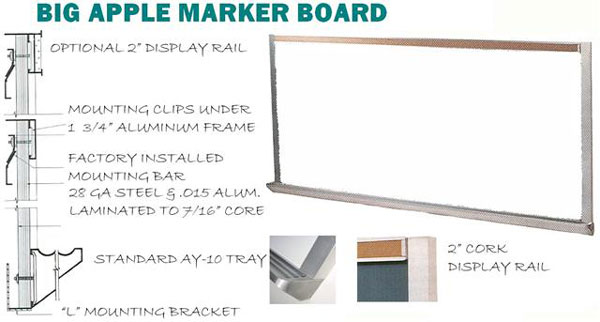

The Big Apple Series marker boards (formerly named Reddi-Frame Clip Tite) represent the ultimate in design and function. Its unique design complies with the New York City Board of Education and the NYC School Construction Authority specifications. Most current NYC School's replacement chalk and marker boards are from the Big Apple Series. The standard full-length factory installed mounting rail provides unsurpassed stability, safety and ease of installation. This unique mounting system uses the weight of the board to keep it pressed flush against the wall. This means there is no place for dirt or a student's "missing paperwork" to hide.

Although designed for heavy-duty school use, the Big Apple Series' beauty can enhance any training or conference room space. It comes standard with a white easy-to-clean magnetic Ceramicsteel P3 writing surface. The Ceramicsteel P3 writing surface has a lifetime warranty. The factory installed heavy-duty AY-10 chalk/marker tray features a smooth closed-end design with no sharp edges. Options include a 1" or 2" cork display rail with associated accessories. The Big Apple Series can also be custom manufactured with either a 4' or 5' height and up to 60' width.

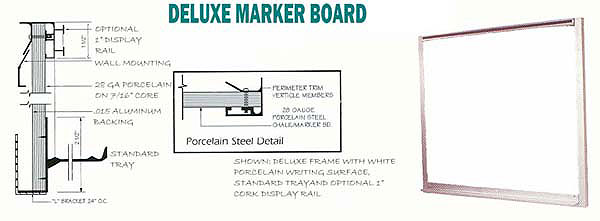

Deluxe Series marker boards offer many of the features of the premium Big Apple Series at a much lower cost. The facing, core and backing are the same as the Big Apple. The Deluxe Series features a factory-installed integrated hanging system that mounts flush to the wall. A 1.5" aluminum frame surrounds the white easy-to-clean magnetic Ceramicsteel P3 writing surface. The Ceramicsteel P3 writing surface has a lifetime warranty. All Deluxe Series boards come with a sturdy AY-20 chalk/marker tray. Options include an upgrade to the closed-end AY-10 chalk/marker tray plus optional 1" and 2" cork display rails with associated accessories. The Deluxe Series can also be custom manufactured with either a 4' or 5' height and up to 60' width.

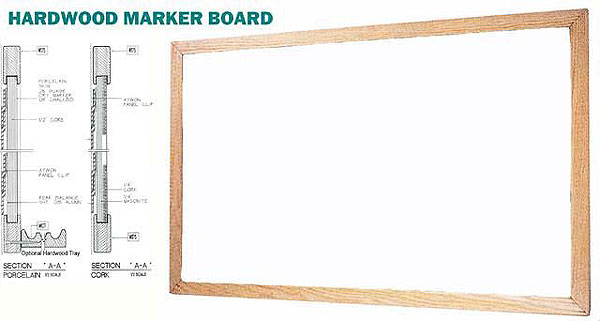

The Hardwood Series features an attractive 1¾" hardwood frame that can be mounted "as is" or stained or painted by the purchaser to match its surroundings.

Standard features include a white easy-to-clean magnetic Ceramicsteel P3 writing surface. The Ceramicsteel P3 writing surface has a lifetime warranty. An optional hardwood chalk/marker tray is also available for many sizes and configurations.

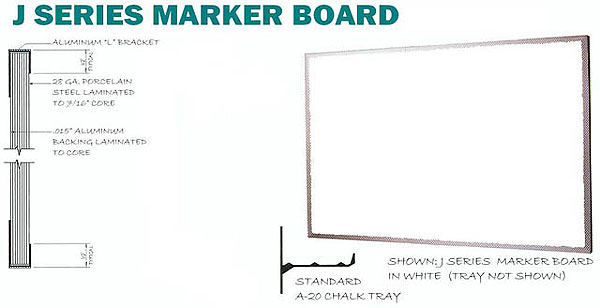

Aywon's J Series is a proven, yet economical, product line. All J Series marker boards come with an easy-to-clean magnetic Ceramicsteel P3 white writing surface, AY-20 chalk/marker tray and a sturdy ½" aluminum frame. The Ceramicsteel P3 writing surface has a lifetime warranty. The "industry standard" mounting system is easy to install. Options include an upgrade to the AY-10 chalk/marker tray and 1" and 2" cork display rails with associated accessories. J Series marker boards are available in standard sizes from 1.5"x2' to 4'x12'. The J Series can also be custom manufactured with either a 4' or 5' height and up to 60' width.

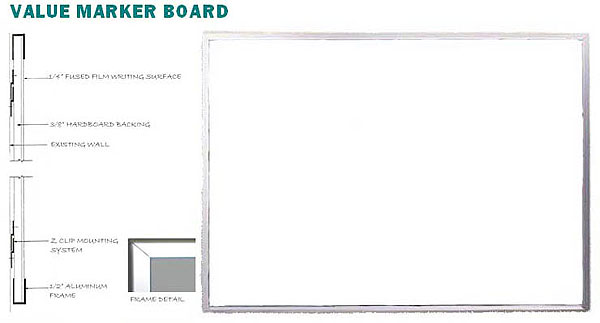

Value Series marker boards are designed to meet the needs of those who have limited funds and will not use the writing surface every day. This design is perfect for restaurants, religious groups, fraternal organizations, home schooling, etc. Value Series marker boards come with a white "fused film" writing surface. The ¼" "fused film" writing surface is laminated to a ⅜" hardboard backing and surrounded by a ½" aluminum frame. The "fused film" writing surface has a two-year warranty. The AY-20 chalk/marker tray is available as an option.
