Portals Plus insulation Breathers
and Vents are used to prevent moisture vapor from becoming trapped in the
roof system, equalizing air pressure, reducing the risks of ballooning,
blow-off, deteriorating insulation and separating deck seams. The Portals
Plus Vents have a one way valve designed in the unit to prevent moisture
from re-entering the roof system. The Portals Plus Breathers allow for
both exhaust and convective movement of air between breathers. Both the
Breather and Vent are available in heavy gauge spun aluminum, black high-density
polyethylene, white U.V. stabilized PVC, or white TPO (thermoplastic olefin)
with a locking, vandal proof cap that shields against entry of wind blown
rain or snow.
Furnish and install Portals Plus
Alumi-Vent or Alumi-Breather as manufactured by Portals Plus, Inc., Bensenville,
IL, at a spacing of one per 1000 square feet. The Alumi-Vent or Breather
shall be made of .050 spun aluminum with a base flange diameter of 12"
and a height of no less than 7.25". The stand pipe will have a 4.25" base
opening and a 2.5" counter flashing rain cap that will be a locking, vandal
proof type.

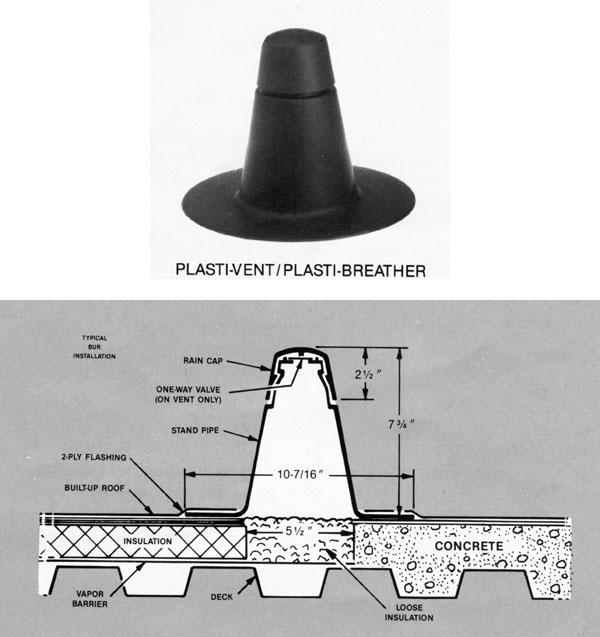

Furnish and install Portals Plus
Plasti-Vent or Plasti-Breather as manufactured by Portals Plus, Inc., Bensenville,
IL, at a spacing of one per 1000 square feet. The Plasti-Vent or Breather
shall block high-density polyethylene with a base flange diameter of 10-7/16"
and a height of no less than 7.25". The stand pipe will have a 5.5" base
opening and a 2.5" counter flashing rain cap that will be a locking, vandal
proof type.
|
