FIRE RATED WINDOWS
Optimum, being the largest Fire Rated Window manufacturer in the United States, offers a complete line of self-closing, fire rated windows. We offer operable windows in Double/Single Hung, Project In or Out, Sliding & Casements, as well as fixed windows. These windows can be the solution to your interior corridor applications as well as exterior lot line conditions. These windows are solely produced to prevent the spread of fire from one building to another and to create safe passageways in the event of a fire.
SERIES 6000 3/4 HOUR FIRE RATED STEEL FIXED WINDOW

Features:

  • 20 Gage Cold Rolled Formed Steel Window
  • Approved for 3/4 Hour Fire Rating Applications
  • UL (Underwriters Laboratories) Listed and Certified
  • ANSI/AAMA 101-93 HC40
  • 6 psf Water Test Pressure
  • 1 7/8” Exterior Frame Depth
  • Mitered, Corner Keyed Frame and Sash Joinery
  • Uniform Sight Lines
  • Glazed with Cold Rolled Formed Steel Glazing Beads
  • 3/16” to 7/8” Glazing Infill (Note glazing utilized with this product must be UL listed and approved for 3/4 hour applications).
  • Factory Glazing Available
  • Standard Colors Brown and White
  • Baked Polyester Powder Coat on Standard Colors

Options:
  • Custom Colors
  • Steel Brake Metal and Trim
Standard Warranty:
  • 3 Years on Finish
  • 1 Year on Operable Parts (Detailed information on warranties is available upon request)

SERIES SC7600 3/4 HOUR FIRE RATED STEEL SELF CLOSING HORIZONTAL SLIDING WINDOW

Features:

  • 20 Gage Cold Rolled Formed Steel Window
  • Approved for 3/4 Hour Fire Rating Applications
  • UL (Underwriters Laboratories) Listed and Certified
  • ANSI/AAMA 101-93 HC40
  • 4 1/4” Exterior Frame Depth
  • EPDM and Silicoated Pile Weather-stripping
  • Frames are Coped and Mechanically Assembled
  • Glazed with Cold Rolled Formed Steel Glazing Beads
  • Window is Designed to Receive Glass From 3/16” to 7/8” in Overall Thickness (Note glazing utilized with this product must be UL listed and approved for 3/4 hour applications).
  • Sweep Lock at Center of Sash Up to 36”, 2 Sweep Locks Thereafter
  • 1 Self-latching Handle
  • Standard Colors Brown and White
  • Finish on Standard Colors, Baked Polyester Powder Coat
Options:
  • Custom Colors
  • Custom Hardware
  • Limited Operation Stops
  • Steel Brake Metal and Trim
  • Half Screens
Standard Warranty:
  • 3 Years on Finish
  • 1 Year on Operable Parts (Detailed information on warranties is available upon request)

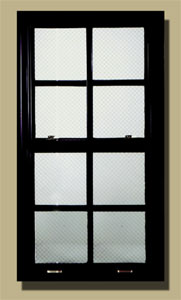

SERIES SC7650 3/4 HOUR FIRE RATED STEEL SELF CLOSING SINGLE AND DOUBLE HUNG WINDOWS

Features:

  • 20 Gage Cold Rolled Formed Steel Window
  • Approved for 3/4 Hour Fire Rating Applications
  • UL (Underwriters Laboratories) Listed and Certified
  • ANSI/AAMA 101-93 HC40
  • 4.5 psf Water Test Pressure
  • 4 1/4” Exterior Frame Depth
  • EPDM and Silicoated Pile Weather-stripping
  • Frames are Coped and Mechanically Assembled
  • Uniform Sight Lines
  • Glazed with Cold Rolled Formed Steel Glazing Beads
  • 3/16” to 7/8” Glazing Infill (Note glazing utilized with this product must be UL listed and approved for 3/4 hour applications)
  • Factory Glazing Available
  • Standard Colors Brown and White
  • Baked Polyester Powder Coat on Standard Colors
Options:
  • Custom Colors
  • Custom Hardware
  • Limited Operational Stops
  • Steel Brake Metal and Trim
  • Half Screens
Standard Warranty:
  • 3 Years on Finish
  • 1 Year on Operable Parts (Detailed information on warranties is available upon request)

SERIES 8600 3/4 HOUR FIRE RATED STEEL SELF CLOSING PROJECTED WINDOWS

Features:

  • 20 Gage Cold Rolled Formed Steel Window
  • Approved for 3/4 Hour Fire Rating Applications
  • UL (Underwriters Laboratories) Listed and Certified
  • ANSI/AAMA 101-93 HC40
  • 6 psf Water Test Pressure
  • 1 7/8” Exterior Frame Depth
  • EPDM Weather-stripping
  • Mitered, Corner Keyed Frame and Sash Joinery
  • Uniform Sight Lines
  • Glazed with Cold Rolled Formed Steel Glazing Beads
  • 3/16” to 3/4” Glazing Infill (Note glazing utilized with this product must be UL listed and approved for 3/4 hour applications).
  • Factory Glazing is Standard
  • Standard Colors Brown and White
  • Finish on Standard Colors, Baked
  • Polyester Powder Coat
Options:
  • Custom Colors
  • Custom Hardware
  • Limited Operational Stops
  • Steel Brake Metal and Trim
  • Screens
Standard Warranty:
  • 3 Years on Finish
  • 1 Year on Operable Parts (Detailed information on warranties is available upon request)
Note: Also available in Non-fire rated as our Series 8000.
