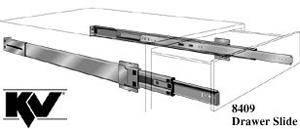

8409 Drawer Slide

Heavy-duty, full-extension precision slides for use in face frame kitchen cabinets.

SPECIFICATIONS

number 8409 Full Extension Drawer Slide

mounting Side-mountable in face frame construction

height 3"

clearance 1/2" plus 1/32" minus 0" each side

load rating 100-Pound Class (BHMA, KCMA, and BIFMA applications)

finish Anochrome™ (bright zinc chromate electro-plated with a lacquer top coat). Also available in Ebony Black™ finish (black zinc chromate electro-plated with a lacquer top coat), and Epoxy-coated White finish (special order).

action Telescoping, full-extension on precision steel ball bearings

features Side-mountable in frame construction. Non-handed design. Includes front and rear brackets for easier installation in face frame cabinets. Ball retainer latch and ramps for easy drawer insertion. Drawer adjustment without removal; flexible mounting tabs self-adjust to side clearance. Metal ball retainer holds 3 bearings per inch of race for smooth and quiet motion. Polymer stop cushions.

sizes 16", 18", 20", 22", and 24".

NOTE: Consult price list or Customer Service for stock availability information on different sizes, packages and finishes.

packaged Poly pack (8409P): 10 sets individually poly-packaged with screws and installation instructions.

Bulk pack (8409B): 10 pairs per box; screws not included.

Quantity pack (8409Q): 100 cabinet members (5 cartons) and 100 drawer members (1 or 2 cartons depending on length). Screws not included. WEB site.
