Gerkin Windows & Doors PO Box 3203 Sioux City, IA 51102 Tel: (402) 494-6000 Toll free: (800) 475-5061 Fax: (402) 494-6765 E-mail: gerkin@gerkin.com Web: http://www.gerkin.com

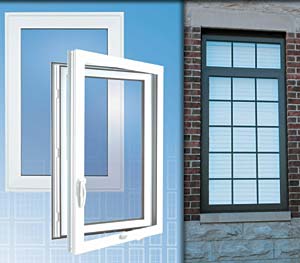

Rhino Casement Series 5300 Performance 5300 C-40 is an AAMA C-C40 rated casement window. 5300 C-60 is an AAMA C-HC60 rated casement window. 5300 C-90 is an AAMA C-HC90 rated casement window.
Frame Construction & Materials 6063-T5 Alloyed aluminum with butt cut fabrication and stainless steel screw fasteners. 2 3/8" thermally broken frame depth with double wall construction: Gerkin uses a thermally broken frame and sash for improved thermal efficiency. Reinforced power crimped sash corners: All sash corners are reinforced with two engineered corner keys which are hydraulically crimped, creating a corner built to last for years of trouble free operation. Finish: Organic painted finishes in white, bronze as well as anodic finishes of clear anodized and dark bronze. Custom paint and anodized finishes are available. Operation 4-bar friction hinge: Four bar heavy-duty friction hinges will provide easy operation and tension adjustments. Washability and egress hinges are available for roto operation or push/pull manual operation. Truth maxim roto operators: Gerkin eliminates the complaints of hard operating casements by offering extra cranking power and a low gear for smooth trouble free operation. Our gear teeth are close together, which removes extra play in an open sash and reduces the likelihood of damage. HardwareTruth maxim multi-point progressive lock: This 3-point lock system is very forgiving with a wide operating tolerance. The use of secondary locks is no longer needed. The weather seal received from the system is incredibly tight. Weather & Climate ControlSash overlaps frame: Gerkin provides two compression seals on every sash and then overlaps the frame of the window with one of the seals. This design allows Gerkin to have one of the tightest windows available. Glass and GlazingInsulated Glass: Overall glass thickness options are 5/8" or 1". Standard glass options are Comfort E2 Low E, bronze tint, obscure and tempered. Internal glass grills are also a standard option. Custom glass options are available. Options Rhino Accessory Options: Gerkin offers complete subframe and panning systems, nail fins, snap trims, sill-flashing strap anchors, stacking frames, structural mullions, mullion covers and factory applied extension jambs. Other options: Gerkin offers a louver system with a blank-off panel for PTAK units. Casements are available in vertical or horizontal multiwindow common frame configurations. Extruded screen frames: Gerkin uses extrusions on all Rhino screen frames instead of lightweight roll form aluminum. Extruded screens are much more durable and save money in replacement costs. About Gerkin Windows & Doors - Quality since 1932 Our primary focus has been to manufacture energy saving window and door products. Throughout our history we have established ourselves as an innovator in the design and manufacturing capability of insulated windows and doors. Stringent product testing and innovative design has allowed our products to evolve as market and consumer needs change. In the winter of 1989-90 we started to conceptualize and design our Rhino Commercial Aluminum window series. Today we have several commercial window styles in the Rhino line. This window series consists of a commercial horizontal slider, casement, hopper, awning, fixed and hung windows. Each Rhino window reflects the design and manufacturing expertise we’ve implemented over the years. We also publish our AAMA test results to back up our claims of product performance and quality. Our website at www.gerkin.com offers AutoCAD details of window drawings and written specifications for architectural use. The Gerkin estimating department offers quoting and shop drawing services. Distributor catalogs are also available for over the counter quoting and architectural detail referral. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
