Extruded Aluminum Gravel Stops and Copings

Architectural Products Co.
1290 Aviation Blvd., Ste. 200
P.O. Box 630
Hebron, KY 41048
Tel: (859) 689-2210
Toll-Free: (800) 837-1001
Fax: (859) 689-2215
E-Mail: info@archprod.com
Web site: http://www.archprod.com

EXTRUDED ALUMINUM GRAVEL STOPS AND COPINGS

MANUFACTURER
Architectural Products Company has been manufacturing aluminum gravel stops and copings for over 40 years. Supplying gravel stops and copings both nationally and internationally, we excel at custom and unusual shapes and finishes per the architect's specifications and drawings. As a job shop manufacturer, no job is too small or large. To receive detailed product information and/or color samples contact us by phone, fax or E-mail.

PRODUCT PRESENTATION

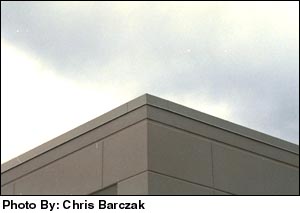

The Extruded Aluminum Copings and Gravel Stops shown in this profile are our standard shapes made from 6063-T52 extruded aluminum. We offer fully welded corners and scuppers for each gravel stop and coping system.

If you need a custom profile, be sure to contact our Engineering Department for technical assistance with developing your designs.

Gravel Stop Type F
Description
This simple and economical system can be used with most roof systems. This Gravel Stop is available in all our 17 standard Kynar colors, custom Kynar color, anodize or mill finish.

See CAD details attached to this profile.

Uses
The Type F Gravel Stop is compatible with most types of roofing systems.

Gravel Stop Type FF
Description
This Gravel Stop Type FF utilizes concealed joint covers for a flat clean unbroken line appearance. This Gravel Stop is available in all our 17 standard Kynar colors, custom Kynar color, anodize or mill finish.

See CAD details attached to this profile.

Uses
The Gravel Stop Type FF is compatible with most types of roofing systems.

Fascia System XP and Galvanized Water Dam
Description
This Fascia System XP and Galvanized Water Dam is designed to seal the edge of the roof and is FM Approved. This Fascia meets FMRC Approval requirements as Roof Perimeter Flashing for use in Zone 1 and Zone 2 Windstorm Areas as defined in FME&R Loss Prevention Data Sheet 1-7 and 1-49. This Fascia System is available in all our 17 standard Kynar colors, custom Kynar color, anodize or mill finish.

See CAD details attached to this profile.

Uses
The Fascia System XP is compatible with most single ply roofs.

Drainable Gravel Stop Type ED
Description
This Drainable Gravel Stop Type ED is designed to let water drain off the roof. This Gravel Stop is available in all our 17 standard Kynar colors, custom Kynar color, anodize or mill finish.

See CAD details attached to this profile.

Uses
The Drainable Gravel Stop System Type ED is compatible with most single ply membrane, built up or modified bitumen roofing systems.

Fascia System Type AP and Galvanized Water Dam
Description
This Fascia System Type AP and Galvanized Water Dam is designed to seal the edge of the roof. This Fascia meets FMRC Approval requirements as Roof Perimeter Flashing for use in Zone 1 and Zone 2 Windstorm Areas as defined in FME&R Loss Prevention Data Sheet 1-7 and 1-49. This Fascia System is available in all our 17 standard Kynar colors, custom Kynar color, anodize or mill finish.

See CAD details attached to this profile.

Uses
This Fascia System is used with built up or modified bitumen roofs.

Extruded Aluminum Coping Types G-6, G-8, G-11 and G-12
Description
This coping is designed to seal the top of a parapet wall. The coping does not require a wood nailer. This Coping is available in all our 17 standard Kynar colors, custom Kynar color, anodize or mill finish.

See CAD details attached to this profile.

Uses
The Extruded Aluminum G-Type coping is compatible with parapet walls that are masonry, precast concrete, wood stud and metal stud. The G-Type coping systems are made of extruded aluminum and should not be confused with formed snap-tight aluminum copings. The G-Type coping systems are much thicker than formed copings and are held to the wall with bolts encased in the wall rather than nailed or glued-on systems.

MATERIALS, FINISHES
For color chart, see the "Formed Aluminum Gravel Stops and Copings" profile.

The standard colors are available for all Architectural Products Company's formed and extruded aluminum products. Flat prefinished sheet in .032, .040, .050 aluminum or 24 gauge steel is also available in these colors.

The standard colors are available in a Fluoropolymer Kynar 500 Finish. Other colors are available with a longer lead time. A smooth texture is standard, but stucco emboss is available upon request for formed or sheet products.

Anodized finishes in Clear, Light Bronze, Medium Bronze, Dark Bronze or Black are available.
Color variation can and should be expected with the anodized finishes. If color consistency is required, we recommend a Kynar Finish.

If you have a color or finish requirement that is not shown here, please contact us.

The reproduction of color chips is as accurate as electronic publishing will permit. Contact the manufacturer for an actual color sample before making a final selection of color and for absolute accuracy in color matching.

CODES, CERTIFICATION
Warranty
A. Manufacturer's Standard Warranty: Materials shall be free of defects in material and workmanship for five years after shipment. If, after inspection, the manufacturer agrees that materials supplied by them are defective, the manufacturer shall at their option repair or replace them.

B. Optional Special Warranty: Manufacturer shall guarantee that a Coping or Gravel Stop System, when installed per manufacturer's instructions, will not blow off, leak, or cause membrane failure, even in wind conditions up to 110 mph, or the manufacturer shall replace or repair their materials.

Approvals
The following extruded products are FM approved:

Disclaimer
In presenting this information, we cannot claim to serve in any but an advisory capacity and can undertake no liability. All recommendations regarding the use of our products should be modified if necessary, to conform with local conditions and materials employed. Architectural Products Company also reserves the right to amend or change any of the information contained herein, whether to reflect new information obtained, or as needed to conform to specific project, job or climate conditions.

AVAILABILITY, COST
All of Architectural Products Company's products are available both nationally and internationally. Please contact the factory for estimates and availability of products.
