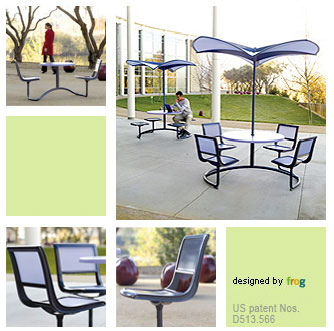

Mingle Outdoor Furniture

The 35 Collection is the next generation of outdoor furniture for the way we live, work, learn and play. Mingle is an open and inviting attached seating system that brings everybody to the table. It's an especially good fit to create an environment of informal interaction and information sharing that builds relationships and culture.

More Details:

  • For more information regarding materials, dimensions and specification options, please download our 35 Collection Specifications Guide.
  • 2, 3, 4, 5 or 6 seat styles offered
  • 3-seat and 5-seat units leave one seat space open to allow wheelchair access
  • 2- and 3-seat styles MUST BE SURFACE MOUNTED FOR THE SAFETY OF USERS
  • Seats may be backed or backless
  • Aluminum cast seat frames offered with polycarbonate or perforated aluminum panel
  • Tubular steel seat frames offered with perforated aluminum panel only
  • All styles feature durable support formed of steel tubing
  • May be surface mount or freestanding with glides
  • Table tops may be Marneaux®, Catena (powdercoated metal or random finish stainless steel), Steelhead (solid top)
  • Mingle ships as 3 basic components: support, tabletop and seats. Once the support is set in place on site, the seats and tabletops are easily attached.
  • Optional umbrella hole (cannot be added later)
  • Built-in umbrella holder and mounting bolts for umbrella pole
  • If Shade or Solstice umbrellas are used, mingle must be surface mounted
  • Metal parts finished with Panguard II® powdercoat available in standard colors (Catena with stainless steel table top is not powdercoated.)
  • Optional powdercoat colors available for an upcharge

Dimensions

For detailed dimensions, download CAD drawings. Below are basic dimensions.

  • Seats are 17" h
  • Backed Seats: XX" h to top of back
  • Tabletops are 29" h
  • 2-Seat unit tabletop is 30" dia.
  • 3-, 4-, 5-, 6-seat unit tabletops are 42" dia.
Table Top Material Choices
  • Marneaux®
    • Features acrylic resin solid surface material
    • Withstands harsh environments; requires minimal maintenance
    • Resists scratching, staining, chipping and cracking
    • Weather, harsh chemicals, UV rays have virtually no effect on the through-body color
    • Scratches can be buffed out and graffiti wipes away with household cleaners
    • Approved by the National Sanitation Foundation for food service areas
    • Available in a variety of colors, including NEW translucent colors
  • Steelhead
    • Solid insert is 14-gauge steel set in a 1-1/2in. o.d. diameter frame reinforced with steel channels beneath the top
  • Catena
    • 14-gauge steel with rolled edge, reinforced with steel channels beneath top
    • Available in powdercoated steel or random finish stainless steel

To Specify: Select Mingle

Choose

  • Seats: 2, 3, 4, 5 or 6 seats; polycarbonate or perforated metal; backed or backless
  • Cast Aluminum or Tubular steel seat frames
  • For cast aluminum seat frames choose polycarbonate or perforated aluminum panels
  • Table top - Marneaux®, Catena (powdercoated metal or random finish stainless steel), or Steelhead (solid only)
  • With or without umbrella hole (cannot be added later)
  • Powdercoat color for Steelhead or powdercoated metal Catena top or Marneaux® color
  • Powdercoat color for seats and support
