The Grade 1 adjustable solution
Designed with the installer in mind, the 5200 series raises the standard in adaptability for electric strikes. Offering features such as an all new innovative approach to in-frame horizontal adjustability, the 5200 electric strike is the perfect fit for multiple applications. The field
selectable fail secure/fail safe unit is easy to install and accommodates 5/8" to 3/4" latchbolts.
- UL 1034, burglary-resistant listed
- ANSI/BHMA A156.31, Grade 1
- Patent # 5,934,720
- .24 Amp @ 12VDC/VAC
- .12 Amp @ 24VDC/VAC
- DC continuous duty/AC intermittent duty only
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- In-frame horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates 5/8"-3/4" latchbolt
(3/4" with 1/8" door gap)
- Strike body depth 1-3/16"
- Plug-in connector
- Trim enhancer included
- Five year limited warranty

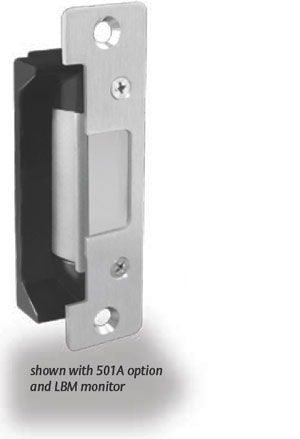

- LBM – Latchbolt monitor
- LBSM – Latchbolt strike monitor
- 5200 – 500 Filler block for retro-fit applications
- 154 – MTK Metal template kit
- 2001M – Plug-in bridge rectifier
- 2004M – ElectroLynx® adapter
- 2005M – SMART Pac II™
- 2006M – Plug-in buzzer

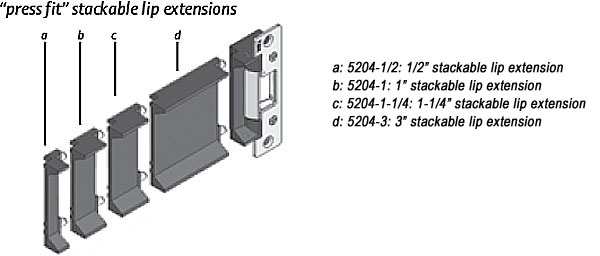

- Four "press fit" stackable lip extensions
- 630 – Satin stainless steel finish
- 605 – Bright brass finish
- 606 – Satin brass finish
- 612 – Satin bronze finish
- 613 – Bronze toned finish
- 629 – Bright stainless steel finish
- BLK – Black finish
Operation: After release, the keeper returns to the locked position.
Operation: After releasing the latchbolt, the keeper returns to the locked position.
Operation: After releasing the latchbolt, the keeper returns to the locked position.
Operation: After releasing the latchbolt, the keeper returns to the locked position.
Operation: After releasing the latchbolt, the keeper returns to the locked position.
