DC2000, DC3000 Series

Applications

DC2000
Proven effective in high-use, high-abuse environments. Ensures reliable latching for access control and fire and barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new and retrofit construction. 10-year limited warranty.

DC3000
The mid-priced, cost-effective choice for high traffic situations. Ideal for both new construction and renovations while ensuring fire and barrier-free code compliance. 5-year limited warranty.

Features

Spring
DC2200 closers: multi-sized; fully adjustable 1 through 6.
DC2400 closers: sizes 1 through 6; half-size adjustability.
DC2600 closers: sizes 1 through 6: non-adjustable.
DC3200 closers: multi-sized; fully adjustable 1 through 6.
DC3600 closers: sizes 1 through 5; nonadjustable.

Body
Cast iron case with seamless one-piece forged steel spring tube.

Arm
Standard; heavy-duty forged steel.

Spindle
Triple heat-treated steel.

Piston
Precision machined, heat-treated steel.

Springs
Double heat-treated steel, tempered.

Backcheck
Multiple backcheck location valve permits choice of 70° or 90° backcheck setting.
DC2000 Series only.

Valves
Backcheck intensity valve with safety feature on DC2200, DC2400, DC2600, and DC3200 Series. Optional on DC3600. Latching and closing speed standard on all series. Delayed action optional on all series.

Seals
O-rings.

Fluid
High lubricity hydraulic fluid standard.

Degree of Opening
Up to full 180° opening standard for regular, top jamb and parallel arm mountings.

Mounting Bracket
QUIK-INSTALL™ mounting bracket standard.

Warranty
Five-year limited on DC3000.
Ten-year limited on DC2000.

Finishes
BHMA 600, 689, 690, 691, 693, 696.

Electromechanical
Available with magnetic hold-open and smoke detector.

Certifications/Compliance

ANSI
Meets A156.4, Grade 1. Meets A117.1 Accessibility Code.

Federal
Meets FF-H-121D, Type 3000.

UL/ULC
Listed for fire and cycle requirements. This includes conformance to UL10C and UBC 72-1997.

Barrier-Free Code Compliance
*Closers conform to the 5 lbf. maximum door opening force requirement for nonfire-rated interior hinged doors, according to:

Americans with Disabilities Act (ADA)
American National Standards Institute (ANSI)

Advantages

• Meets or exceeds ANSI A156.4 Grade 1 requirements.
• Compliance with building and barrierfree codes.
• Up to full 180° door opening.
• Unique pressure-relief backcheck intensity valve includes safety feature to maintain correct internal pressure.
• One-piece seamless steel spring tube seals in hydraulic fluid.
• Cast iron body.
• QUIK-INSTALL™ mounting bracket speeds installation, reducing cost and errors.
• Ten-year limited warranty on DC2000 Series.

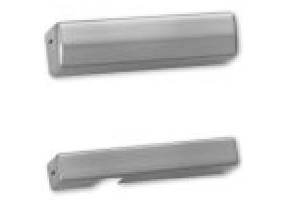

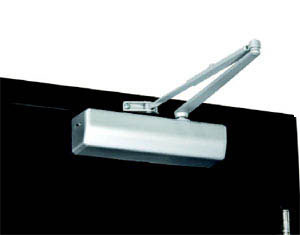

Full Cover
Standard on all DC2000 and DC3000 Series Door Closers. Completely covers closer body. Non-handed. 2-3/4" (70mm) x 11-9/16" (294mm) x 2-15/16" (75mm). Painted and plated finishes.

Slim Cover
Non-handed. Cap covers bottom of spindle. Optional for all DC2000 and DC3000 Series. 1-3/4" (44mm) x 2-3/4" (70mm) x 11-3/8" (289mm). Available in painted finishes.

Full Metal Cover
For use in high-abuse applications, such as schools and detention facilities. For all mountings, specify hand. 2-3/4" (70mm) x 11-7/16" (290mm) x 2-13/16" (71mm). Painted and plated finishes. Optional on DC2000 Series only.

DC4600 Series

Applications

Designed for light-duty applications, ideal for residences, offices and retail outlets.

Advantages

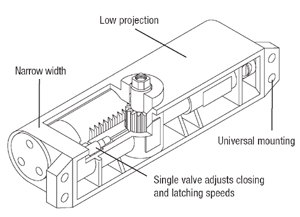

• Universal mounting.
• Valve adjusts for closing and latching speeds.
• Allows full 180° door opening.
• Low projection – just 2-7/8" (73mm).
• 2-year limited warranty.

Features

Spring
Sizes 2, 3, 4 and 5 available, non-adjustable.

Handing
Universal, non-handed.

Body
Cast aluminum.

Arm
Standard: steel main arm and tubular steel turnbuckle frame.

Spindle
Precision machined steel.

Piston
Precision machined steel.

Springs
Tempered steel.

Valves
Standard: 2 closing speed valves adjust closing speed and latching speed. Backcheck intensity valve buffers door opening after 70°.

Seals
O-rings.

Fluid
High lubricity hydraulic fluid standard.

Degree of Opening
Up to full 180° opening standard for regular, top jamb and parallel arm mountings, conditions permitting.

Power Adjustment Arm Bracket
15% ± (7-1/2%) adjustment standard.

Mountings
Standard: regular and top jamb.
Optional: paralled arm mounting.

Fasteners
Standard: machine screws and sheet metal screws are packed with all closers.

Warranty
Two-year limited.

Certifications/Compliance

UL/ULC
Listed for closers with non-hold open arms. This includes conformance to UL10C and UBC 72-1997.

Finishes
BHMA 600, 689, 690, 691, 693, 696.

DC6000 Series Door Closers

Applications

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.

Quality

More than meets the eye…The design of the DC6000 Series incorporates internal advantages engineered to provide consistent quality operation. Double O-rings, a new spring tube design, new arms and captured valves ensure longevity.

Security

Engineered to meet high security standards, the DC6000 offers a full array of security features. A new heavy-duty arm offers increased strength for high-use, high-abuse situations. Captured valves and optional Torx® security screws also assist in security situations by making the closer tamper resistant.

Key Advantages

• Heavy-duty forged arm
• Spring-adjust captured valves
• Self-drilling screws
• QUIK-INSTALL™ bracket
• Cast iron body • Retrofit plates
• Powder painted regular arms

Versatility
Conditions vary from job to job, but a top-quality product that is dependable, easy to install and versatile is a must. The DC6000 Series door closer is the solution. A variety of features makes this the choice for retrofitting, quick installation, and longevity. Corbin Russwin offers a wide variety of arms, tracks and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.

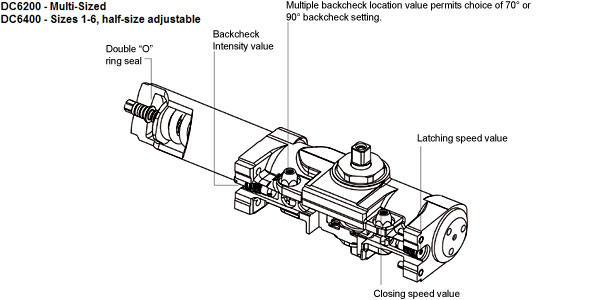

DC6200 - Multi-Sized
DC6400 - Sizes 1-6, half size adjustable

Features

Spring Power
DC6200 closers: multi-sized; fully adjustable sizes 1 through 6.

DC6400 closers: sizes 1 through 6; half-size adjustability.
For recommended sizes, see page 14.

Handing
Non-handed.

Body
Cast-iron case with seamless cold headed steel spring tube.

Arm
Standard: heavy-duty forged steel.
Arm options pages 8-10.

Spindle
Cold headed heat-treated steel.

Piston
Precision machined, heat-treated steel.

Springs
Chrome silicon wire.

Valves
Latching speed valve standard.

Closing speed valve standard.

Multiple backcheck location valve and backcheck intensity valve standard.

Delayed action valve optional. Delayed action preset for 20 seconds. Between 90° and 70° for all mountings. To order specify M71.

Seals

“O” rings.

Fluid
Standard: high lubricity extreme temperature hydraulic fluid.

Degree of Opening
Up to full 180° opening standard for regular, top jamb and parallel arm mountings, conditions permitting.

Power Adjustment Arm Bracket
15% adjustment standard.

Cover
Standard: non-metallic full cover.
Optional: slim cover; specify M76.
Optional: full metal cover; specify M73 x
hand.

Mountings
Standard: regular and top jamb.
Optional mountings available.

Mounting Bracket
QUIK-INSTALL™ mounting bracket standard.

Fasteners
Standard: self drilling screws.
Optional: sex nuts and bolts (SNBs); specify M54.

Corrosion Protection
Painted protective coating on all metal surfaces for use in corrosive
environments. To order specify M75.

Security Package
Includes heavy-duty parallel or regular arm, full metal cover and security Torx®
machine screws. Specify M87 x arm x
hand.

Warranty
Ten-year limited warranty. Refer to Corbin Russwin price book for details.

Certification/Compliance

Barrier-Free Code Compliance
The DC6000 Series Door Closers listed below conform to the maximum door opening force requirement for non-fire-rated interior hinged doors, according to:

Americans with Disabilities Act (ADA)
Complies with the Accessibility Guidelines for Buildings and Facilities, Section 4.13.11

ANSI
Meets A156.4, Grade 1.
Meets A117.1.
DC6200
DC6412
DC6210
DC6421
DC6220
DC6401
DC6411
These door closers are certified by Corbin Russwin Architectural Hardware to comply with the above standards when properly installed and (if applicable) adjusted, in regular arm, parallel arm and top jamb mountings.

UL / ULC / UL10c
Listed for fire and cycle requirements.

Standard painted finishes

For split finish of closer cover and arm, specify cover finish first, then arm finish (e.g., DC6200 x 625 x 689).

*Full cover available in 605, 606, 625 and 626 only.
