Rixson Specialty Door Controls
9100 Belmont Ave
Franklin Park, IL 60131
Tel: (847) 671-5670
Web site: http://www.rixson.com

Floor closers provide the best mechanical means of controlling a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This hanging means provides several important mechanical advantages:

• Fasteners on the door and frame are in shear rather than tension (as with hinges) and are less likely to pull out over time. This creates less stress on the frame assembly, prevents door sagging and allows the door to swing with less resistance from friction.

• A door supported in this manner relies on the strength of the floor to carry the weight, not the frame. This allows extremely heavy doors to be hung in an opening and lets any weight door swing with more efficient geometry. Doors hung on floor closers also allow for vertical adjustment throughout the life of the building to compensate for settlement.

• The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in efficiency compared to surface closers with exposed arms. A floor closer produces an 85% closing force to opening force ratio where surface closers are approximately 60% efficient. A floor closer is far superior in closing a door when weather conditions or building stack pressure are factors. Rixson® Heavy-Duty Floor Closers take this efficiency concept to an even higher level by utilizing helical torsion springs.

In addition to these important mechanical and door control advantages, floor closers are fully concealed to maintain aesthetic design of the opening and to prevent vandalism or tampering by unauthorized individuals.

How To Select Product

1. Offset vs. Center Hung Application

2. Size of Door (width, height, thickness)

DOOR MATERIAL

Door Thickness
1-3/8" 1-3/4" 2" 2-1/4" 2-1/2"
Weight-per-square-foot (in pounds):
Aluminum
3-1/2
Ash 4-1/2 5-1/4 6 6-3/4 7-1/2
Birch 3-3/4 4-1/2 5 5-3/4 6-1/4
Hollow Metal 6-1/2 6-1/2   6-1/2
Oak 6 7 8 9 10
Pine 3 3-1/2 4 4-1/4 5



Lead Lining Lead Thickness
1/64" 1/16" 1/8" 1/4"
Weight-per-square-foot (in pounds):
1 3-3/4 7-1/2 13-3/4

Tempered Glass Glass Thickness
  3/8" 1/2" 3/4"
Weight-per-square-foot (in pounds):
  5 8 9-3/4

Marble/Granite
Cladding
Thickness
Weight-per-square-foot
(in pounds):

*3/4"
10-1/2


Example: A two-inch-thick birch door has a square foot weight of five pounds. If the door has standard dimensions of 3'(width) x 7'(height), this equals 21 square feet. So, 5 pounds x 21 square feet = 105 pounds total weight.
                                                                                      *Consult factory for sizes greater than 3/4"

3. Expected Frequency of Door Operation

Application Daily Yearly
Large department store entrance 5,000 1,500,000 High
Large office building entrance 4,000 1,200,000
Theater entrance 1,000 365,000
School entrance 1,250 225,000
School restroom door 1,250 225,000
Store or bank entrance 500 150,000
Office building restroom door 400 118,000
School corridor door 80 15,000 Average
Office building corridor door 75 22,000
Store restroom door 60 18,000
Residential entrance door 40 15,000
Residential restroom door 25 9,000 Low
Residential hallway door 10 3,600
Residential closet door 6 2,200


Features

  • Floor closers are fully concealed to maintain aesthetic design of the opening.
  • Full weight of door is borne by floor closer, providing trouble-free operation and long life.
  • Doors up to 1,500 pounds are accommodated, allowing standard and heavy doors in a building to be hung by the same means.
  • Available offset or center hung to accommodate any installation.
  • Vertical adjustment provides for field adjustment of the door if required.
  • Specification of heavy panels on the door face with standard offset floor closer preparation available.
  • Full floor-to-ceiling concealment is offered for center hung doors, providing almost unlimited design flexibility.
  • Extended spindles available to accommodate any floor condition.
  • Offset models available 3/4" or 1-1/2" offset.
  • Offset models available for lead-lined doors.
  • Offset models available for fire door assemblies up to three hours.
  • Spring tension and closing speed are field adjustable.
  • Built-in fully adjustable hydraulic backcheck standard on 27 and 28.
  • Available in all standard architectural finishes.

Options

Selective Hold-Open (SHO)
Factory-installed on 27 & 28 Series closers. Hold-open may be turned on/off.

Automatic Hold-Open (AHO)
Available on certain series closers with or without dead stop. Preset at factory for specific degree of hold-open. Degree of hold-open cannot be changed, nor can closer be made into non hold-open.

Delayed Action (DA)
Provided on barrier-free installations. Permits door to remain ajar (at 70°) for up to 30 seconds. Operates by separate valve and can be shut off if not needed. Not available on closers furnished with cold weather fluid, and not recommended for exterior applications because of weather factors. (27 & 28 series only)

Physically Handicapped (PH)
To comply with guidelines established in the American With Disabilities Act, lighter opening forces are met if closers are ordered with a PH prefix. If 5 pounds of opening on interior doors is needed, simply order PH. If 8.5# of force is needed, specify Prefix PH and suffix 8.5#.

Be advised that lower opening forces mean lower closer forces. PH products should not be ordered for exterior doors or fire rated openings. Fire/Lifesafety openings take precedence over the convenience of ADA. Securing a building is also a major concern and a lighter closer may not be strong enough to secure a latch bolt in a strike. Use care when specifying PH products.

Cold Weather Fluid (CWF)
Should be considered in installations where ground temperature is constantly below +15°F. May be used in temperatures as low as -35°F.

Sealed Closer (SC)
Used where water contact may occur. Provides gasketing and a cover plate that are epoxied around the case with the closer inside. Not available for replacement closers unless cement case is also replaced.

Fire Rated
(F)
Used on labeled fire door requiring steel base pivot. PH with 3 pounds of opening force may not be used on fire doors.

(- 20 ), Smoke Doors, brass base pivots.

Specifications

Combination Floor Closer-Door Holder Packages

Absolute door control - top and bottom - with a single packaged system. For high traffic volume, entrance and exit conditions. Single source responsibility saves money, simplifies specification, and eliminates coordination of templates.

Combinations Available: Dependable Rixson® 25, 27, 28 and 30-40 Series closers – teamed with rugged Checkmate® No. 1, 8 or 9 Series overhead holders – eliminate door and frame damage caused by racking and twisting.

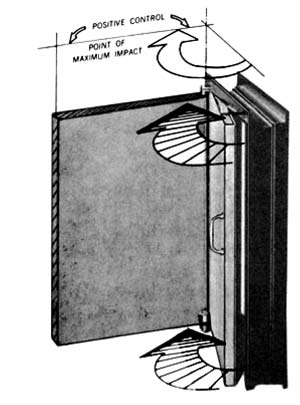

The combination 27/28 closer-holder package cushions and dead stops the door, top and bottom, at 85°, 90°, 95° or 105°. The hold-open function is controlled by the holder and will be approximately 5° to 7° less than dead stop desired. The 27, 28, 30 and 40 closer-holder combination is coordinated to dead stop at the same degree. The impact of opening is absorbed by the shock spring in the holder at the top, and the hydraulic backcheck and dead stop in the floor closer at the bottom of the door.

Suggested Specification
Floor Closer shall be Model 27 (offset hung) or Model 28 (center hung) and shall be available for labeled fire doors and lead-lined doors (offset hung) as well as regular doors. Closer to have separate and independent and adjustable valves for closing speed, latch speed and backcheck. Independent delayed action option to be available. Model to be available for physically handicapped access as required by building codes. Closer shall be available non hold-open, or selective hold-open at 85, 90, 95 or 105 degrees. Closer to have built-in dead stop to prevent door from swinging beyond required opening degree.

Floor Closers For Fire Door Assemblies
Offset hung floor closers are available for fire door assemblies up to three hours (“F” Series) or 20 minute (-20 Series), are UL listed and handed. According to NFPA 80, labeled fire doors up to 60" in height shall be provided with two hinges or pivots and an additional hinge or pivot for each 30" of door height. The distance between pivots may exceed 30". Specify quantity of intermediate pivots required. Product features and templating are identical to regular floor closers and intermediate pivots. Do not use PH closers on fire door assemblies.

For more information on specific Rixson Heavy-Duty Floor Closer products and accessories, please refer to the "Heavy-Duty Floor Closers" catalog available on the Rixson web site at: www.rixson.com/library/catalogs/
