QuietTile Acoustical Ceiling Tile

Searching for an acoustical ceiling tile product that improves speech privacy and reduces noise intrusion through a lay-in ceiling? Does your design require matching existing lay-in tiles? Consider Kinetics' QuietTile Acoustical Ceiling Tile.

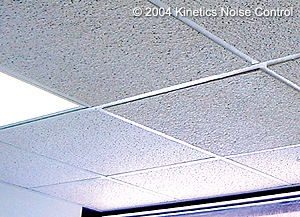

The Kinetics' QuietTile uses additional mass and sound damping to produce a composite ceiling tile designed to reduce sound transmission through a lay-in ceiling. The QuietTile sound control ceiling can be installed in a standard ceiling grid and can be selected to match most acoustical ceiling tiles. Kinetics bonds the composite viscoelastic damping layer and gypsum board to the back of a standard ceiling tile selected by the designer.

The QuietTile composite lay-in panel can be designed for a reveal 9/16" (narrow) grid or 15/16" standard grid. Tiles are available in 24" × 24" and 24" × 48" sizes.

Achieve sound control and speech privacy in a lay-in ceiling system where conventional ceiling tiles fail.

Composite ceiling tile designed for improved sound transmission loss.

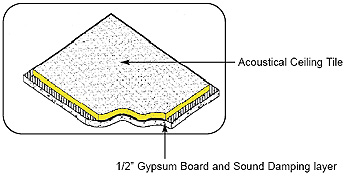

• Gypsum board
• Viscoelastic sound damping layer
• Ceiling tile face (can be provided to match existing ceiling tile)
• Available in nominal 2 ft. × 2 ft. or 2 ft. × 4 ft. sizes

Note: The Kinetics standard facing tile is Armstrong Cortega unless otherwise specified

Ceiling Attenuation Class (CAC), estimated 50* based on test of similar Model Embassy CAC 53. *Contact factory for test data. Results will vary based on selection of finish ceiling tile.

Class A per ASTM E84

• Conference Rooms
• Law Offices
• Medical Exam Rooms
• Rooms requiring improved speech privacy or noise reduction through the ceiling

Note: For achieving maximum noise reduction it is critical that noise "leaks" through the ceiling; supply/return vents and light fixtures be treated. Ask Kinetics for methods of treatment based on your ceiling design.

Select a suspension system for ceiling panel weights up to 2.5 lbs. per square foot.
