KB803 Noise Control Baffles

The heat sealed vinyl covering makes these baffles the perfect economical solution for noise and reverberation control in gymnasiums, multi-purpose rooms and other high ceiling spaces.

Standard sizes 24" × 48" up to 48" × 96"

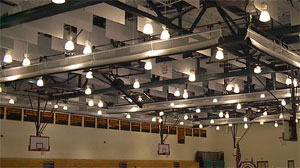

KB803 noise control baffles are an economical solution to reverberant noise problems in high ceiling areas such as cafeterias, gymnasiums and multi-purpose rooms. Used to reduce overall noise and reverberation levels, these baffles are suspended from the ceiling as vertical baffles or horizontal clouds.

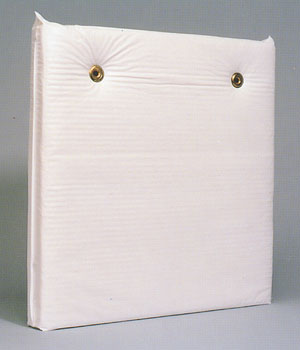

Model KB803 24" × 48" baffles are constructed with a 3 PCF fiberglass core which is encased in a fire retardant vinyl film cover. The vinyl is heat sealed on the edges to create an airtight seam. For ease of installation, each baffle has brass grommets along the edge. KB803 baffles are available in FDA accepted coverings. Suspension grommets can be sealed (optional) for clean room applications.

Noise control baffle for use in high ceiling areas to reduce reverberation levels.

• 1-1/2" thick 3 PCF fiberglass core
• Completely wrapped and heat sealed with a 3 mil vinyl film cover
• Available in a wide variety of colors and sizes (24" × 48" to 48" × 96")
• Two brass grommets are located on the top edge
• Acoustical Performance
• Sound Absorption per ASTM C423*

Sound Absorption per ASTM C423*

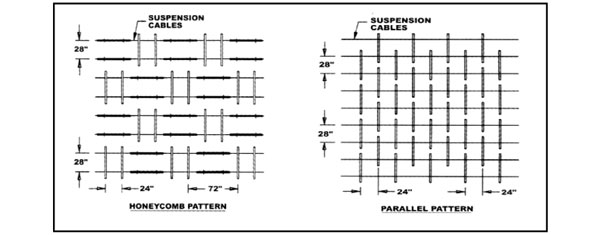

*Baffles tested in a typical suspended layout.

• Class 1 per UL-723
• Flame Spread – 15 or less
• Smoke Developed rating – 105 or less

• Multi-Purpose Rooms
• Cafeterias
• Gymnasiums
• Animal Kennels
• Indoor Play Areas

To be mounted following manufacturer's recommendations (See Kinetics' Product Installation Guide)

Larger baffles up to 48" × 96" available with 2" thick fiberglass core
