Model Iso-Grid Quick Connect Hanger

Application

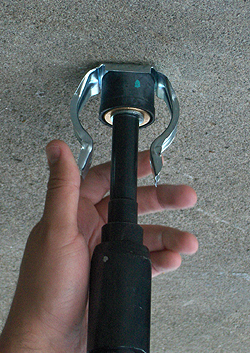

Secured to concrete, metal deck, or structural framing, Model IsoGrid Quick-Connect Ceiling Hanger incorporates a neoprene element to resiliently support one or more layers of gypsum board. Attachment can be made directly into concrete by powder-actuated fastener through the hanger (where loads and local code permits). A lag screw can be used to screw into wood joists. Wire can then be tied to the bottom of the hanger bracket through the built-in mounting holes. Gypsum board is then installed using either drywall ceiling grid or cold rolled and hat channel.

Benefits

Dramatic labor savings over conventional ceiling hangers
Meet code requirements while maximizing ceiling height
Various attachment methods allow for installation on a variety of ceiling structures
Easiest and quickest install of any ceiling hanger
Known deflection rates ensure performance under design loads
A built-in limit stop incorporated into the design ensures low cost and trouble free installation without acoustical short-circuit

Dual Deflection Neoprene Isolator

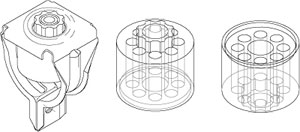

Kinetics Noise Control Model IsoGrid utilizes our specially designed Dual Deflection neoprene isolator with internal bulge areas. These internal bulge areas allow the Dual Deflection neoprene element to achieve greater deflections than similarly sized elements while maintaining lateral stability. Greater deflection translates to greater performance for your noise control ceilings.

Selection Guide

Model	Maximum Capacity (lbs.)	Maximum Deflection (in.)	Layers of Drywall*	Dot Color
40	41	0.20	1	White
105	106	0.20	2	Green
160	158	0.20	3	Red

*Based on IsoGrid 4'x4' spacing

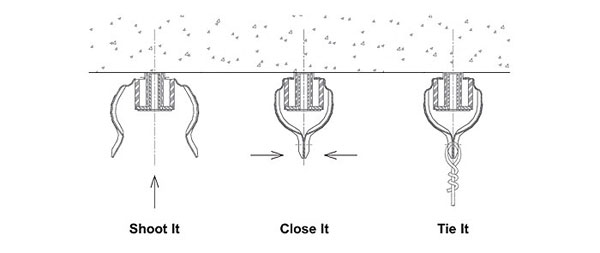

3 Step Quick-Connect Installation
