PWX - Non-Progressive Dry Plate System

Description
Using the same non progressive extruded aluminum attachment system as our NWX4 for aluminum composite material, this wet seal plate system is easy to specify, easy to order, and easy to install.

Where panel sizes or small quantity requirements may render aluminum composite too costly, PWX is a great alternative.

Features

Wet Seal System
Non-Progressive System
Continuous attachment system eliminates the need for horizontal sub-framing
Useful where panel sizes do not allow for efficient use of ACM

Applications

Wall Cladding
Soffit Cladding
Fascias
Screen Walls
Beam Cladding
Canopies
Vestibules

Materials & Finishes

High Performance Paint
Anodized Aluminum
Brushed Aluminum
Copper
Zinc
Stainless Steel

Technical
Material Thickness:

PWX – 80 = 0.080”
PWX-100 = 0.100”
PWX-125 = 0.125”
System Depth = 1 1/2”
Joint Width = 1/2”
Maximum Panel Height = 70”
Minimum Panel Height = 8”
Maximum Panel Length = 240”
Minimum Panel Length = 12”

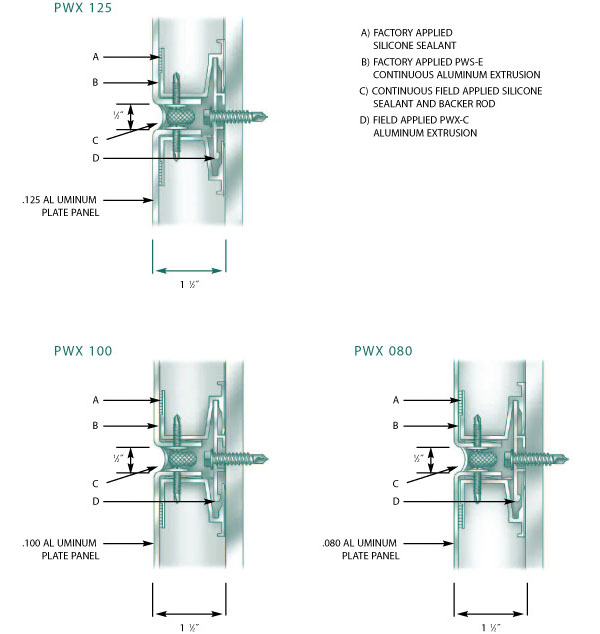

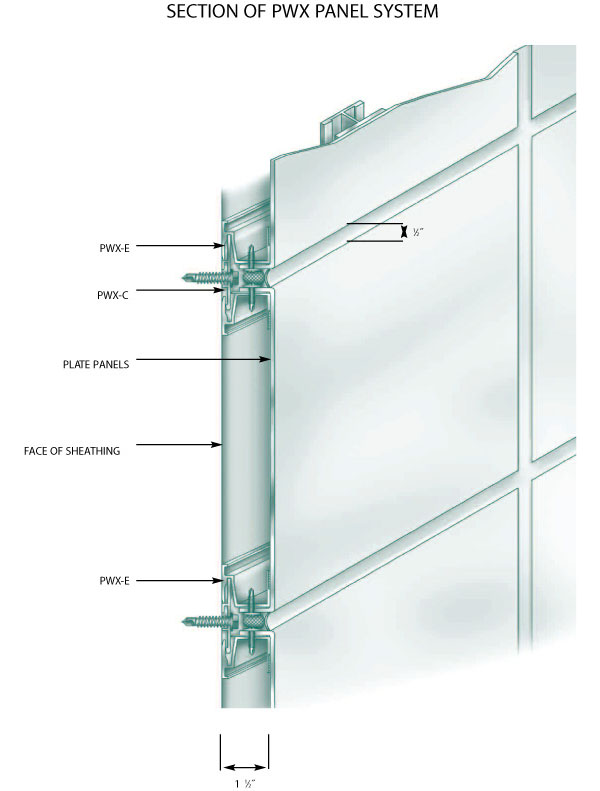

System Details
