RWC Series - ACM Rout & Return Wet Seal Clip System

Description
Rout and return wet seal systems utilizing intermittent clips.

The RWC system is best suited for small, detailed areas with multiple termination points such as entry vestibules, column covers, beam cladding, canopies, and decorative features.

Features

Wet Seal System
Clip System is versatile and can be used for all ACM applications
Can be shipped flat with "loose" clips to save on shipping costs
Excellent for curved applications

Applications

Wall Cladding
Soffit Cladding
Fascias
Screen Walls
Beam Cladding

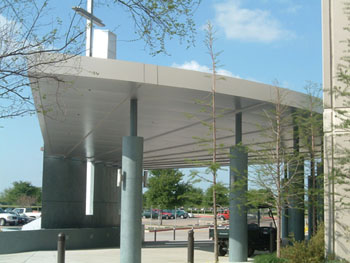

Canopies
Vestibules
Columns

Finishes

High Performance Paint
Anodized Aluminum
Brushed Aluminum
Zinc
Stainless Steel
Copper

Technical

4mm Aluminum Composite Material
4mm Aluminum Composite Material
System Depth = 1 1/4”
Panel Joint Width – 1/2”
Maximum Panel Height = 60”
Minimum Panel Height = 8”
Maximum Panel Length = 238”
Minimum Panel Length = 12”

System Details
