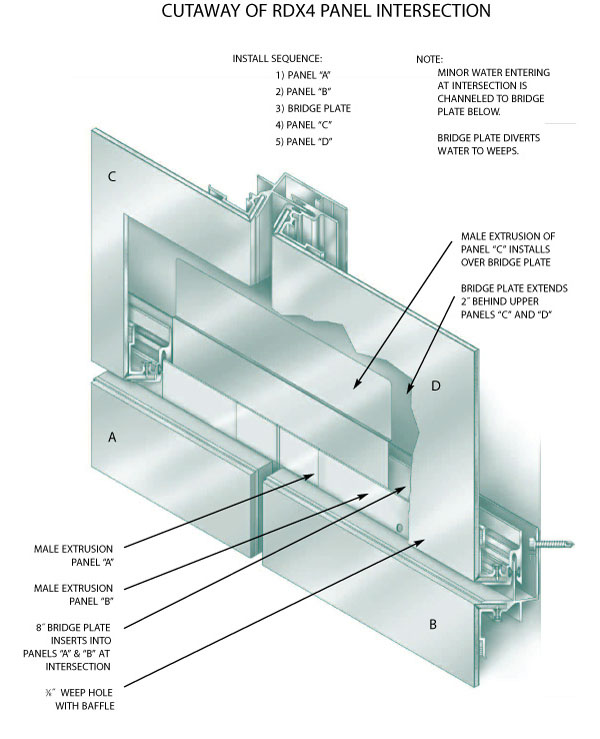

A rout and return dry seal aluminum composite cladding system, RDX4 is suitable for most wall cladding applications where a dry joint with no exposed sealant is desired. RDX4 uses a concealed bridge plate at panel joint intersections, and does not require exposed sealant to seal intersecting panels.
Extrusions are designed to eliminate horizontal subgirts, and provide positive attachment of panel to structure while allowing for thermal movement.
- Dry Seal System (no field sealing of panel joints)
- Continuous aluminum extrusion attachment system eliminates the need for horizontal sub-framing
- Meets ASTM standards for water & air infiltration and wind loading

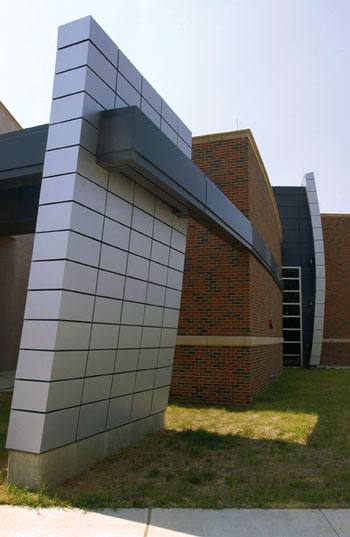

- Wall Cladding
- Soffit Cladding
- Fascias
- Screen Walls
- High Performance Paint
- Anodized
- Brushed Aluminum
- Zinc
- Stainless Steel
- Copper
- 4mm Aluminum Composite Material
- System Depth = 2.25”
- Panel Joint Width = ½”
- Maximum Panel Height = 60”
- Minimum Panel Height = 8”
- Maximum Panel Length = 238”
- Minimum Panel Length = 12”
