Industry Standard Shelters ICON manufactures all of the shelters that have become standard in the industry – hexagons, octagons, squares, hipped rectangles, gabled rectangles, and curved roof barrel vault shelters. These shelters are available in one foot increments (except for Barrel Vault shelters, which are available in 3' increments) and a variety of roof pitches. Many of the industry standard shelters are available with two and three tier roof configurations. See the Options and Accessories page for additional products.

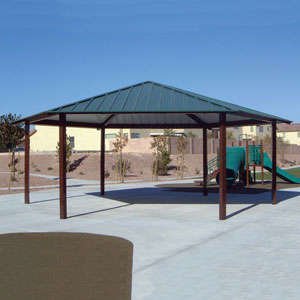

Hexagon Shelters
Sizes available: One foot increments from 12' to 72' Standard roof pitch: 4:12 Optional roof pitches: 5:12 to 12:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

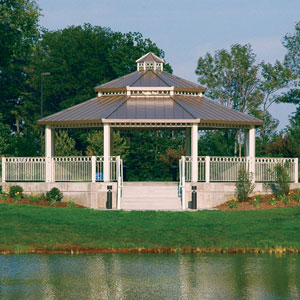

Octagon Shelters
Sizes available: One foot increments from 16' to 72' Standard roof pitch: 6:12 Optional roof pitches: 4:12 to 12:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

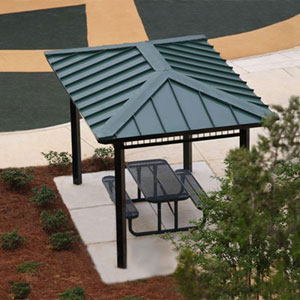

Square Shelters
Sizes available: One foot increments from 12' to 60' Standard roof pitch: 6:12 Optional roof pitches: 4:12 to 12:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

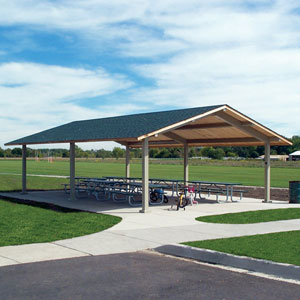

Gable Rectangle Shelters
Sizes available: One foot increments from 12' to 52' Standard bay size: 20' Standard roof pitch: 4:12 Optional roof pitches: 5:12 to 12:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

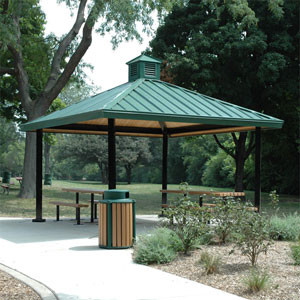

HIP Rectangle Shelters
Sizes available: One foot increments from 12' to 52' Standard bay size: 20' Standard roof pitch: 4:12 Optional roof pitches: 5:12 to 12:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

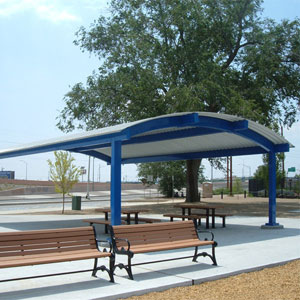

Barrel Vault Shelters
Sizes available: One foot increments from 12' to 52' Standard bay size: 20' Standard roof radius: 10'-0" Roof decks: 24 ga. pre-cut painted metal roof panels ICON Shelter Systems Inc. |
