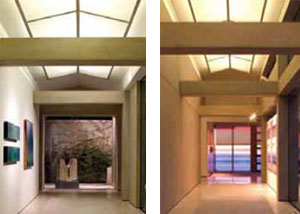

Motor System (FTS) Motorizing skylight and angle openings with an FTS allows complete control, using solar shading or blackout fabrics. Fabric tension systems hardware consists of dual motorized tubes, fabric secured between 2 tubes with cable or industrial webbing.
The controller operates each motor independently to maintain the
dynamic (moving) tension. The final (static) tension is then set to
eliminate sagging when the fabric is fully closed.

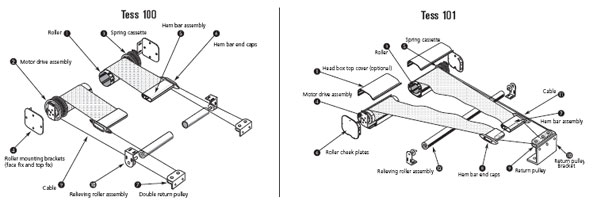

The Tess 100 System is a wire guided tension blind suitable for
internal use on horizontal and sloping glazing. I. It has a single fabric roller incorporating the motor and tension mechanism and is supplied with universal mounting brackets suitable for top
or back fixing and one continuous tension cable for ease of fitting.
The Tess 101 System is a wire guided tension blind suitable for
internal use on horizontal and sloping glazing. It is specifically designed for right-angled triangular areas. It has a single fabric roller incorporating the motor and tension mechanism and one continuous tension cable for ease of fitting.

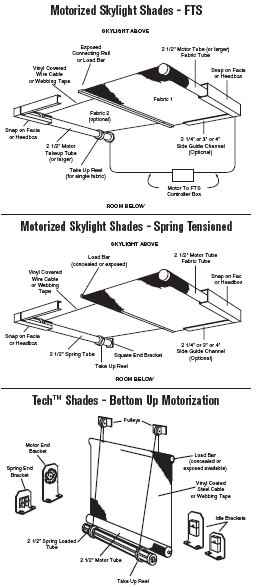

Dual Tube application using heavy
duty spring mounted in take up
tube and motorized fabric tube.
Dual tube application using heavy
duty spring tube and motorized
tube. Take up tube can be mounted
at bottom with fabric tube or at top
of opening.
Single tube designs use tension
springs with the load bar with
pulley guiding cable to take up
reels on motor tube.
|
