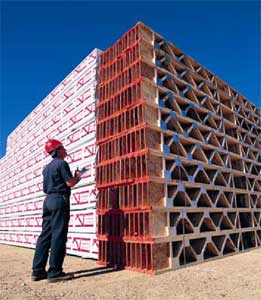

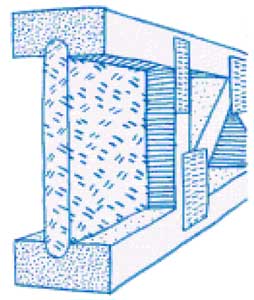

TrimJoist TrimJoist is the marriage of an open web floor truss and a trimmable, wooden-I joist, bringing the best features of each to the relationship. As the name TrimJoist indicates, our product can be trimmed on the construction site for a custom fit. No more custom made floor trusses! TrimJoist floor truss products are used by discriminating builders, contractors, and remodelers and specified by leading architects, engineers, and designers. The TrimJoist can be quickly incorporated into any house plan and is the first step to a floor system with Superior Support.
Problem: Subfloor cannot expand and contract. All wood fiber subfloor materials need to be installed with sufficient room to expand and contract as the ambient temperature and humidity changes. Solution: TrimJoist provides a wide surface so that framing tolerances may be eased enough to eliminate this problem.
Problem: Poor application of underlayment. Many contractors use a composite underlayment board in areas that require carpeting. This underlayment is nonstructural, but provides a very smooth surface. Solution: More often than not, the underlayment is attached only by nails. Over the course of time, these nails begin to rub against the underlayment causing squeaks. We suggest that the underlayment be attached with both screws and glue with the same care as was taken with the subfloor.
Problem: Subfloor not adequately attached to joist system Load Tested Problem: Subfloor not adequately attached to joist system Conventional 2x joists or narrow flange I-beam type wood products do not provide sufficient surface for good nailing technique. Solution: The full 3-1/2" wide TrimJoist nailing surface allows for sufficient nailing and optional gluing of the subfloor.
Problem: Joist system not stiff enough In addition to the stationary loads on a floor, each step a person takes places a small impact load on the supporting joists. Over the course of time, this seismic stress can cause the whole system to become "loose." Solution: TrimJoist products are not only designed to withstand these impact loads they also provide for a strong-back mechanism which can disperse these loads more evenly through the floor system. If you are an architect, building designer, contractor or supplier, you may also E-mail us your AutoCAD .dwg format plans. We will provide you a complete layout with all joists, beams and hangers specified. You may E-mail your plans to: Tony Atkins or send them via UPS or FedEx to: TrimJoist
|
