inox Stainless Steel Railing Systems

General Information
inox stainless steel railing systems are designed to comply with all applicable building codes, technical standards and safety requirements in North America.

Range of Application
Single or multi-dwelling units, office and industrial buildings, schools, health care and assisted living facilities and all other public buildings.

Material
Manufactured from high quality stainless steel that is corrosion resistant, for interior and exterior applications and low maintenance.

Stainless steel: AISI 303/304 surface preparation #6 (240 grain) flat finish.

Nylon Cover Caps:Ultramid nylon PA6 by HEWI nylon in yellow, red or dark blue.

Infill Panels: Perforated stainless steel, tempered glas or other materials (supplied by HDI).

Wood top rail: (optional); natural beech, birch, oak or maple - may be stained on request.

Design
The inox system is furnished with multi-line horizontal rods or infill panels of perforated stainless steel or tempered glass.  Clamping knobs and fastening rose caps may be stainless steel or HEWI nylon in red, yellow or dark blue.  Curved rails and other custom designs can be accommodated by consulting company technical staff.

Quality
inox railing systems are manufactured with the latest technology, designed with the aid of computers and individually inspected before shipment.

Installation
The systems are manufactured at HDI headquarters in Lancaster, Pennsylvania and shipped in pre-assembled sections to maximize the ease of installation. Installation is available for either union or non-union projects.

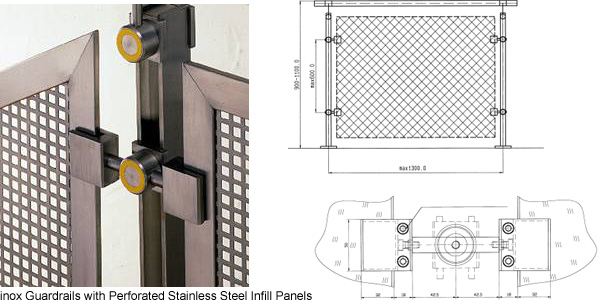

inox  Guardrails with Perforated Stainless Steel Infill Panels

Materials: High quality stainless steel, AISI 303/304
Finish: #6 (240 grain) flat finish
Top rail: 1-9/16" (40 mm) outside diameter; tube wall  5/64" (2 mm)
Posts: open pairs of flat bar stainless steel, 2" (50 mm) by 1/4" (6 mm); maximum spacing = 51-3/16" (1300 mm)
Total height: 35-7/16" (900 mm), 39-3/8" (1000 mm) or 43-7/16" (1100 mm)
Panel Holders: accommodate panel thickness 3/8" (8 mm) to 1/2" (13 mm); connected to vertically adjustable clamping knobs; maximum vertical spacing 23-5/8" (600 mm)
Clamping knobs: Stainless steel with caps of stainless steel or HEWI nylon.
Infill Panels: perforated stainless steel with brushed surface rectangular frame; mesh arrangement 3/8" (10mm) squares in 5/8" (15mm) straight row centers; frame 1-3/4" (45mm) wide by 3/8" (10mm).

inox  Guardrails with Stainless Steel Horizontal Infill Rails

Materials: High quality stainless steel, AISI 303/304
Finish: #6 (240 grain) flat finish
Top rail: 1-9/16" (40 mm) outside diameter; tube wall  5/64" (2 mm)
Posts: open pairs of flat bar stainless steel, 2" (50 mm) by 1/4" (6 mm); maximum spacing = 51-3/16" (1300 mm)
Total height: 35-7/16" (900 mm), 39-3/8" (1000 mm) or 43-7/16" (1100 mm)
Clamping knobs: vertically adjustable on posts, knob front of stainless steel or HEWI nylon in colors yellow (12), red (33) or dark blue (50)
Infill Rails:  3 to 7 stainless steel rails; 5/8" (15mm) diameter, 5/64" (2mm) tube thickness.  Infill rails 5/8" (15mm) are fitted during installation radius = 1-3/4" (45mm).


Post with surface floor fastening

Recommended fastening material
chemical anchor M12 = 1/2" (or expansion anchor M12)

Post with surface sidewall fastening

Recommended fastening material
chemical anchor M12 =1/2 " (or expansion anchor M12)

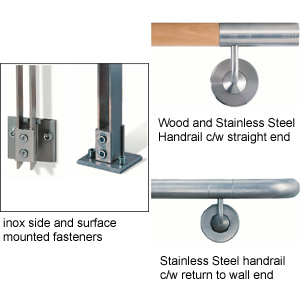

inox  Stainless Steel Handrail

Materials: High quality stainless steel, AISI 303/304
Finish:  #6 (240 grain) flat finish
Dimensions: 1-9/16" (40 mm) outside diameter; tube wall  5/64" (2 mm)
Supports: elbow or straight, 1/2" (12 mm) diameter; maximum spacing 66-15/16" (1700 mm)
Fastening base: 3-1/8" (80 mm) diameter; cover cap available in stainless steel or HEWI nylon in yellow (12), red (33) or dark blue (50)

Code compliance: inox handrails meet ADA and all applicable building code requirements. Clear space to wall is 1-1/2" (38 mm)

inox  Wood and Stainless Steel Handrail

Materials: Natural wood straight tubes. Bends, connectors and supports made of high quality stainless steel, AISI 303/304
Wood finish:  Natural beech, steamed and kiln dried (wood options are available)
Steel finish:   #6 (240 grain) flat finish
Dimensions:  1-9/16" (40 mm) outside diameter
Supports:   elbow or straight, ½" (12 mm) diameter; maximum spacing 51-3/16" (1300 mm)
Fastening base: 3-1/8" (80 mm) diameter; cover cap available in stainless steel or HEWI nylon in yellow (12), red (33) or dark blue (50)

Code compliance:  inox handrails meet ADA and all applicable building code requirements. Clear space to wall is 1-1/2" (38 mm)
