HELO Sauna & Steam
575 East Cokato Street
Cokato, Minnesota 55321
Tel: (320) 286-6304
Fax: (320) 286-2224
E-mail: helo@saunatec.com
Web site: http://www.helosaunas.com

For over 40 years, more architects have specified HELO than any other.

Helo Sauna Heaters

The world’s most advanced heaters are from Helo!
Among the reasons today’s Helo heaters can deliver a better heat with greater efficiency is our larger rock capacity with more of the rocks in direct contact with the heating elements. More rocks means a softer, more gentle heat and the ability to create soft, comfortable steam.

The worldwide trend in sauna bathing is lower temperatures and higher humidity. With Helo’s sauna heater designs, the ultimate sauna bath is created: even-tempered soft heat rising from the rocks, accompanied with soft steam created by sprinkling water on the rocks. The user creates the environment he or she prefers — whether it be hot and dry, or lower temperatures with more humidity.

Helo heater styling is sleek and contemporary. All Helo heaters are UL listed for trustworthy use and superior quality, are easy-to-operate, have triple walls for safety and are crafted using a variety of non-corrosive metals and two-toned baked enamel finish. The name Helo means years and years of attractive dependable service.

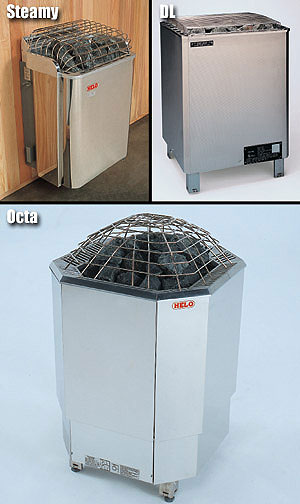

The Steamy Heater Series
Models: SA 21T and SA 30T
Perfect for personal size saunas or two person saunas. Easy to use, side mounted, reversible controls. Timer includes 9-hour time delay feature. Includes 25 lbs. of rock. Available in 120V or 240V.

Models: S0-BE and SO-S (4.5, 6.0, and 8.0 kW)

Wall mounted or with optional floor stand
66 lbs. of rocks (50 lbs. with 4.5kW)
Symmetrical construction for a finished look on all four sides (Ideal for saunas with full-length windows)
Use with separate controls (Digi II, MB, or ME Series)
Built-in controls mounted at a higher level on the left or right side for easy access and visibility. Timer includes 9 hour time delay feature.
Stainless steel or baked on enamel painted exterior
Specify SO-”D” for digital version

“Deluxe” (DL) is a “Helo Classic”
Model: DL
Freestanding Helo DL heaters have been the standard of the industry for more than 20 years. Designed for large, commercial-sized sauna rooms; use with separate control panels.

29”H x 20”W x 19”D
Floor model
Designed for rooms from 390 to 950 cu. ft.
Includes 132 lbs. of vulcanite rocks
Remote control panel
Stainless steel exterior and junction box
From 10.5kW to 14.4kW

Octa Heater Series
Model: Octa (10.5, 12.0, and 14.4 kW)
Helo’s new eight sided, floor-standing heater brings outstanding design and superb performance to larger saunas. Finished on all sides, the heater can be placed in the middle of a sauna, in a corner, or mid-wall. Its 132 pound rock capacity provides soft heat, soft steam and extremely uniform temperatures. Available in 10.5, 12.0 and 14.4 kW. Floor standing. Use with separate control HSC Series and with separate contactor box.

Helo Sauna Controls
Helo controls offer today’s best technology

Offering both mechanical and programmable/digital technology, Helo controls are state-of-the-art, reliable and very friendly to the user. Whether built into the heater or wall-mounted, Helo controls are compact and attractive.

All Helo heaters and controls are UL listed and now carry the ISO 9001 certificate of quality assurance. For years, this certification has been the international symbol of quality assurance in Europe. Now it has come to be similarly recognized in North America.

Digi II Control

The Digi-II can be surface mounted or flush mounted. Features include: light switch, ventilation fan switch, clock, set operating time and time remaining, set temperature and actual temperature, and 24-hour programmability. The control has four “user memory buttons” for easy return to past user settings. Unique to the Digi-II is the “Saunasmart” function — a feature where the control remembers the amount of time needed to reach a desired set temperature (when in delayed start mode). When flush mounted, the control is 6"H x 5"W x 1/4"D. When surface mounted the control is 1"D. No separate contactor box is needed. For use with SO-D (digital) heaters.

Steamy Control
Designed for safety and convenience, the Steamy control is used only with the Steamy heater. The control panel includes: timer, thermostat with sensing probe, light switch, and three knobs for selecting “traditional sauna”; “soft sauna” with lower temperature; “steamy” with sauna heater and steam generator activated. Surface mounted; 95/8"W x 8"H x 3"D.

ME-1T Control
Control contains on/off switch for sauna light, 1-hr. timer with 9-hour pre-set, calibrated thermostat with sensor, and indicator light. Surface mounted, 85/8"H x 95/8"W x 4"D. For use with SO-BE series heaters.

MB1T Control
Control includes 60-minute timer, light switch, and thermostat. Recessed/flush mounted. Rough-in size: 63/4"H x 83/4"W x 33/4"D. For use with SO-BE series heaters.

MB1LT Control
Same as MB1T but without internal contactor. For use with SO-BE series heaters. Used only for heaters 6 kW and less.

HSC-9 Control
Sleek, flush mounted design with satin stainless steel face plate. Control has 60 minute timer with nine hour time delay (“9 + 1”), thermostat, light switch and indicator light. For use with Helo floor standing heaters. 41/2"W x 10"H x 3/16"D. Separate contactor box needed.

HSC-60 Control
Nearly identical to the HSC-9 control except there is no nine hour time delay feature (standard 60 minute timer).

HSC-Club Control
Similar to the HSC-9 control except in place of the timer is an on/off switch for continuous use. To be used only in commercial saunas having an attendant on duty.

Sauna Accessories

Enhance your sauna experience with handsomely made accessories. Crafted of the finest materials, they’ll add years of enjoyment to your sauna. All sauna packages include standard accessories of thermometer, wood bucket, wood ladle, light, headrests, backrests, duckboards, and heater guard rail.
