O'HAGIN'S, INC.
Corporate Office & West Coast
Manufacturing Facility
210 Classic Court
Rohnert Park, CA 94928
Toll Free: (800) 394-3864
Tel: (707) 303-3660
Fax: (707) 588-5772

Midwest Manufacturing Facility
Omaha, NE  68128
E-mail: service@ohaginvent.com
Web site: www.ohaginvent.com

East Coast Manufacturing Facility
Lakeland, FL 33803
E-mail: service@ohaginvent.com
Web site: http://www.ohaginvent.com

O'Hagin's makes attic ventilation products to support all clay and concrete tiles including those manufactured by the following companies:

• Altusa
• Auburn
• Bartile
• Cedeksa
• Claymex
• Columbia
• Deleo
• Eagle
• Entegra
• Gladding McBean
• Hanson/Pioneer
• Ludowici
• MCA
• Monier
• Redland
• Santa Fe
• Unicrete
• US Tile
• Vande Hey Raleigh
• Westile

Custom vents can be designed for other tiles. The vents are field painted by the roofing contractor to blend with the selected tile color. Contact O'Hagin's for use with specific tiles (800) 394-3864 or for detailed installation instructions.

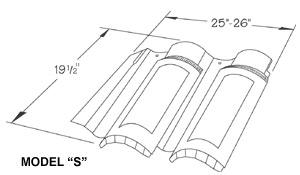

MODEL "S"
NFVA* - 97.50 sq. in. (629.0 sq. cm.)
WEIGHT PER VENT
GALVANIZED 26 ga
      • 6.00 - 6.50 Lbs, (2.24 - 2.43) Kg
ALUMINUM .032
      • 3.25 - 3.75 Lbs, (1.21 -1.40) Kg
COPPER 16 oz
      • 9.00 - 9.50 Lbs, (3.36 - 3.55) Kg

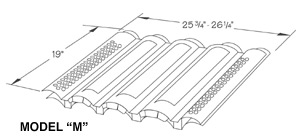

MODEL"M"
NFVA* - 86.25 sq. in. (556.5 sq. cm.)
WEIGHT PER VENT
GALVANIZED 26 ga
      • 7.00 - 7.50 Lbs, (2.61 - 2.80) Kg
ALUMINUM .032
      • 4.00 - 4.50 Lbs, (1.49 -1.68) Kg
COPPER 16 oz
      • 9.00 - 9.50 Lbs, (3.36 - 3.55) Kg

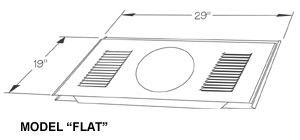

MODEL "FLAT"
NFVA* - 98.75 sq. in. (637.1 sq. cm.)
WEIGHT PER VENT
GALVANIZED 26 ga
      • 7.50 Lbs, (2.80) Kg
ALUMINUM .032
      • 4.00 Lbs, (1.49) Kg
COPPER 16 oz
      • 10.50 Lbs, (3.92) Kg

*Net free ventilation Area.

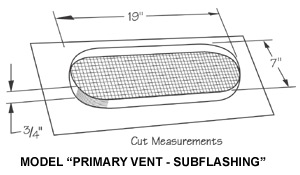

PRIMARY VENT - SUBFLASHING
WEIGHT PER VENT
GALVANIZED 26 ga
      • 1.25 Lbs, (0.47) Kg
COPPER 16 oz
      • 2.00 Lbs, (0.75) Kg

Product Description

O’Hagin’s line of vents for concrete tile is a two-piece system that’s competitively priced, easy to install, wind-resistant, and includes no toxic lead or plastic.  O’Hagin, Inc. uses the button lock process --- meaning no spot welding --- thereby reducing the risk of oxidation.  Our vents contain no plastic or mastic parts which can crack or fail over time.

O’Hagin’s vents are available in 26 gauge, G90 galvanized steel, .032 aluminum or 16 oz. copper.  Most vents are field painted by the roofing contractor to coordinate with the roof tile color.

Our individual dies are designed to match all styles of tiles from every major manufacturer.  We produce more than 60 profile-specific styles, each available in galvanized steel, aluminum, or copper.  All models are thoroughly tested, easy to install, and remain completely maintenance free.

O'Hagin's, Inc. offers free technical support for the selection, design considerations and installation of our roof vents. Our trained personnel can help right over the phone - (800) 394-3864.
