Ray-Bar Engineering Corporation

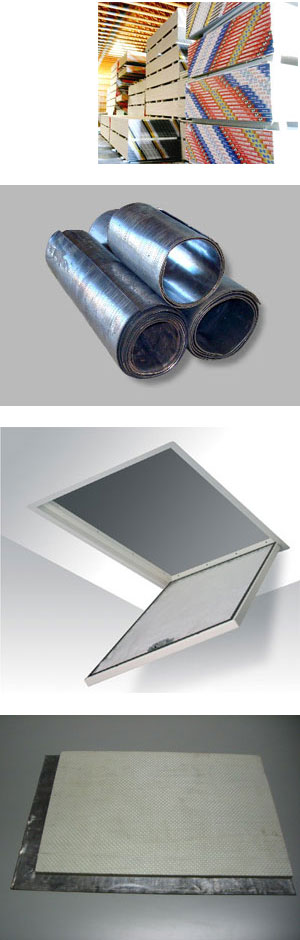

RAY-BAR U.L. LISTED LEAD BACKED GYPSUM DRYWALL / WALLBOARD Type RB-LBG is furnished as 5/8" and 3/4" Fire code gypsum board meeting Classification ASTM C 36, with 99.9% pure lead sheet meeting Federal Specification QQ-L-201 f, Grade C, factory laminated under pressure to the back side of the gypsum panel. Shielding accessories for installation include a 2" wide lead batten strip for vertical joints and corners along with lead discs for screw-head or nail-head covering of fastener penetrations on metal or wood stud installations, and sheet lead for backing and shielding of cut-outs for electrical, plumbing, medical gas, HVAC or other penetrations. Sheet lead backing must be equal or greater value as the lead in the wall partition that penetration occurs in. LeadLined Access Panels are also available for safe and convenient shielded wall or ceiling access. For listing of 17 Ray-Bar In-Stock lead thickness' available, see RAY-BAR Sheet Lead Thickness Chart. For specifications, see RAY-BAR LEAD BACKED DRYWALL SPECIFICATION. RAY-BAR's U.L. listed Fire-rated lead backed gypsum wallboard (RB-LBG) is available as U.L. Classified to U.S. and Canadian Safety Standards (See complete marking on product) and approved in 24 unique wall partition designs and many combinations on over 7 different wall board types where two or more protective aspects are required such as x-ray protective/fire-resistant and additionally moisture-resistant, mold-resistant, abuse-resistant, security or other applications available as required or specified by your project architect, or CONTACT US directly for additional proprietary information. RAY-BAR fire rated lead backed gypsum wallboard is typically available in only one day or next working day and can also be delivered directly to your hospital facility or medical center project anywhere in the United States, Canada, South America and world-wide. RAY-BAR is an active member of the National Fire Protection Association, the American Society of Healthcare Engineering and the Society of Fire Protection Engineers and will assist architects, builders and safety code officials with evaluating, selecting, specifying and designing proper fire-resistant materials, products, designs, partitions and assemblies. Regulatory authorities, code enforcement personnel and responsible builders value the UL mark and UL's experience as a leader on safety issues. With public safety at the heart of UL's mission, UL acts as a safety resource and advocate for proper building and construction material safety code compliance. With 110 years as one of the world's leading product safety testing and certification organizations, Underwriters Laboratories (UL) is synonymous with safety. Its UL Mark is the most recognized and trusted symbol of safety in the world, and Ray-Bar is proud to have earned the right to bear the UL mark on its products. Ray-Bar is also proud to be the original designer and manufacturer of successfully tested, certified and genuine UL labeled and code compliant fire-rated lead backed gypsum drywall for 1 hour and 2 hour rated radiation shielded walls and partitions, exclusively for use in medical and hospital x-ray diagnostic imaging applications. At Ray-Bar we truly believe in "Radiation, Fire and Public Safety through strict and knowledgeable code compliance and enforcement". Always insist on proper testing, third party certification, strict code evaluation and proper labeling information on all of your projects x-ray shielding materials and assemblies. This is another clear reason why RAY-BAR's 65 year mission statement and operational motto is: "When protection is required, there is no substitute for skill and experience". RAY-BAR is a proud member of the U.S.Green Building Council and the Canadian Green Building Council and will gladly assist architects and builders on LEED materials and product compliance points for their U.S. and Canada projects and meet current IBC, AIA and RAIC standards. * Lead backed fire-resistant treated plywood, Lead backed bullet resistant boards, Lead-Laminated Steel or Aluminium and other lead laminated panel products also available. Please see RAY-BAR's OTHER PRODUCTS or contact RAY-BAR directly for further information and options. Interlocking Lead Bricks 1-1/2",2",2-1/2" and 3" thick for stackable vertical wall barriers and/or Flat Lead Plates 1/2",3/4" and 1" thick for bolt-on "anchor-to-wall" retro-fit or underside of concrete ceiling anchor attachment available for heavy lead shielding requirements in medical linear accelerator / radiation oncology / cancer therapy / Tomotherapy / Gamma Knife / Proton Beam / HDR or other high energy radiation shielding applications. Borated Polyethylene panels are also available "good in stock" for thermal neutron and fast neutron shielding of high-energy Linear Accelerator facilities. All calculations for lead requirements should be determined by a qualified health radiation physicist or radiation "expert" as defined by NCRP or ICRP and currently recognized by the state in which the job occurs. Please see DIAGNOSTIC RADIATION SHIELDING CONSIDERATIONS for more information. "Over 65 Years of Manufacturing Excellence" |
