The Axiom Building Perimeter System allows you to regain aesthetic control at the building perimeter.
This perimeter solution accommodates the transition between the interior of a building’s perimeter and the ceiling plane.
It is a pre-engineered solution that integrates multiple functions:
- Drapery pockets
- Air distribution
- Changes in ceiling elevation

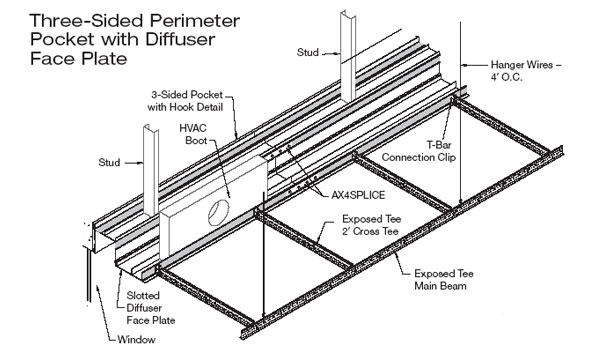

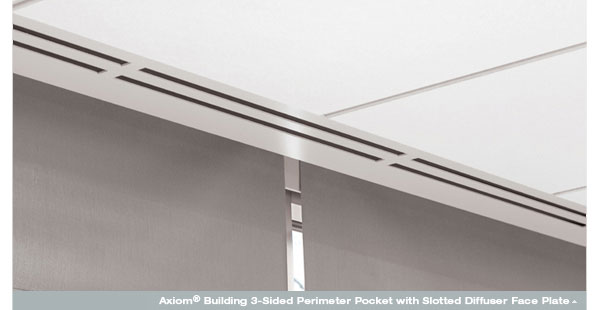

The isometric drawing below details the Axiom Building Perimeter System seen in the photo above.
Perimeter Pocket
Aluminum extrusion that forms a clean, two- or three-sided pocket that accepts a T-Bar Correction Clip and Splice Plate which provides positive mechanical lock with no visible fasteners.
Perimeter Pocket with Extension
Pre-engineered Extension component allows design flexibility for larger sized perimeter pockets and ceiling elevation changes, fully integrates with perimeter pocket.
Perimeter Pocket with Diffuser Face Plate
Pre-Engineered Diffuser Face Plate allows for full integration with the perimeter pocket component and can be slotted to provide air distribution at the perimeter.
- Pre-engineered solution that saves design and specification time
- Simplifies installation at the perimeter - one contractor can install ceiling system and perimeter
- Applications can be selected via AutoCAD and plugged into plans
- Reduces risk vs. conventional drywall framing
- Factory-finished extruded aluminum components for consistent quality
- Fully integrates with Armstrong acoustical and drywall suspension systems
- Easier jobsite coordination for general contractor
|
