Product Presentation:

Add Flair & Functionality to your Entrances

Feeney is excited to introduce the new LightLine^® canopy products manufactured by Polymer Kunststoffe GmbH of Germany. LightLine^® canopies combine stainless steel, aluminum and acrylic components into three, modern, eye-catching designs (Curve, Arch & Gable) that are visually and functionally attractive—convincing in even the smallest details. The canopies are sold in easy to assemble, easy to order kits with durable, weather-tough, brushed stainless steel support brackets, UV resistant acrylic panes, integrated aluminum rain gutters and all the necessary attachment hardware. Kits come in a variety of sizes with clear or frosted pane finish options, and the special, patented Click-Lock pane attachment feature makes installations a breeze without having to drill holes through the acrylic pane. Plus, our experienced Feeney staff is always ready to assist with product selection and technical support.

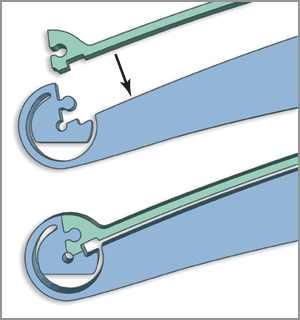

The patented Click-Lock system eliminates need to drill holes in acrylic panel and makes installation of panel into the stainless frame a snap.

• Easy-to-Install Kits
• 3 attractive, eye-catching designs available in a variety of sizes
• Slim, brushed stainless steel support brackets
• 4mm (5/32 in) thick acrylic panes in clear or frosted
• Lightweight and easy to handle
• Patented Click-Lock feature for easy installation
• Weather and UV resistant components
• Integrated aluminum rain gutter
• Aluminum wall connection with hidden rubber seal
• German engineering & quality
• Complete installation instructions are included with each order and our website www.lightlinecanopies.com
• Toll free assistance line, 1-800-888-2418.

Uses and Applications:
LightLine^® canopies can be used to enhance and protect doorways or windows in residential, commercial, institutional & industrial settings. Canopy kits range in width from 1500mm (59-inches) to 2700mm (106-inches) to cover a variety of door and window sizes. Kits can even be installed adjacent to one another to create an extended canopy along an entire wall area.

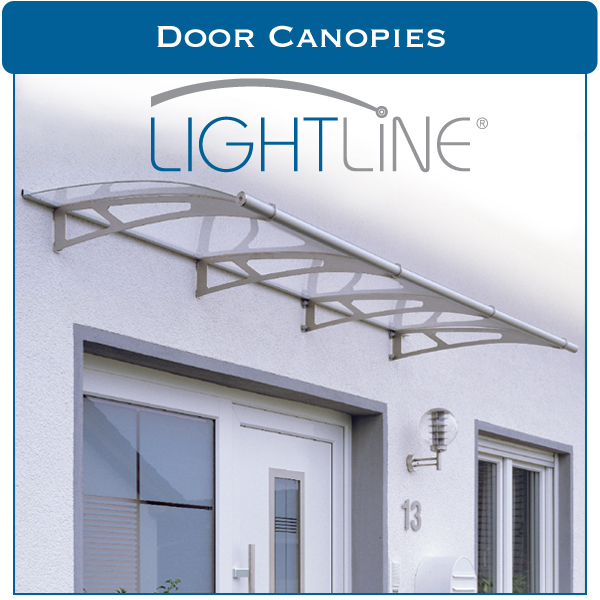

Curve Canopy
The LightLine^® Curve Canopy is the simplest and most popular style with a design that gently slopes away from the wall. The kits come in three sizes—1500mm (59-in), 1900mm (75-in) and 2700 (106-in)—with the quantity of stainless steel support brackets increasing as the size increases. A hidden rubber gasket helps to seal the canopy to the wall surface and direct rainwater down the curved pane into an integrated, front gutter that sheds the water to both sides. The 4mm (3/16”) thick, UV resistant, acrylic pane is secured with the special Click-Lock attachment feature creating a strong, durable and weather-tight structure. Available in either clear or frosted finishes.

Arch Canopy
The LightLine^® Arch Canopy covers your doorway with an elegant, modern archway. The kits come in two sizes: 1480mm (58-in) with 2 stainless steel support brackets and 1900mm (75-in) with 3 support brackets. A rubber gasket on the edge of the acrylic pane helps to seal the canopy to the wall surface and direct rain away from the wall and into integrated side gutters. The 4mm (3/16”) thick, UV resistant, acrylic pane is secured with the special Click-Lock attachment feature creating a strong, durable, weather-tight structure. Available in either clear or frosted finishes.

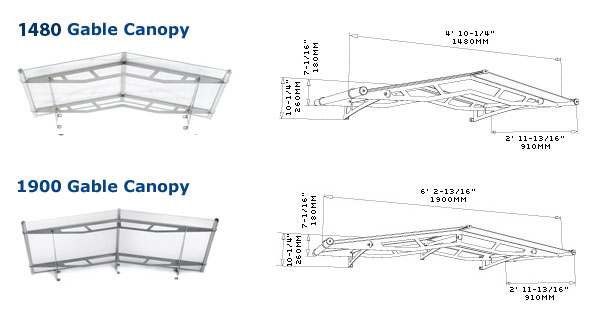

Gable Canopy
The LightLine^® Gable Canopy is a contemporary spin on the beautiful pitched roof design. The kits come in two sizes: 1480mm (58-in) with 2 stainless steel support brackets and 1900mm (75-in) with 3 support brackets. A rubber gasket on the edge of the acrylic pane helps to seal the canopy to the wall surface and direct rain away from the wall and into integrated side gutters. The 4mm (3/16”) thick, UV resistant, acrylic pane is secured with the special Click-Lock attachment feature creating a strong, durable, weather-tight structure. Available in either clear or frosted finishes.

Assembly and Installation:

Installing the LightLine^® Canopy is a Snap!

Important Note: Lightline^® canopy kits come with all the hardware needed to assemble. Please verify what type of wall you are dealing with before installing the canopy. If necessary, you may need to use screws and anchors other than those included in the enclosed installation kit. Never attach canopies to vinyl siding, stucco, Dryvit^® or other synthetic or natural construction material walls where the structural integrity is uncertain or where possible penetration of a moisture barrier membrane may create a potential for water leakage or damage or may violate and void any product warranties. Be sure to carefully seal any wall penetrations with the proper sealant materials. Consult a construction expert for advice on your specific conditions. Also, building codes vary by state, county and city, so be sure to consult with your local building department before starting your project.

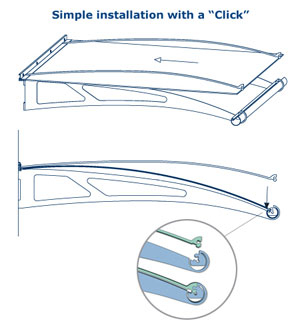

The patented Click-Lock system eliminates need to drill holes in acrylic panel and makes installation of panel into the stainless frame a snap.   Simply insert the acrylic panel into the frame, lower the support arm and snap the Click-Lock ends together.  Attach caps to the ends of the rain gutters to secure and lock the arms and panel in position.

Basic Steps for Installing the Curve Canopy:

1. Attach the stainless steel support brackets to the wall.
2. Slide the rain gutter tubes through the Click-Lock slots at the end of both support brackets.
3. Slip the acrylic pane into position on the support brackets.
4. Secure the pane by closing the Click-Locks and attaching the rain gutter rods & end caps.

Basic Steps for Installing the Arch and Gable Canopies:

1. Attach the stainless steel support brackets to the wall.
2. (Assemble on the ground) slide the rain gutter tubes through the Click-Lock slots on both ends of the stainless steel cross-members.
3. Position the acrylic pane(s) on top of the cross-members.
4. Place the stainless steel locking bars on top of the pane(s).
5. Secure the pane(s) by closing the Click-Locks and attaching the rain gutter rods & end caps.
6. Lift the entire frame onto the wall support brackets and bolt in place.

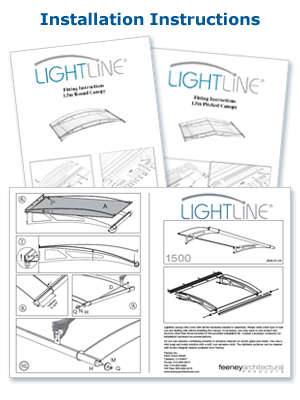

Complete step-by-step installation instructions are available in PDF format on our website, www.lightlinecanopies.com.

• Visor panels are 4mm (5/32-in) thick, UV resistant acrylic in clear or frosted finishes.
• Wall support brackets, cross-member supports and gutter end caps are 304-grade stainless steel with a brushed finish.
• Gutters are clear anodized aluminum.

Technical Support:
The Feeney sales-support staff is available M-F, 5am-5pm (Pacific) to answer product, design and technical questions. Call toll-free 1-800-888-2418 or email sales@feeneywire.com. Also visit our website at www.lightlinecanopies.com.

Warranty:
5 Year Manufacturer’s Warranty
The manufacturer, Polymer Kunststoffe HgmB, warrants that all LightLine^® canopies components (e.g. stainless steel support brackets, aluminum gutters and acrylic panes) shall be free from defects in material and workmanship under normal use, conditions, installation and maintenance in accordance with product specifications for five (5) years from date of purchase.

Environmental Data:
LightLine^® canopies are an environmentally friendly addition to your building designs:

• Long lasting, weather-tough materials and finishes require very little maintenance: no need for stains, paints, varnishes or preservatives that may use toxic chemicals.
• Products are lightweight for easier handling and lower shipping costs (less fuel consumption).
• All aluminum, stainless steel and acrylic components are completely recyclable (LEED points).

Availability & Cost:
Availability: LightLine^® canopy kits may be ordered through our main office in Oakland, CA. Orders for products in stock are usually processed, packaged and ready to ship within 1 week after receipt of order. Orders are boxed or palletized. Individually boxed 1500 models can ship via UPS and all others ship via common truck carrier, freight collect.

Non-stock or sold-out items are ordered from Germany and are typically shipped to our warehouse with the next available restocking container load; in this case, depending on timing, availability could extend to as much as 3-4 months. However, for an additional fee, individual special orders can be made with the Germany plant with shipping FOB Germany.

Cost: current prices for canopy kits are available on our website www.lightlinecanopies.com or by calling our sales department at 1-800-888-2418 or 1-510-893-9473. We offer discounts to licensed architects, contractors and fabricators, so please be sure to ask when submitting for quotes or placing orders.

Ordering:
How To Order LightLine^® Canopies

• Carefully Review: read all of the information provided in this catalog and on our website, www.lightlinecanopies.com. If you have questions, please call our sales department for assistance, toll-free 1-800/888-2418 or 1-510-893-9473.
• Select Your Canopy Style: Curve, Arch or Gable styles.
• Select Canopy Width: kits come in a variety of widths; 1500, 1900 or 2700 for the Curve style. 1500 or 1900 for the Arch and Gable style.
• Select Acrylic Pane Finish: Clear (CLR) or Frosted (FRS) finishes.
• Determine Quantities: count the number of kits you'll need.
• Confirm Details & Prices: all projects are unique, so give us a call, 1-800/888-2418. We’ll help to confirm a final list of all items you'll need and provide you with a price quote and delivery time estimate.
• Place Your Order: please call, fax or e-mail us your final list for order processing. The 1500 models can ship via UPS and all others via common truck carrier. Special expedited processing and shipping may be available for an additional charge; please call for details. Phone 1-800/888-2418, fax 1-510/893-9484, e-mail sales@feeneywire.com

Maintenance
All stainless steel components are made of type 304 stainless with a finely sanded surface. The protective chromium oxide film on the surface of stainless steel gives it superior corrosion resistance. Properly maintained stainless steel provides excellent luster, strength and durability. In most applications stainless steel won’t rust or stain even after many years of service, but it’s NOT rust or stain proof. When stainless comes in contact with chloride salts, sulfides or other rusting metals, it can discolor or even rust and corrode. With proper care and maintenance, however, stainless steel can remain beautiful and functional for years to come, even when it’s exposed to marine environments, polluted surroundings, salted highways, or anywhere it might be exposed to corrosive elements.
The acrylic panes have excellent resistance to weather and UV rays but prolonged exposure to direct sunlight and environmental contaminants may cause yellowing over time. The panes are also subject to scratching. Therefore, it’s important to install and handle the panes carefully and clean them regularly and properly. Please note that the Click-Lock installation feature also makes it very easy to replace panes if they were to become severely scratched or discolored.

• We recommend cleaning the acrylic panes with warm water, a mild dishwashing soap and soft rag or sponge. Special acrylic cleaners and polishers can also be used to clean and remove any small scratches; be sure to follow the manufacturers instructions.
• The stainless steel and aluminum components can be cleaned with warm water, mild soaps and soft rags or sponges. Enviromagic^® cleaner is also excellent at removing dirt, oils and fingerprints..
• Depending on the degree of soiling regular cleaning is vital.
• Stainless steel surfaces should be cleaned with the same frequency as acrylic surfaces.
• Never use sand paper, steel wool or other abrasive materials when cleaning.
• Periodically check all attachment fittings, screws and bolts and retighten as necessary.
