Advance Lifts, Inc.
OPTIONAL ACCESSORIES Advance offers a wide variety of optional accessories to help tailor a lift to your specific requirements. In addition to special bridge sizes, approach ramps for pit mounted lift models installed on top of the ground, warning lights and bells, different power voltages and oil immersion heaters, Advance also offers the following: Electric Toe Guards — An optional safety device for pit mounted lifts, beyond the federally required 8" bevel toe guards, which stops the platform’s downward travel when it encounters an obstacle. Simply pushing the "UP" button on the control station raises the platform so the object can be removed and the system reset. Electric Toe Guards can be installed on any or all of the platform sides. Its hinged actuator projects down and away from the rigid platform toe guard, rather than hanging directly beneath it. Electric Toe Guards can act as an emergency down travel stop switch for anyone within arm’s reach of the platform, providing added electronic protection.
Wheel Chock — A device to prevent loads from rolling off the platform in any but the fully lowered position. Chock ramps are standard on models 1035, 1045, 1055, 6100, and 6150.
Limit Switch — This adjustable limit switch stops the lift’s upward travel at a preset level. To avoid electric lines in the pit, it should only be used where the platform must stop at the same elevation every time.

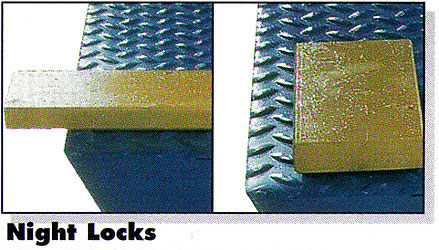

Night Locks — These non-load supporting bars on the four platform corners secure the platform at dock level. They swivel 360 degrees so they can be positioned over the edge of a concrete dock to mechanically lock the lift in a raised position for security purposes. They are not load supporting devices and are ordered in lieu of hand rails, which are not required in a raised concrete loading dock application.
Controls — Weatherproof pendant push button (standard), wall mount
push button, key operated up-down selector switch, up-down push button
with key lockout.
Quick Disconnect — The push button control can be plugged into a receptacle box on the lift. Other variations are available.

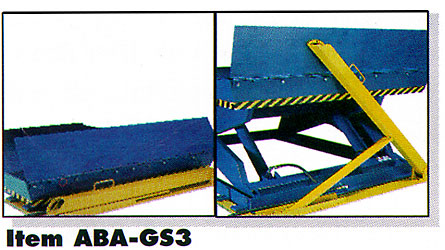

AUTOMATIC BRIDGE ACTIVATORS To avoid potential injuries, the bridge activator eliminates repeated handling of the hinged bridge. Simply adjust the height of the activator to 3" below the truck bed and lean the bridge against the activator. As the lift raises or lowers, the bridge cams over the activator bar onto or off of the truck bed. ITEM ABA-GS3 — For use at ground level installations ITEM ABA-DS1 — For use at loading docks 30" and higher with the dock lift mounted on top of the dock surface
ITEM ABA-DR2 — For use on loading docks 30" and higher with the dock lift recessed into a pit on top of the dock |
