PEDESTRIAN GATE SYSTEMS

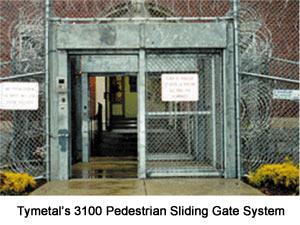

3100 SLIDING GATE SYSTEMS FOR CORRECTIONAL FACILITIES:

When you need safe and secure movement of inmates, choose Tymetal’s 3100 Sliding Gate System. Discerning correctional officers and facility maintenance staff will attest that the 3100 sliding gate system operates in a smooth, consistent manner with two-point positive locking. Virtually maintenance free, the 3100 sliding gate system is your choice for safeguarding your operational costs and personnel movement.

FEATURES	BENEFITS
Access covers are provided on both sides of the gate with five tumbler paracentric key deadbolt locks	EMERGENCY OPERATION: allows for quick access to manual lever from either side of gate in case of power failure
Fully-assembled gate system	RELIABLE: manufactured, assembled and tested at our factory to ensure it meets our high standards EASE OF INSTALLATION: requires minimum amount of labor for installation
3/16" heavy-duty galvanized steel assembly with 10-gauge galvanized steel covers, and tamper-resistant security screws	DURABLE & STRONG: the "thick skin" of this unit is highly resistant to penetration from outside forces
Enclosed-drive assembly and two-point keyless lock	SECURE: requires a special tool to access the mechanism
Rugged chain-drive motor with specialized shaft and sprocket configurations	EASE OF OPERATION: allows for smooth and consistent operation
Enclosed drive assembly	SECURE: drive assembly will function in all weather conditions and is resistant to tampering
Gate interlocking capability is standard	MAXIMUM SECURITY: provides a higher level of security when and where it's required

WHY THE 3100 PEDESTRIAN SLIDING GATE SYSTEM IS THE BEST ON THE MARKET

SUPERIOR DESIGN CONCEPT:

Durable 10-gauge galvanized steel fully protects both the drive and locking assembly against inclement weather and tampering. Tymetal’s design provides lasting protection and secure operation.

EASY, COST EFFECTIVE INSTALLATION:

The 3100 Pedestrian Sliding Gate System is fully assembled at the factory and shipped to the project site ready for installation. The required gate/door panel is generally included and installed on the system. This system, with factory fit and finish, lowers the costs of installation and future maintenance.

LOCK FUNCTION:

The 3100 system mechanically deadlocks the gate panel in both the open and closed position at two points.

GATE STATUS:

Gate position/status indication is a standard feature. The 3100 system is fully equipped with the proper switches to provide gate monitoring.

TECHNICAL SUPPORT:

Tymetal’s technical staff prides itself in responding promptly to our customers’ questions and concerns. We offer design assistance and we will prepare CAD drawings for special design requirements.

TECHNICAL DATA:

Standard Gate Size: 42" or 60" clean opening X 84" clear height
Electrical: 1/4 HP, 208 VAC, 3 phase or 115 VAC, Single phase
Control Wiring: 110 VAC

SWING GATE SYSTEMS - CORRECTIONAL OR COMMERCIAL FACILITIES:

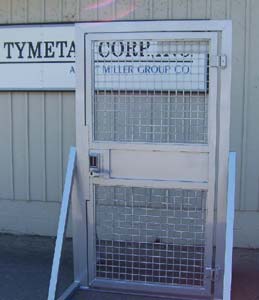

Tymetal’s pedestrian swing gate systems are manufactured to meet the demanding regimen of correctional facilities and to allow gatekeepers the safe, secure movement of inmates. The 2150 swing gate has also been modified for industrial/commercial use, with a variety of panel fillers, lock options and finishes available. For all Tymetal Corp. swing gates, the controlled swinging motion assures continual lock alignment with minimal maintenance requirements. The gates are fully assembled and hung at the factory to verify lock alignment and insure a fast trouble free installation. Note that UL 325 guidelines prohibit the use of automatic vehicle gates by pedestrians – separate access is to be provided.

FEATURES	BENEFITS
Heavy-duty self-closing gate	CONSISTENT ALIGNMENT: the mechanism ensures proper lock alignment and consistent gate travel.
Isolated gate panel	ACCURATE: reduces false alarms on fence lines that utilize a detection monitoring system.
Five tumbler paracentric key deadbolt locks are keyed both sides	EMERGENCY OPERATION: deadbolt locks allow for quick manual operation from either side of gate in case of power failure.
Fully-assembled gate system	RELIABLE: manufactured, assembled and tested at our plant to assure it meets our high standards EASE OF INSTALLATION: requires minimal amount of labor for installation.
3/16" steel frame and jamb members	VANDAL-PROOF: virtually indestructible, provides superior resistance to tampering.
Hot-dip galvanized finish	DURABLE: systems are highly resistant to inclement weather conditions and corrosion. Gates are hot-dip galvanized after fabrication is completed.
Gate interlocking capability and status indication	MAXIMUM SECURITY: provides a higher level of security when and where it's required.

WHY TYMETAL’S PEDESTRIAN SWING GATE SYSTEM ARE THE BEST ON THE MARKET

EASY, COST EFFECTIVE INSTALLATION:

Tymetal’s swing gate systems are fully assembled at the factory and shipped to the project site ready for installation.

SELF-CLOSING:

The swing gates are equipped with heavy-duty door closers.

LOCK:

Standard swing gate systems are equipped with a Tymetal electromechanical lock. Many other lock options are available for industrial/commercial projects.

GATE STATUS:

Gate position/status indication is a standard feature. Tymetal swing gates are fully equipped with status switches to provide complete gate monitoring.

2150 DESIGN CONCEPT:

This design features a gate that is isolated from the fence line and commonly used when perimeter fence alarm systems are employed.

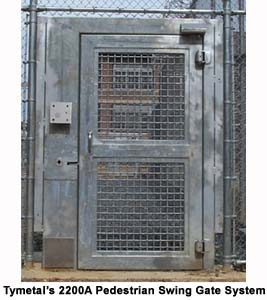

2200A DESIGN CONCEPT:

The most secure swing gate available in the correctional/security market, the 2200A eliminates all gaps between the fence support posts and the gate panel.

TECHNICAL SUPPORT:

Tymetal’s technical staff prides itself in responding promptly to our customers’ questions and concerns. We offer design assistance and we will prepare CAD drawings for special design requirements.
