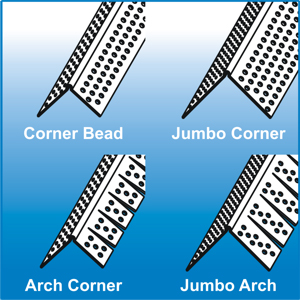

CORNER BEAD & JUMBO CORNER BEAD
Made of rigid vinyl, Trim-Tex Corner Beads create rustproof, dent resistant finished corners. Same basic design as our regular corner bead, Jumbo Corner Bead comes with an extra wide mud leg; a full 1-3/4"; enough for finishing 2 layers of 5/8" drywall.
Jumbo is perfect for higher traffic areas, commercial applications or wherever a higher strength corner is desired.

ARCHWAY CORNER BEAD
JUMBO ARCHWAY CORNER BEAD
Archway Corner Bead is the ideal tool for finishing archways and other free flowing curved forms. Engineered arch tabs allow you to go from a 10" inside radius to an 18" outside radius. With wider 1 3/4" mud legs Jumbo Arch is perfect for large arches and commercial applications.

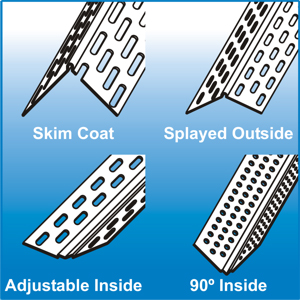

SKIM COAT PLASTER BEAD
Skim Coat Corner Bead is designed to be used with skim coat veneer and EIFS. Tall .100'' mud bump and long 1-3/4'' mud legs for skim coat and L-5 finishing requirements.

OUTSIDE SPLAYED CORNER BEAD
An outside corner that can be flexed to fit unusual outside corner angles from 120º to 140º.
Make your outside corners straight and definitive. Eliminates the need for taping.

ADJUSTABLE INSIDE CORNER
90º INSIDE CORNER
The unique design of Adjustable Inside Corner allows it to adjust from a 70º inside corner to a 150º inside corner. Inside corners are the most easily forgotten aspects of a drywall job. 90º Inside Corner Bead is designed to give you perfectly straight, sharp inside corners every time.
