Product Presentation

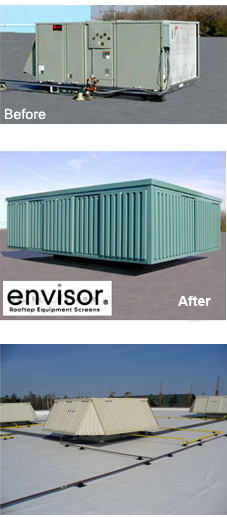

CityScapes manufactures Envisor^®, a pre-engineered equipment screening system that requires no rooftop penetration. The components are modular by design to allow for user friendly installation. Each screen ships as a knockdown assembly.

Applications
Conceals aesthetically and blends rooftop mechanical equipment. Envisor can help buildings comply with local zoning ordinances.

Features

• The panels are constructed of thermoformed high impact ABS with a co-extruded UV protective layer on both sides. Combined with the sturdy aluminum frame construction, the finished assembly is maintenance free and lightweight.
• Envisor's panels can vary in height and width to fit units of all sizes. A variety of finishes and colors are available to complement a wide range of applications and architectural aesthetics.
• Certain applications may allow for multiple unit screening utilizing one continuous screen.
• Installation can be arranged through the general or mechanical contractor. CityScapes also has a network of install contractors that can quote job specific manufacturer's equipment by location.
• Most routine maintenance is accomplished by utilizing a "By-Pass Door Design." Service technicians can access the screened RTU by sliding a panel either left or right (which will position panels one in front of the other), providing an opening at any point around the perimeter of the equipment.


For Additional Information
Product brochures are available upon request. CityScapes customer service specialists are ready to answer your questions about Envisor. U.S. Patent No. 5,664,384
