SILICONE EXTRUSIONS AND GASKETS FROM DOW CORNING DOW CORNING® 123 SILICONE SEAL DOW CORNING® 123 SILICONE SEAL CUSTOM DESIGNS H.C. Dow Corning is more than a silicone supplier. Whether you are building or refurbishing, we are your construction solutions partner. In addition to silicone, we can also supply the application technology, services and tailored support you need to:
Proven Performers

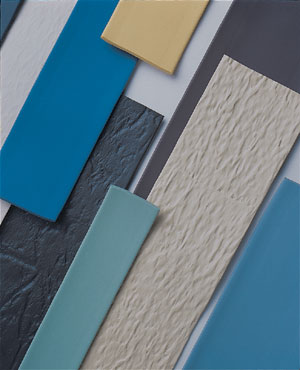

DOW CORNING 123 SILICONE SEAL Dow Corning® 123 Silicone Seal is a preformed silicone extrusion that serves as a fast, efficient replacement for failed weatherseals and is an excellent problem-solver in new construction applications. It can be bonded to a wide variety of substrates using Dow Corning® 795 Silicone Building Sealant or Dow Corning® 791 Silicone Weatherproofing Sealant to form a long-lasting, uniform weatherseal and a strong, flexible alternative to wet sealants. In renovation projects, 123 Silicone Seal is applied over failed sealants, spanning the joint and virtually eliminating tedious caulk and sealant removal. Installation is easier and faster than other wet sealant options. Dow Corning offers custom two- and three-dimensional designs of 123 Silicone Seal that function as attractive, cost-effective alternatives to vulcanized rubber gaskets or patches and thick sealant installations. Applications include window mitered joints (boots), corner and finish pieces, custom OEM gaskets and molded corners, and custom curtainwall applications, such as splice joints. A Custom Design Order Form is available from your local Dow Corning representative. Submission of CAD drawings expedites the process.
Architectural Recommendations To ensure performance under all temperature variations at the time of installation, good architectural practice recommends that joint width should be 1.33 times the total expected thermal joint movement, plus tolerances, and a minimum of 1/4 inch (6.4 mm) for this product. A minimum bond width of 3/8 inch (9.5 mm) on each side of the joint is required. DOW CORNING® 123 SILICONE SEAL CUSTOM DESIGNS H.C. Dow Corning® 123 Silicone Seal Custom Designs H.C. are preformed two- and three-dimensional silicone shapes that are bonded to substrates using 795 Silicone Building Sealant or other recommended Dow Corning® brand silicone sealants. Dow Corning 123 Silicone Seal Custom Designs H.C. can be used in both new and remedial construction applications such as corner and finish pieces, custom curtainwall applications such as splice joints, window mitered joints (boots), structural zipper gasket repair and custom OEM gaskets and molded corners. They are easy to install and provide:
Architectural Recommendations To ensure performance under all temperature variations at the time of installation, good architectural practice recommends that joint width should be 1.33 times the total expected thermal joint movement, plus tolerances, and a minimum of 1/4 inch (6.4 mm) for this product. A minimum bond width of 3/8 inch (9.5 mm) on each side of the joint is required. HOW TO CONTACT US For more information or the name of the Dow Corning sales representative or product distributor in your area, call 1-800-322-8723 or 1-989-496-6000. Dow Corning has sales offices, manufacturing sites, and science and technology laboratories around the globe. Telephone numbers of locations near you are available at www.dowcorning.com. For technical or product questions, call the Dow Corning Technical Information for more information. NOTE: Any review, recommendation or statement made on behalf of Dow Corning relating to any engineering design, architectural drawing, product formulation, end-use specification or similar document is limited to the knowledge of the product properties as determined by laboratory testing of material produced by Dow Corning. Any comments or suggestions relating to any subject other than such product properties are offered only to call the attention of the engineer, architect, formulator, end-user or other person to considerations that may be relevant in an independent evaluation and determination of the appropriateness of such design, drawing, specification, document or formula. LIMITED WARRANTY INFORMATION – PLEASE READ CAREFULLY The information contained herein is offered in good faith and is believed to be accurate. However, because conditions and methods of use of our products are beyond our control, this information should not be used in substitution for customer’s tests to ensure that Dow Corning’s products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent. Dow Corning’s sole warranty is that the product will meet the Dow Corning sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted. DOW CORNING SPECIFICALLY DISCLAIMS ANY OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY. DOW CORNING DISCLAIMS LIABILITY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Dow Corning is a registered trademark of Dow Corning Corporation. We help you invent the future is a trademark of Dow Corning Corporation. ©2005 Dow Corning Corporation. All rights reserved.
Proven Performers
DOW CORNING 123 SILICONE SEAL Dow Corning® 123 Silicone Seal is a preformed silicone extrusion that serves as a fast, efficient replacement for failed weatherseals and is an excellent problem-solver in new construction applications. It can be bonded to a wide variety of substrates using Dow Corning® 795 Silicone Building Sealant or Dow Corning® 791 Silicone Weatherproofing Sealant to form a long-lasting, uniform weatherseal and a strong, flexible alternative to wet sealants. In renovation projects, 123 Silicone Seal is applied over failed sealants, spanning the joint and virtually eliminating tedious caulk and sealant removal. Installation is easier and faster than other wet sealant options. Dow Corning offers custom two- and three-dimensional designs of 123 Silicone Seal that function as attractive, cost-effective alternatives to vulcanized rubber gaskets or patches and thick sealant installations. Applications include window mitered joints (boots), corner and finish pieces, custom OEM gaskets and molded corners, and custom curtainwall applications, such as splice joints. A Custom Design Order Form is available from your local Dow Corning representative. Submission of CAD drawings expedites the process.
Architectural Recommendations To ensure performance under all temperature variations at the time of installation, good architectural practice recommends that joint width should be 1.33 times the total expected thermal joint movement, plus tolerances, and a minimum of 1/4 inch (6.4 mm) for this product. A minimum bond width of 3/8 inch (9.5 mm) on each side of the joint is required. DOW CORNING® 123 SILICONE SEAL CUSTOM DESIGNS H.C. Dow Corning® 123 Silicone Seal Custom Designs H.C. are preformed two- and three-dimensional silicone shapes that are bonded to substrates using 795 Silicone Building Sealant or other recommended Dow Corning® brand silicone sealants. Dow Corning 123 Silicone Seal Custom Designs H.C. can be used in both new and remedial construction applications such as corner and finish pieces, custom curtainwall applications such as splice joints, window mitered joints (boots), structural zipper gasket repair and custom OEM gaskets and molded corners. They are easy to install and provide:
Architectural Recommendations To ensure performance under all temperature variations at the time of installation, good architectural practice recommends that joint width should be 1.33 times the total expected thermal joint movement, plus tolerances, and a minimum of 1/4 inch (6.4 mm) for this product. A minimum bond width of 3/8 inch (9.5 mm) on each side of the joint is required. HOW TO CONTACT US For more information or the name of the Dow Corning sales representative or product distributor in your area, call 1-800-322-8723 or 1-989-496-6000. Dow Corning has sales offices, manufacturing sites, and science and technology laboratories around the globe. Telephone numbers of locations near you are available at www.dowcorning.com. For technical or product questions, call the Dow Corning Technical Information for more information. NOTE: Any review, recommendation or statement made on behalf of Dow Corning relating to any engineering design, architectural drawing, product formulation, end-use specification or similar document is limited to the knowledge of the product properties as determined by laboratory testing of material produced by Dow Corning. Any comments or suggestions relating to any subject other than such product properties are offered only to call the attention of the engineer, architect, formulator, end-user or other person to considerations that may be relevant in an independent evaluation and determination of the appropriateness of such design, drawing, specification, document or formula. LIMITED WARRANTY INFORMATION – PLEASE READ CAREFULLY The information contained herein is offered in good faith and is believed to be accurate. However, because conditions and methods of use of our products are beyond our control, this information should not be used in substitution for customer’s tests to ensure that Dow Corning’s products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent. Dow Corning’s sole warranty is that the product will meet the Dow Corning
sales specifications in effect at the time of shipment. DOW CORNING SPECIFICALLY DISCLAIMS ANY OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY. DOW CORNING DISCLAIMS LIABILITY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Dow Corning is a registered trademark of Dow Corning Corporation. We help you invent the future is a trademark of Dow Corning Corporation. ©2005 Dow Corning Corporation. All rights reserved. |
