Airolite Stationary Louvers with visible mullions may be joined
with an extruded aluminum "I" connector. Continuous blade louvers
(with CB model designation) utilize concealed blade braces and hidden vertical
supports in place of jamb frames to present uninterrupted horizontal blade appearance. Airolite Architectural Louvers are assembled entirely by welding to ensure
optimum strength and durability required to resist vibration damage and eliminate
the potential for galvanic corrosion. Fluoropolymer and anodized finish coatings
are applied to Airolite Architectural Louvers only after each product is weld-assembled

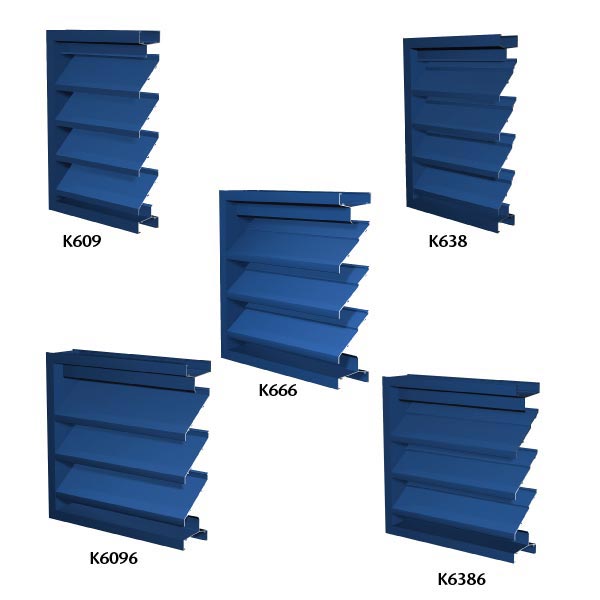

to ensure that all exposed edges and surfaces received maximum protection. | Extruded Aluminum Stationary Louvers | Non-Drainable Blade | Louver Depth | Blade Thickness | Frame Thickness | Free Area | Water Penetration
Rating cfm (m3/s) | K609/CB609 | 4" (101.6 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 50% | 5,612 (2.66) | K6096/CB6096 | 6" (152.4 mm) | 0.125" (3.18 mm) | 0.125" (3.18 mm) | 52% | 6,822 (3.22) | K638/CB6386 | 4" (101.6 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 50% | 5,007 (2.36) | K6386/CB6386 | 6" (152.4 mm) | 0.125" (3.18 mm) | 0.125" (3.18 mm) | 52% | 6,822 (3.22) | K666/CB666 | 4" (101.6 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 55% | 6,564 (3.10) | | See attached data sheets for physical characteristics and
performance data |
Airolite urges specifications that address each of the following points to minimize
conflicts in bidding and assure an installation in accordance with the designer’s
intent. Please refer to the attached 3-part specification for further information.
1. Louver Type Selection
a. Extruded Aluminum Stationary Louvers - visible mullion
b. Extruded Aluminum Stationary Louvers - continuous blade 2. Material Selection
a. Extruded Aluminum (Alloy 6063-T5) 3. Method of Assembly
a. All-Welded Assembly 4. Screen, Blank-Off & Insulated Panels
a. Screen Selection
1. Insect Screen
2. Bird Screen
b. Screen Frames - Removable extruded aluminum
c. Blank-Off & Insulated Panels
d. Air Filters & Filter Frames 5. Louver Accessories
a. Special Shapes
b. Hinged/Removable Louvers and Subframes
c. Frame Closure
d. Security Bars 6. Method of Installation
a. Explosion Relief Fasteners
b. Blind Mounting
c. Jamb Fasteners
d. Strap Anchors
e. Flat Flange
f. Clip Angle/Continuous Angle
For more than 85 years, Airolite has served as the innovative leader in the
design and manufacture of architectural louvers, grilles, screens and sun controls.
Contact us at www.airolite.com or 740-373-7676.
|
