PROSPEC Decibel Drop™ viscoelastic damping compound

Key Features:
PROSPEC Decibel Drop, a high-performance viscoelastic damping compound, decreases the sound traveling to adjacent rooms.  It is easy to install between layers of drywall, plywood or sub flooring in new and retrofit applications.

  • Offers exceptional damping properties
  • Superior performance in low frequencies
  • Easy to install between layers of drywall, plywood or sub flooring
  • Can be used on walls, floors and ceilings
  • Use in new construction or retrofit applications
  • Install on one or both sides of the wall
  • Class 1 fire-rated
Uses and Applications:
PROSPEC Decibel Drop is ideal for use in:
  • commercial
  • broadcast/audio
  • home theater
  • and multifamily interior spaces
Material:
PROSPEC Decibel Drop is a high-performance viscoelastic damping compound. It provides an
economical solution for reducing sound transmission into adjacent areas. Each case contains
12 - 29 oz. cartridges.

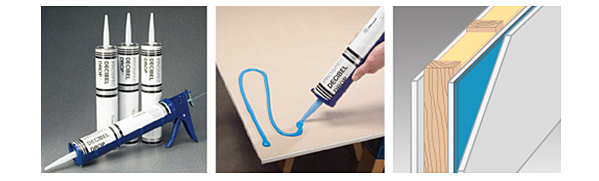

Installation
  • Use on walls, floors and ceilings
  • Use in new construction or retrofit applications
  • Apply 2 to 3 cartridges per 4' x 8' (32 sq. ft. of drywall) randomly over surface area; No trowling required
  • Press drywall to first layer of drywall already installed and screw it to the studs
  • Install on one or both sides of the wall
  • See installation guide and product animation for more information
Physical Data:

Fire Resistance Class 1 per ASTM E 84
Flame Spread per ASTM E 84 15
Smoke Density per ASTM E 84 35

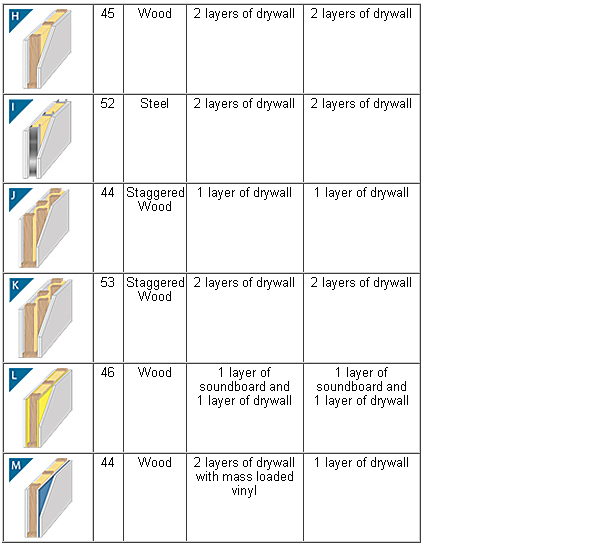

Sound Transmission:

24" OC Studs; R13 Fiberglass Insulation; Drywall 5/8"; Coverage: 2 Cartridges/32 Sq. Ft.





Technical Support:

pinta acoustic, inc. has a nationwide network of distributors and product representatives who can provide you with acoustical data, application assistance, samples, and product recommendations. Please visit our website or call our customer service department to be connected to the company nearest you or visit our web site.

Manufacturer:
pinta acoustic, inc. manufactures a broad range of attractive ceiling tiles, wall panels, and acoustical materials including: CONTOUR® , HARMONI, and WHITELINE® Ceiling Tiles; SQUARELINE® Metal Ceiling Tiles; BIOLINE™ Wood Ceiling Tiles; SONEX® Baffles and Panels; FABRITEC Wall Panels; PROSPEC® Barriers, Foams, and Composites; and pinta Ceiling Grid Systems.
