Fittings For Structural Glass

Innovative Structural Glass offers a variety of glass and metal fittings specially designed to adhere to our exacting engineering specifications. Special or custom designs are also offered as the project dictates.

Fabricated from 316-alloy stainless steel, this hardware offers a stylish design. Maintenance free standard finishes include satin and polished stainless steel. Powder-coated, solid brass and gold-plated finishes are also available. This hardware can be adapted to glass ranging in thickness from 1/4" – 1-3/8" thick or used on insulated glass. ISG utilizes an independent test laboratory to ensure the quality and engineering of its products.

The Benefits of Innovative Structural Glass Hardware

  • Completes an integrated system of glass wall components for reliable results in the field
  • Is engineered to meet U.S. standards for seismic and hurricane forces.
  • Is fabricated of materials selected to ensure durability and structural integrity over time.

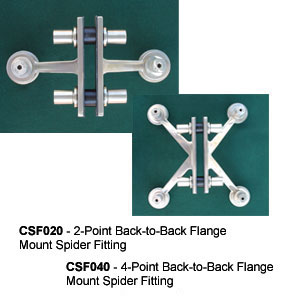

000 Series – Flange Mount Spider Fittings
Features:
  • 1, 2, and 4-point, back-to-back and single configurations available
  • Full and balustrade sizes available
  • Can be mounted to steel or glass
  • ¼" adjustment available in two or three axes
  • Articulated and non-articulated head configurations available

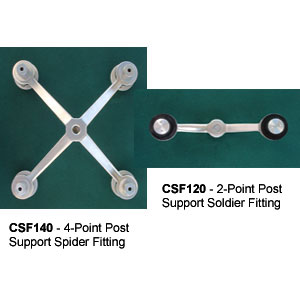

100 Series – Post Support Spider Fittings
Features:
  • 1, 2, 3 and 4-point configurations available
  • Can be used with stand-off posts of varying lengths for design flexibility
  • Allows ¼" adjustment in two or three axes

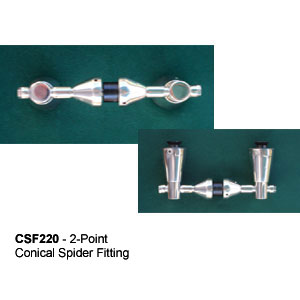

200 Series – Conical Spider Fittings
Features:
  • 1 and 2-point configurations available
  • Articulated and non-articulated head configurations
  • Allows adjustment in two axes for system flexibility

300 Series – Single Point Glass Support Fittings
Features:
  • Single point heads mount to support posts or angles
  • Variety of articulated and non-articulated head configurations available
  • Extensive design flexibility
CSF340 1-Point Non-Articulated Countersunk Glass Support Fitting with Support Post

CSF330 1-Point Articulated Countersunk Glass Support Fitting with Support Post

CSF330 1-Point Articulated Glass Support Fitting with Exterior Disc and Support Post

CSF310 1-Point Articulated Glass Support Fitting with Exterior Disc and Support Angle

CSF320 1-Point Non-Articulated Countersunk Glass Support Fitting with Support Angle

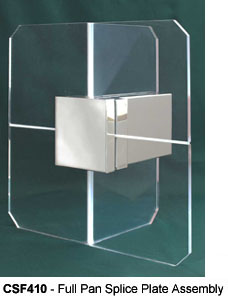

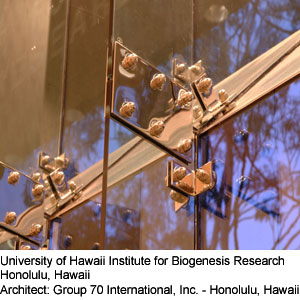

400 Series – Splice Plate Assemblies
Features:

  • Suitable for ISG’s Glass Fin Structures
  • Exposed or concealed fastener configurations available
  • Flush mainplate configuration available
