General Information

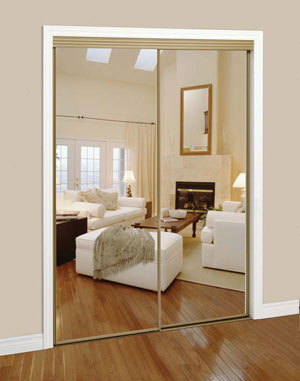

SERIES 2200 ST AND 2250 ST

Steel Sliding Mirror Door with Chrome Mylar Edging

Provide Model 2200 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Sliding Mirror Wardrobe Doors are Slimfold Series 2200 or 2250 of mirror laminated to a steel panel supported by adjustable bottom rollers and top guides that travel in respective tracks.

b. The top track is prefinished with two integral fascia looks (reversible) that match the stile and rail finish.

c. The bottom track is prefinished to match the stile and rail finish and shall not exceed 5/16" (8mm) in height for minimum obstruction.

d. The door panels and reinforced stiffeners shall be 24 gauge cold rolled steel. A hot dipped coating of zinc-iron alloy (G60) is available as galvanized steel option.

e. The nylon bottom rollers are ball-bearing, free-floating and provide 1" (25mm) vertical adjustment. The polypropylene top guide are permanently fixed to the top connectors and fit snugly into the vertical openings in the top track.

a. 3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test. 4mm float plate glass mirror for heights greater than 7'0".

b. Mirror shall be securely mounted with dual faced cushion adhesive tape. A steel channel shall protect the bottom edge of the mirror.

Series 2200 ST: Top and bottom tracks are G60 galvanized steel or optional .050 aluminum. Mirror edging shall be Polished Chrome mylar. Handle shall be Polished Chrome. Series 2250 ST: Top and bottom tracks are Polished Brass steel. Mirror edging shall be Polished Gold mylar. Handle shall be Polished Gold. Steel panel colors are Bright White, Ivory and Black Beauty.

• Heavy duty, long life bypass
• Mirror laminated on 24 gage steel panel–Exclusive Design!
• Adjustable nylon ball-bearing bottom roller system with 1" vertical adjustment
• Easily installed and adjusted
• 3.0 mm safety backed mirror
• Panel Colors: Bright White, Ivory and Black
• Track: Top and bottom track prefinished to match door
• Mirror Edging: Polished Chrome mylar mirror edging
• Handle: Polished Chrome handle
• Model 2250 ST Available with Polished Gold mylar mirror edging, Polished Gold handle, and Polished Brass steel top and bottom track

GENERAL INFORMATION

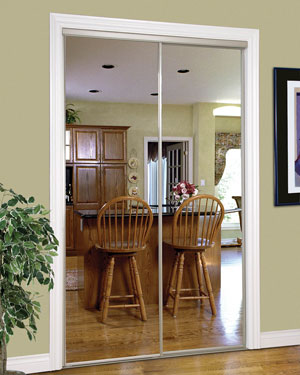

SERIES 4260 ST

Provide Model 4260 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Sliding mirror doors shall consist of framed mirror panels supported by adjustable bottom rollers and adjustable top guides that travel in a threshold track and top track respectively.

b. Top track to be prefinished steel with an integral fascia that matches the stile and rail finish.

c. The bottom track shall be prefinished steel to match door frame and shall not exceed 5/16" (8mm) in height for minimum floor obstruction.

d. The bottom roller shall be free floating and provide a 1" (25mm) vertical adjustment. Model 4260 rollers shall have plain bearing acetal wheels.

e. The adjustable top guides shall be permanently fixed to the top connectors and fit snugly into the vertical openings in the top track.

a. The frame shall consist of prefinished roll-formed stiles and rails joined at each corner by positively retained, removable, unhanded, connectors that snap in place and contain preassembled rollers and guides.

a. 3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test. 4mm float plate glass mirror for heights greater than 7'0".

Bright White, Vanilla, Architectural Brown, Black, Arctic Silver, Satin Gold, Bright Gold

• New jump-resistant bottom roller!
• Adjustable top L-Guides for greater vertical adjustment
• Easy to adjust for out-of-square openings
• One piece 1-3/4" deep top track and integral fascia
• Low rise bottom track for minimal floor obstruction
• 3.0 mm safety backed mirror
• 4.0 mm safety backed mirror for heights greater than 7'0"
• Track: Top and bottom track prefinished to match door

GENERAL INFORMATION

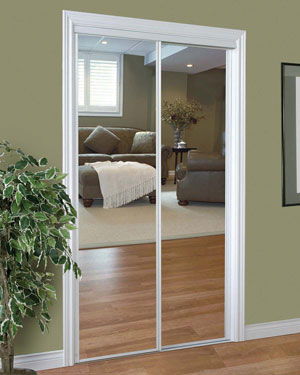

SERIES 2020 ST

Provide Model 2020 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Sliding mirror wardrobe doors shall consist of framed mirror panels supported by adjustable bottom rollers that travel in a steel bottom track and spring loaded top guides that travel in a steel one piece track.

b. The top track shall be one piece and of pre-finished steel. The fascia finish shall match that of the top track.

c. The bottom track shall be pre-finished steel and not exceed 5/16" (8mm) from the floor. Top and bottom track finishes shall match the stile and rail.

d. The bottom roller shall be free floating and provide a 1" (25mm) vertical adjustment. Model 4260 rollers shall have plain bearing acetal wheels.

e. The adjustable top guides shall be permanently fixed to the top connectors and fit snugly into the vertical openings in the top track.

a. The stiles and rails shall be joined at each corner by unhanded connectors that snap into position, are positively fastened, but can be removed for changing of inserts. Bottom connectors shall have either ball bearing rollers or solid acetal plain bearing wheels, both with an integral anti-jump housing. Top connectors shall have a solid plastic guide permanently attached to the connector housing which provides a snug fit with the top track. The plastic guide will adjust to five different positions to ensure an optimum fit. Vertical adjustment is 1 1/8" (29mm) on the bottom and 1-1/4" (32mm) on the top.

3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test. 4mm float plate glass mirror for heights greater than 7'0".

GENERAL INFORMATION

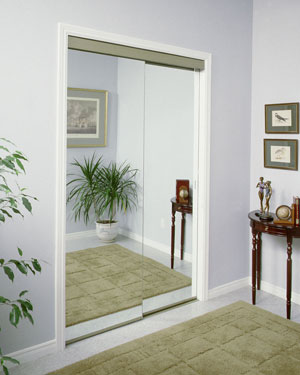

SERIES 4050 ST

Provide Model 4050 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Sliding mirror doors shall consist of framed mirror panels supported by single wheel top hangers and bottom guides that travel in top and bottom tracks respectively.

b. The top track shall be steel with a prefinished steel fascia secured by clips formed in the face of the track.

c. The bottom track shall be prefinished steel and shall not exceed 5/16" (8mm) in height for minimum floor obstruction.

d. The top hangers shall have acetal wheels and provide 1 1/2" (38mm) vertical adjustment.

e. The floating nylon guides shall lock into floor track & automatically compensate for floors up to 3/4" (19mm) out of level.

a. The frame shall consist of prefinished roll formed steel stiles and rails joined at each corner by positively retained, removable, unhanded connector assemblies that snap in place and contain top hangers and bottom guides.

b. The 7/8" wide stiles shall function as integral full length pulls.

a. 3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test. 4mm float plate glass mirror for heights greater than 7'0".

Bright White, Vanilla, Architectural Brown, Black, Arctic Silver, Satin Gold, Bright Gold

• Top hung single wheel rollers for smooth and quiet operation.
• Snap-in bottom guides are virtually jump proof
• Easy to adjust for out-of-square openings
• Low rise bottom track for minimal floor obstruction
• 3" Detachable fascia
• 3.0 mm safety backed mirror
• 4.0 mm safety backed mirror for heights greater than 7'0"
• Track: Top and bottom track prefinished to match door

GENERAL INFORMATION

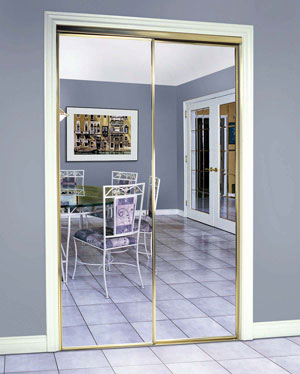

SERIES 4760 ST

Provide Model 4760 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Frameless sliding mirror doors shall consist of mirror panels supported by adjustable bottom rollers and adjustable top guides that travel in a threshold track and top track respectively.

b. The top track shall be prefinished steel with an integral fascia that matches the stile and rail finish.

c. The bottom track shall be prefinished steel to match door frame and shall not exceed 5/16" (8mm) in height for minimum floor obstruction.

d. The bottom rollers shall be free floating and provide a 1" (25mm) vertical adjustment. Model 4760 rollers shall have plain bearing acetal wheels.

e. The adjustable top guides shall be permanently fixed to the top connectors and fit snugly into the vertical openings in the top track.

a. The frame shall consist of prefinished roll formed steel stiles and rails joined at each corner by positively retained, removable, unhanded connector assemblies that snap in place and contain preassembled rollers and guides.

b. The stiles shall be bonded to the back of the polished or beveled edge of the mirror and shall not cover the long sides of the mirror.

c. Aluminum pull to be mounted with screws to edge of door.

a. 3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test. 4mm float plate glass mirror for heights greater than 7'0".

b. Mirror shall have polished edges on two long sides.

Bright White, Vanilla, Architectural Brown, Black, Arctic Silver, Satin Gold, Bright Gold

• Provides a beautiful, uninterrupted look of mirror
• Adjustable top L-Guides for smooth and quiet operation
• New jump-resistant bottom roller!
• Easy to adjust for out-of-square openings
• One piece 1-3/4" deep top track low rise bottom track
• 3.0 mm safety backed mirror
• 4.0 mm safety backed mirror for heights greater than 7'0"
• Track: Top and bottom track prefinished to match door

GENERAL INFORMATION

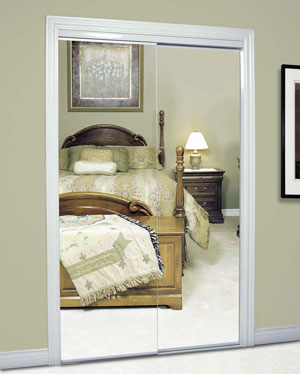

SERIES 2007 ST

Provide Model 2007 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Sliding mirror doors shall consist of framed mirror panels supported by single wheel top hangers and bottom guides that travel in top and bottom tracks respectively.

b. The top track shall be steel with a prefinished steel fascia as an integral part of the track.

c. The bottom track shall be prefinished steel and shall not exceed 5/16" (8mm) in height for minimum floor obstruction.

d.The top hangers shall have acetal wheels and provide 1-1/2" (38mm) vertical adjustment.

e.The floating nylon guides shall lock into floor track & automatically compensate for floors up to 3/4" (19mm) out of level.

a. The frame shall consist of prefinished roll formed steel stiles and rails joined at each corner by positively retained, removable, unhanded connector assemblies that snap in place and contain top hangers and bottom guides.

b. The 7/8" (22.23mm) wide stiles shall function as integral full length pulls.

a. 3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test.

GENERAL INFORMATION

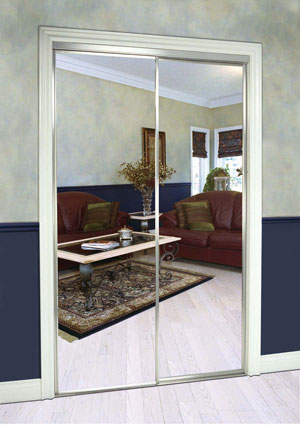

SERIES 4550 AL

Provide Model 4550 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Sliding mirror wardrobe doors shall consist of aluminum framed mirror panels supported by adjustable bottom rollers that travel in an aluminum bottom track and top guides that travel in an aluminum top track.

b. The top track shall be one piece and of pre-finished aluminum. The fascia finish shall match that of the top track.

c. The bottom track shall be pre-finished aluminum and not exceed 5/16" (8mm) from the floor. Both the top track and bottom track finishes shall match the stile and rail.

d. The stile, rail, top track and bottom track shall have a finish. The connectors shall be plated.

a. The stiles and rails shall be joined at each corner by unhanded connectors that snap into position, are positively fastened, but can be removed for changing of inserts. Bottom connectors shall have either ball bearing rollers or solid acetal plain bearing wheels, both with an integral anti-jump housing. Top connectors shall have a solid plastic guide permanently attached to the connector housing which provides a snug fit with the top track. The plastic guide will adjust to two different positions to ensure an optimum fit. Vertical adjustment is 1-1/8" (29mm) on the bottom and 1-1/4" (32mm) on the top.

3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test. 4mm float plate glass mirror for heights greater than 7'0".

GENERAL INFORMATION
SERIES 7023 AL

Provide Model 7023 sliding mirror wardrobe doors manufactured by Slimfold Corporation, Dothan, AL in the dimensions shown on the drawings and with the following attributes:

a. Sliding mirror wardrobe doors shall consist of aluminum framed mirror panels supported by adjustable bottom rollers that travel in an aluminum bottom track and top guides that travel in an aluminum top track.

b. The top track shall be one piece and of pre-finished aluminum.

c. The bottom track shall be pre-finished aluminum and not exceed 5/8" (8mm) from the floor. Both the top track and bottom track finishes shall match the stile and rail.

d. The stile, rail, top track and bottom track shall have a finish. The connectors shall be plated.

a. The stiles and rails shall be joined at each corner by unhanded connectors that snap into position, are positively fastened, but can be removed for changing of inserts. Bottom connectors shall have either ball bearing rollers or solid acetal plain bearing wheels, both with an integral anti-jump housing. Top connectors shall have a solid plastic guide permanently attached to the connector housing which provides a snug fit with the top track. The plastic guide will adjust to five different positions to ensure an optimum fit. Vertical adjustment is 1-1/8" (29mm) on the bottom and 1-1/4" (32mm) on the top.

3mm float plate glass mirror, safety backed to conform with Uniform Building Code Standard 24-2, Part II. Safety mirror 400 lb. ft. Impact test ANSI Z-97.1 1984 boil and impact test. 4mm float plate glass mirror for heights greater than 7'0".

Satin Brass, Bright Brass, Satin Chrome, Bright Chrome
