Wall Ties and Misc. Accessories

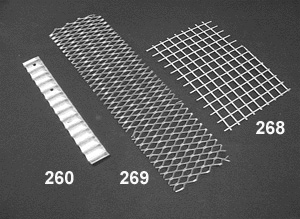

No. 260 Corrugated Wall Tie: Standard 7" (178 mm) long x 7/8" (22 mm) wide now available in several varieties. Economy Grade: Available in 26, 24, 22, and 20 gage in standard length and width (nominal) in Mill Galvanized or Hotdip Galvanized After Fabrication only. The economy grade offers two perforated nail holes. Premium Grade: Standard length and width (actual) in 26, 24, 22, 20, 18, and 16 gage in Stainless Steel, Hotdip Galvanized After Fabrication, or Mill Galvanized. Premium grade offers two or four clear punched 5/32" (3.97 mm) diameter holes. Custom widths and lengths are available in thicknesses from 3/16" to
26 gage as well as 16 ounce copper.
No. 269 Wire Mesh Wall Tie: 2 x 2 (1/2" (12 mm) ) x 16 gage hotdip
galvanized wire. 12" (305 mm) or 16" (406 mm) long x 3" (76 mm), 4" (102
mm), or 6" (152 mm), wide or cut to special sizes up to 10 ft. (3.048 m)
long. Use as tie between intersecting masonry walls.
No. 263 Double Pintle Tie
No. 204 T-Buck Anchor: Made to order to fit standard and custom hollow metal frames. Specify length and width of cross piece and type of steel. Standard corrugated shank is 10" (254 mm) long x 1-1/2" (38 mm) wide x 16 gage. No. 335 Plain Wall Plug - No. 336 Wood Filled Wall Plug: (Whistles)
Install in mortar joints to simplify nailing of furring and finishes to
masonry walls. 26 gage mill galvanized steel. No. 335 is 2-1/4" (57 mm)
square and No. 336 is 2-1/2" (63 mm) wide x 2-1/8" (54 mm) deep.(limited
availability)
No. 271 Lateral Support Anchor: Same dimensions as No. 270 without the corrugations. No. 272 Z-Type Rigid Steel Anchor: 24" (610 mm) or 28" (711 mm) long x 1-1/2" (38 mm) wide x 1/4" (6.35 mm) thick with 2" (51 mm) bends. No. 273 U-Type Rigid Steel Anchor: Same dimensions as No. 271.
No. 351 Corrugated Control Joint Anchor: 6-1/4" (159 mm) overall
length x 1" (25.4 mm) wide x 24 gage. V-Section is 1/4" (6.35 mm) wide
x 1-3/4" (44.4 mm) deep.
Heckmann Building Products Inc. |
No. 268 Metal Lath Wall Tie: 3.4 lb. galvanized lath, or 2.5
painted lath, sheared to lengths up to 8 ft. (2.44 m) x width specified.
Install below CMU cores to support mortar or grout fill.

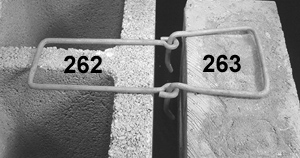

No. 262 Double Eye Rod Anchor

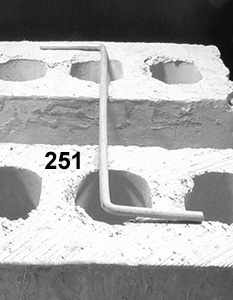

No. 251 Z Wire Tie (No Drip)
No. 200 Corrugated Buck Anchor: 8" (203 mm) long available
in widths of 1-1/4" (32 mm), 1-1/2" (38 mm), 2" (51 mm), 2-1/2" (64 mm),
3" (76 mm), or 4" (102 mm). 16 gage mill galvanized with 2" (51 mm) bend
and staggered 3/16" (4.76 mm) holes.
No. 253 Rectangular Wire Tie (No Drip)

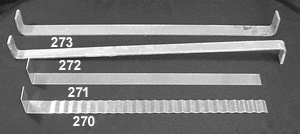

No. 270 Corrugated Lateral Support Anchor: 20" (508 mm) long
x 1-1/4" (32 mm) wide x 14 gage with 2" (51 mm) bend. Corrugations are
18" (457 mm) long.

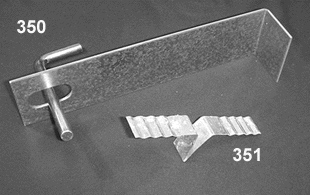

No. 350 Heavy Duty Control Joint Anchor: Anchor is 12" (305
mm) long x 3" (76 mm) wide x 1/8" (3.17 mm) thick with 2" (51 mm) bend.
Slot is 2" (51 mm) long x 1" (25.4 mm) wide. L-Rod is 6" (152 mm) long
x 1/2" (12.7 mm) dia. Electro Galvanized steel with a 2" (51 mm) bend.
