POS-I-TIE® Brick Veneer Anchoring System

The Pos-I-Tie® System is a two-piece anchor used to easily attach brick veneer to Metal Studs, Concrete, CMU, Brick, or Steel Beams. Unlike other systems the screw is a part of the system—no inferior screws can be substituted. The barrel portion penetrates the gypsum board and makes a Positive Lateral Connection with the backup for transfer of compression and tension loads. A neoprene washer comes installed for preventing moisture from entering the gypsum board.

MR-MANUFACTURER

Founded in 1923, Heckmann Building Products is celebrating its 70th year of providing quality Masonry Anchors and Ties and Concrete Anchoring Systems to the construction industry. The Management Team/Owners are the third generation of the founder, Richard Heckmann Sr.


PP-PRODUCT PRESENTATION

Three Types of Screws - Six Barrel Lengths - Four Types of Ties

SELF DRILLING SCREW - For use with Brick Veneer To Steel Studs.
TAPCON® SCREW - For use with Brick Veneer To Concrete, CMU, or Brick.
DRIL-IT® SCREW - For use with Brick Veneer To Steel Beams.

5/8" Barrels for 1/2" and 5/8" gypsum board.
1" Barrels for 1" insulation.
1-1/2" Barrels for gypsum board and 1" insulation.
2" Barrels for 2" insulation.
2-1/2" Barrels for gypsum board and 2" insulation.
3" Barrels for gypsum board and 2-1/2" insulation.

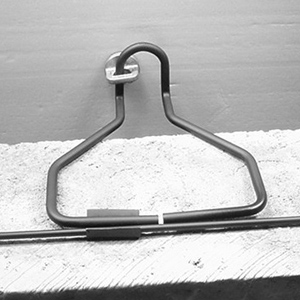

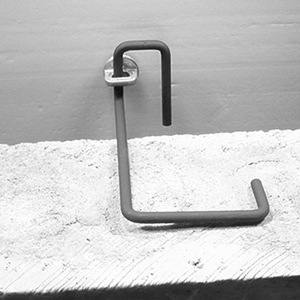

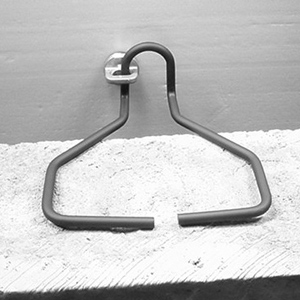

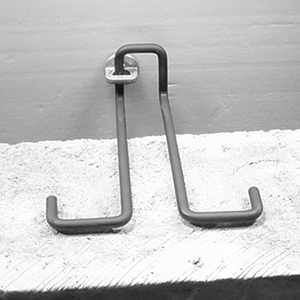

Triangle shaped tie, Double-J tie, Seismic Tie, or Single Wire Tie available in 3/16" diameter Mill Galvanized, Stainless Steel, and Hotdip Galvanized After Fabrication.


UA-USES, APPLICATIONS

The Pos-I-Tie® system is used to attach brick veneer to backups of Steel Studs, Concrete, CMU, Brick, Wood, or Structural Steel.


AI-ASSEMBLY, INSTALLATION

Use a drill with a depth sensitive nose piece or a variable clutch adjustment. The Pos-I-Tie® screw is placed into the reusable chuck adapter. For steel studs drill Pos-I-Tie® through gypsum board into the metal stud (this takes about 5 to 10 seconds per screw!). For structural steel center punch prior to drilling. (High tensile steel or very thick steel may require pre drilling a 3/16" pilot hole.) For concrete, CMU or brick use the reusable con drive adapter with drill bit. Pre-drill a 3/16" hole to a depth of 2" and slide the con drive sleeve over the drill bit and insert the Tapcon Screw into the chuck adapter. Torque screw into the predrilled hole.


MF-MATERIALS, FINISHES

Barrels: Zamac 2, a 92% Zinc Alloy.
Tapcon®: ICBO approved-Report #3370. Material - SAE J429 Grade 5.2. Heat Treated - SAE J78. Plating - ASTM B 633 with thickness modified to .0002 minimum plus blue dye and lacquer.
Dril-It®: Material - SAE J429 Grade 5.2. Heat Treated - SAE J78. Plating ­ ASTM B 633 with thickness modified to .0002 minimum plus wax.
Self-Drilling Screw: Material - SAE J429 Grade 5.2. Heat Treated - SAE J78. Plating ­ ASTM B 633 with thickness modified to .0002 minimum. Coated Twice and baked with Stalgard®
Ties: Mill Galvanized to ASTM A 641 with 0.10 oz/sf zinc coating. Hotdip Galvanized to ASTM A 153 Class B-3 with 1.30 oz/sf zinc coating. Stainless Steel type 304.


CS-COATINGS, SURFACING

N/A

Pullout Tests available upon request.

OM-OPERATION, MAINTENANCE

Once installed no maintenance is required.
