Gutter Boxes with Covers Type GBL

Gutter Box designed for use with DS-1 Downspout Boot. Box dimensions “D” and “W” should give 1” clearance on top and each side of Downspout Boot.

Long Gutter Box assemblies made by using multiple sections of 4’- 0”, shorter section(s) as specified.

For neat appearance, bell is 1” below surface.

Cover fastened with pan head, stainless steel screws.

SIZES
D X W	D X W	D X W
4 X 4 4 X 6 4 X 8 4 X 12	6 X 6 6 X 8 6 X 10 6 X 12	8 X 8 8 X 10 10 X 10 10 X 12 12 X 12
DIMENSIONS IN INCHES. FOR MM, MULTIPLY BY 25.4

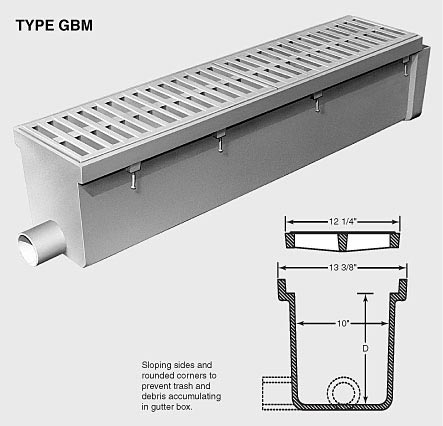

TYPE GBM Gutter Box Heavy Duty

Designed for H20 wheel loads.

Two sizes:
10” x 6” Deep
10” x 12” Deep

5’-0” Standard Length or multiple sections furnished for specific lengths.

Options:
Ends can be open.

Drain Outlets can be located on the side, end, or bottom of box.

Outlets up to 8” on 10” x 12” Deep
Outlets up to 6” on 10” x 6” Deep

Grate has ample drainage
51 square inches per linear foot.

Furnished standard in Iron.
