Craftsman™ Series

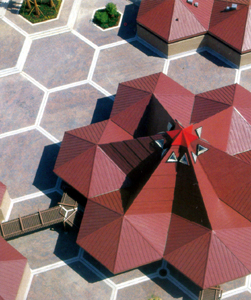

The Craftsman™ Series design makes complicated building transitions simple without the necessity of unsightly flashings. Hip, ridge, and valley conditions can be designed into any project. Slope changes from roof to fascia to soffit can be made with one continuous pan and batten.

SNAP-ON BATTEN
The pan and batten are manufactured separately to maximize design flexibility and ease of installation for difficult hip, ridge, or valley conditions. Narrow, wide, and high profiles are available: Small Batten (SB), Large Batten (LB), and High Batten (HB).

CONCEALED FASTENING SYSTEM
Each profile has its own concealed clip that securely locks the batten to the panel while allowing for expansion and contraction.

UL 90 APPROVED
Each Craftsman™ Series panel carries an Underwriters Laboratories UL 90 Uplift classification installed over 5/8" plywood or a composite roof assembly with a metal subdeck and rigid insulation. For complete information, call MBCI or review UL Construction Numbers 280, 281, 282, 308, 309 and 310.

APPLICATION
The Craftsman™ Series is a water shedding panel system and can be used for roofs and mansards only when installed over a waterproofed solid substructure and the roof has a minimum slope of 3:12. When used for fascias and soffits, either the MBCI LiteFrame™ system or a solid substructure can be used.

CRAFTSMANä ARCHITECT/ENGINEER INFORMATION

1. Use a properly aligned and uniform substructure to avoid panel distortion. Typical substructures - plywood (5/8" minimum), light weight concrete, metal decking or OSB. All substructures must be properly engineered to meet specified design loads. For illustration purposes, details are shown over plywood decking. For other substructures, please inquire.

2. Craftsmanä panels are water shedding panels and therefore must be installed on a minimum 3:12 roof slope. The panels must be installed over a completely waterproofed substructure. If the waterproof membrane is mechanically attached with metal fasteners of any type, fasteners should be covered to protect the back side of the roof panels. Any mechanical attachment device that does not lay flat on the deck will telegraph through the panels.

3. Narrower widths, heavier gauges, and embossing minimize oil canning. Industry standard - 12" wide, 24 gauge. Oil canning is not a cause for rejection.

4. For continuous roof panels over 40', please inquire. Panels may be endlapped.

5. Craftsmanä panels can be used on roofs with transitions or slope changes.

6. All panels are subject to surface distortion due to improperly applied fasteners. Overdriven fasteners will cause stress and induce oil canning across the face of the panel at or near the point of attachment. Standard MBCI fasteners are recommended for attachment to metal and wood for all architectural panels, including Craftsmanä panels. Use maximum caution when fastening to a wood substructure.

7. All panels require sealant at eave or valley conditions.

8. Avoid restricting the thermal expansion and contraction of the Craftsmanä panels. (i.e. Do not attach panel to the substructure at both the eave and ridge.)

The Craftsmanä Series is a snap-on batten roof system, available in a small, large or high batten. The pan and batten are manufactured separately to maximize design flexibility and for ease of installation at difficult hip, valley and slope change conditions.

CRAFTSMAN™ SMALL BATTEN PROFILES

Coverage Widths - 12" and 16 1/2"
Minimum Slope - 3:12
Panel Attachment - SB Clip (concealed fastening system)
Panel Substrate - Galvalume® (standard)
Gauge - Standard: 24 Optional: 22 and 26 gauge
Coatings - Signature® 200, Signature® 300 and Signature® 300 Metallic

UL 90 REQUIREMENTS
Construction #280
SB Over Plywood Deck

1. Metal Panels - 24 gauge or heavier - 12" or 16 1/2" wide, continuous over two or more spans.
2. Panel Clips - SB clip - spaced 2'-0" o.c. max.
3. Fasteners - #10 x 1" pancake head. 1 per clip.

Construction #310
SB Over Metal Deck

1. Metal Panels - 24 gauge or heavier - 12" or 16 1/2" wide, continuous over two or more spans.
2. Panel Clips - SB clip - spaced 2'-0" o.c. max.
3. Fasteners - 1 per clip.

FIRE RESISTANCE RATING

METAL BUILDING COMPONENTS INC, HOUSTON TX 77238 R8116 (R)

1. Mechanically Attached Metal Roof Panels - Type Craftsman™ SB 12" or 16 1/2" (24 MSG). Secured by steel anchor clips. Anchor clips are attached to a hat-shaped member * (Minimum depth 1") or a bearing plate**.
For use in Design Nos. P224, P225, P227, P230, P237, P508, P510, P512, P701, P711, P715, P717, P803, P814, P815, P819, P821, P823.
*Hat-shaped member to be a minimum of 16 gauge. The member will be fastened through the roof insulation to the steel roof deck with No. 14 self-drilling and/or self-tapping fasteners. Spacing to be determined by the structural loading requirements. In addition, any compressible UL Classified glass fiber blanket insulation with or without a vapor-retarder facing may be used between the specified roof insulation and the metal roof panels.
**Bearing plate to be a minimum of 16 gauge. Member will be fastened through the roof insulation to the steel deck with No. 14 self-drilling and/or self-tapping fasteners.
See UL Fire Resistance Directory for details of illustrations and fire resistance hourly ratings.

CAUTION
For UL 90 Rated Roofs, the above requirements must be followed. See UL Roofing Materials and Systems Directory for additional requirements.
If you have any questions, call MBCI before proceeding.
