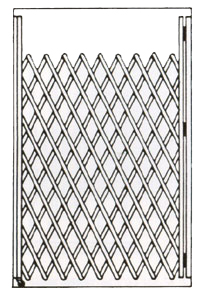

Lazy Tong Folding Gates

Constructed of 3/4" x 3/8" channel riveted back to back, with brass washers between, not over 6" on center. Vertical end bars are cold rolled box track section with ball bearing rollers for smooth operation. Gate can be furnished with cylinder lock or padlock lugs.

FINISH: Dipped in cleaning bath & painted one shop coat enamel. Color as selected from our standard colors. NOTE: Not Recommended For Use In Cabinets.

NO. 400-SINGLE LAZY TONG FOLDING GATE
Recommended maximum width 8' -0". Equipped with ball-bearing swivel rubber caster. Gate can be hinged or fixed.

No. 401-DOUBLE LAZY TONG FOLDING GATE
Recommended maximum width 14' -0". Equipped same as No. 400 with cane bolt on inactive section.
No. 402-SINGLE LAZY TONG FOLDING GATE
Recommended maximum width 12' -0". Equipped with stationary top track and rubber caster for stability and smoother operation.

No. 403-DOUBLE LAZY TONG FOLDING GATE
Recommended maximum width 14' -0". Equipped same as No. 402 with cane bolt on inactive section.
