Series 1301-SM Display Case Doors with Surface Mounted Pivots
More Glass... Less Metal...
Glass Available:

3/8", 1/2" or 3/4" thick
Clear tempered
Clear annealed laminated
Low-iron (Starphire and others)
Anti-reflective (Amiran)
Specialty glass on request

Top and Bottom Rails for Series 1301-SM Display Doors available in the following finishes:

Aluminum

Satin clear anodized
Satin black Duranodic
Satin bronze Duranodic in various shades
Paint in various colors
Powder coating in various colors

Architectural Bronze

Satin, high polished, or statuary

Stainless Steel

Satin or high polished

Sidelights/Centerlights - Fixed panels are available to match the doors.

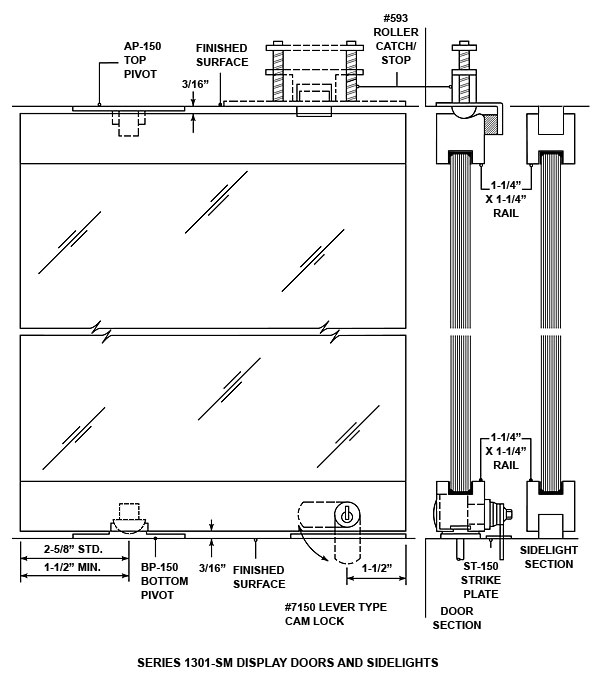

SERIES 1301-SM DISPLAY DOORS AND SIDELIGHTS

SERIES 1301-SM DISPLAY DOORS AND SIDELIGHTS
WITH SURFACE MOUNTED PIVOTS

Before sending preliminary sketches to Blumcraft, please refer to complete catalogs in Sweets:

Tempered Glass Doors - 08 41 00 / BLU
Architectural Hardware - 08 71 00 / BLU
Display Case Doors - 12 35 59 / BLU
Railing Systems - 05 73 00 / BLU
