CPI Daylighting, Inc.28662 N. Ballard Drive Lake Forest, IL 60045, USA Phone: (847) 816-1060 Toll-Free: (800) 759-6985 Fax: (847) 816-0425 E-mail: cpi@cpidaylighting.com Web site: http://www.cpidaylighting.com CPI CANOPY & WALKWAY SYSTEMS - Translucent Standing Seam Polycarbonate Nano-Cell Pentaglas® and Quadwall® Glazing VISIT OUR WEBSITE FOR PRODUCT DETAILS ABOUT THE FOLLOWING TRANSLUCENT SYSTEMS

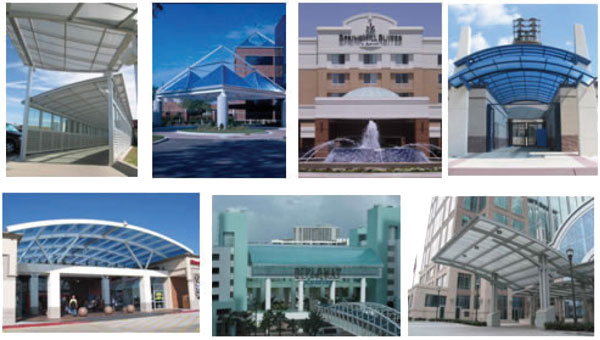

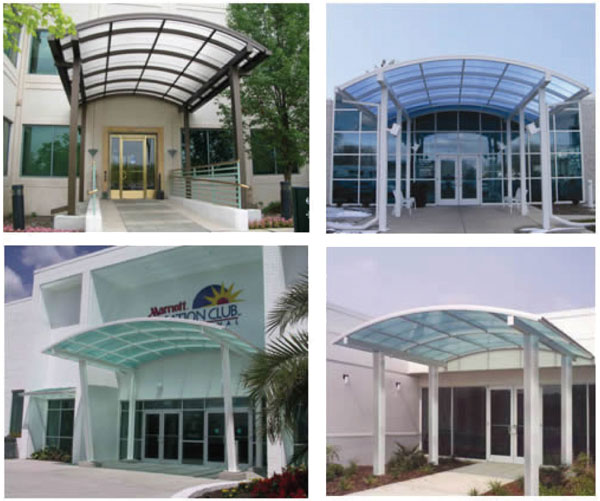

Custom Translucent Canopies

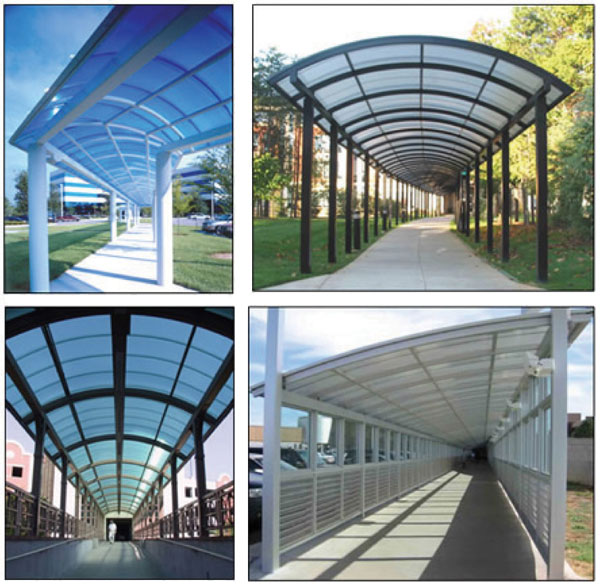

Custom Translucent Walkway Covers
Clearspan Translucent Canopies
Clearspan Walkway Covers

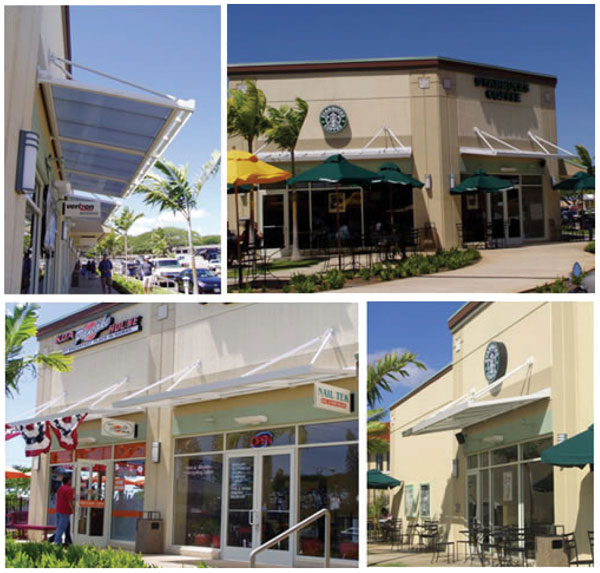

LiteBrow Suspended Translucent Sun Screens
U-Lite Solid Plastic Canopy Systems
Benefits of Translucent Standing Seam Polycarbonate Nano-Cell Pentaglas® and Quadwall® Glazing for Canopies and Walkways ARCHITECTS DISCOVER Code Compliance —Meets requirements of The International IBC code as well as regional UBC and BOCA codes for approved light transmitting materials and/or roof covering systems. Other approvals are available. Fire Retardant —Danpalon® is a non-aggressively burning material with low smoke development and density, available as CC1 or CC2 classification, and in Class A, B or C flame spread. The material will melt away when subjected to fire, forming venting holes through which smoke, gases and heat are released. During tests, no adverse sheet burning effects were noticed, such as fire spread or burning droplets. Class “A” Roofing System —(U.S. patented)Fire Rated Quadwall® is the only system of its kind that meets Class “A”, “B” or “C” roof covering system requirements (UL790, E-108),and is listed and labeled as a fire rated panel by a recognized independent laboratory. Unlike other Class “A” panels, Pentaglas® maintains excellent weathering properties. Hurricane Endurance Design —CPI offers an innovative design that complies with Florida codes for hurricane conditions including resistance of impact, cyclic and wind load, and air/water infiltration. Visual Appeal —The honeycomb panel technology provides a visually pleasing glazing surface that is divided into small modules. The standing seam is an excellent design alternative to large, monotonous glazing fields. Quadwall® also offers a flat surface with 2' module panels. In addition, a choice of polycarbonate or aluminum standing seam battens can be accented by a selection of colors. Stunning Light Quality —The Pentaglas® honeycomb structure diffuses a greater quantity of pleasing light over a broader area with no glare or hot spots. High Light Levels —A wide range of light levels, from 3% to 80%, with a broad range of shading coefficients. Pentaglas® delivers more light per insulation level than traditional composite systems. High Insulation —High levels of insulation are achieved without use of fiberglass batts, which compress, lose values and reduce light transmission. Pentaglas® exhibits improved condensation resistance due to an inherent thermally broken structure. The high thermal transfer occurring at the aluminum grid in fiberglass composite panel systems is also eliminated. Glazing Options —A wide selection of colors are available in standard or matte finish to allow complementary exterior and interior panels. Allows optimizing of Light and Solar transmission and aesthetic appeal. Metallic Reflective —Colors offer a perfect blend with other modern materials and enhance solar performance. Color Stability —The high quality polycarbonate UV composition and co-extruded technology delivers a color-stable panel that will not delaminate, discolor, craze, or fiber-bloom. |
