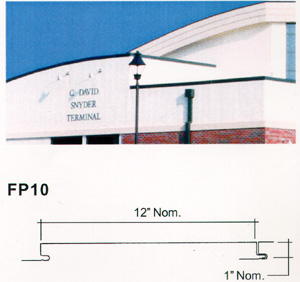

Flush Panel FP10

• Light structural panel system providing a flush look when installed
• Available in prefinished 24, 22 ga. Steel and .032, 040 Aluminum
• Progressive panel installation
• Available with seams at 12” or 20” o.c.
• Acceptable substrates include:
• Light gauge framing
• Hat channels
• Wood stringers (< 24” c.c.)
• Solid substrates
• Applications include:
• Vertical walls and fascia bands
• Equipment screens
• Horizontal soffits

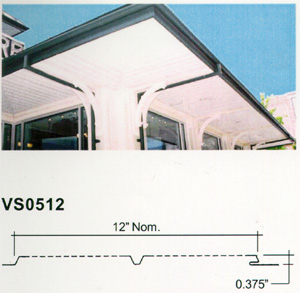

• Commercial grade soffit panel system with seams at 12” o.c.
• Solid Panels available in prefinished 24 ga. Steel and .032 Aluminum
• Perforated panels available in .032 Aluminum only
• Progressive panel installation
• Acceptable substrates include:
• Light gauge framing
• Hat channels
• Wood stringers (< 24” o.c.) or over a solid surfaces when a solid panel profile is used
• Applications include:
• Soffits
• Vertical walls and fascia bands
• Light duty equipment screens

• Custom fabricated to accommodate actual field conditions
• Available in the following DMI profiles:
• Double-Lock,
• Snap-on-Seam (all seam heights)
• Batten-Seam
• Inter-Lock
• Span-Lock (SL20, SL25)
• See system descriptions for acceptable substrates

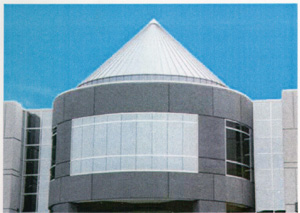

• Typically installs on solid substrate conical shaped roofs with slopes greater than 2:12
• Consult DMI for technical assistance before finalizing your project’s design requirements

• Custom fabricated to accommodate actual field conditions
• Available in Snap-on-Seam profile with straight legs
• Available in 24 ga. Steel, .032 Aluminum, 16 oz and 20 oz Copper.

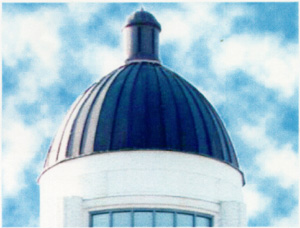

• CC10 installs on outside corners of compound curved canopies or spherical domes

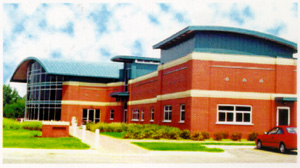

• CR10 installs on curved roofs, barrel vaults, curved canopies / soffits
• Curves may be concave or convex
• Consult DMI for technical assistance before finalizing your project’s design requirements

• Custom fabricated to accommodate actual field conditions
• Available in Snap-on-Seam profile with straight legs and Double Lock Profile
• Available in 24 ga. Steel, .032 Aluminum, 16 oz and 20 oz Copper.
• CR10 installs on curved roofs, barrel vaults, curved canopies / soffits
• Curves may be concave or convex
• Consult DMI for technical assistance before finalizing your project's design requirements.
