Panelfold®
Operable Walls
10650/PAN
P.O. Box 680130
Miami, FL 33168
Tel: 305-688-3501
Fax: 305-688-0185

Colored dots in the image represent the surface and color availability. See the "Panelfold Surfaces and Colors" profiles for samples.

Panelfold Operable Partitions

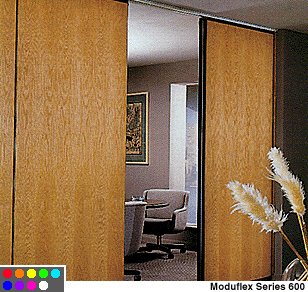

Moduflex Series 600 high performance operable walls with four inch (102mm) thick panels for general purpose applications have high density panel faces which are machine laminated to metal frames providing the strength, mass and stability required.

• Sound Transmission ratings to STC 50
• Class "A" flame spread rating
• Four inch (102mm) thick panels
• Full height pin-tackable surfaces
• Sheer Look® panel edges with no exposed trim
• Available to twenty-four feet (7315mm) high

MODUFLEX POCKET DOORS

OPERATING FEATURES

Moduflex Pocket Doors are manufactured with the same construction as Moduflex operable wall panels. They are offered in types which work effectively with the operable wall configuration selected. An applications chart is provided with the CAD.

ACOUSTICAL PERFORMANCE

Moduflex Pocket Doors are offered with ratings of STC 49, STC 45, STC 38 and STC 33.

PANEL FINISHES

A full range of vinyl, panel fabric, wall carpet as well as Customer's Own Material may be specified. Wood veneers and plastic laminates are available only on Series 600 and Series 400 Pocket Doors.

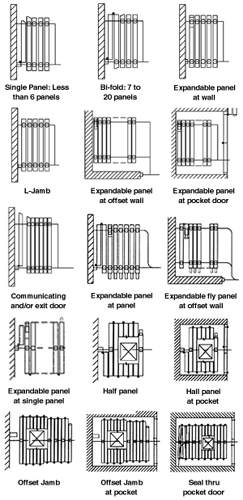

POCKET DOOR APPLICATIONS

The chart which follows shows which type pocket door is recommended for use with each operable wall panel configuration and closure type. "Primary" means this type is usually recommended. "Secondary" means sometime recommended for a special condition, such as when inward swinging doors are required and the pocket depth permits.
