 PACT™
are as durable as they are
beautiful. The heavy-duty construction, simple mechanical design and Von Duprin’s
legendary commitment to quality combine to ensure a long, trouble-free service

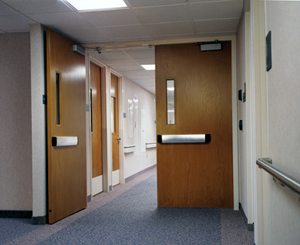

life. Recessed in the door, INPACT maintains a low-profile with sloped end caps that
deflect objects away from the door and closer to being totally flush with the
door when depressed. Making it the perfect application for healthcare facilities,
universities and other high-profile buildings. Finishes include US3, US4, US10, US26, US26D, US28 and 313. Devices are UL/cUL
listed Panic Hardware (FVSR) SA163. Fire devices (F) are UL/cUL listed Fire Exit
Hardware (GXHX) R4504, A label. Tested in accordance to ANSI A156.3, Grade 1. Series 94 Exit devices feature smooth surfaces. Series 95 exit devices feature
grooved extruded surfaces.
The shock-absorbing extruded aluminum push pad is designed to take the wear
and tear of even the most demanding high-traffic areas, while its beautiful
design provides a comfortable, user-friendly shape. The nonhanded design simplifies
installation and gives superior flexibility in the field. Horizontal motion
eliminates pinch points. Sloped and sturdy die-cast metal endcaps are designed
to survive the heaviest impact and deflect carts, protecting the device and
the door.
Latchbolts have a self-lubricating coating to reduce friction and wear. Compression
springs are used throughout. Zinc dichromate coating on internal parts prevent
corrosion. Concealed studs and through-bolts, fasten the heavy-duty outside trim.

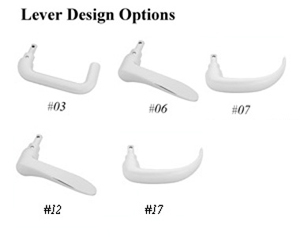

Lever trim is cast brass with a minimum average thickness on the escutcheon of
3/4". Factory door prep makes installation simple and fast.
Devices are tested in accordance to ANSI/BHMA A156.3 Grade 1 by a BHMA certified
testing laboratory. Each device has exceeded one million cycles.
Device is furnished with standard 338 and 385A strikes. A combination of fasteners
is included for surface mounting to the recessed door prep and through bolting
to trim.
The EL feature allows for the remote unlatching of the exit device. A control
station operator can flip a switch to retract the latchbolt and immediately access.
EL device is useful with automatic door operators, and may be applied to fire-rated
devices when under the control of an automatic fire alarm system.
UL/cUL approved for Class II circuit applications. This feature does not include
a power transfer from the door to the frame, nor the power supply or control operator.
Refer to Von Duprin Door Control and Security Hardware Catalog for complete information.
The LX (Latchbolt Monitor Switch) option is used to signal both egress and access
of an opening. These devices are equipped with one internal SPDT switch which
monitors the latchbolt.
The Less Bottom Rod (LBR) option is available. In lieu of a bottom rod and latch,
a spring-loaded auxiliary bolt is installed in the lower door edge.
When exposed to heat (500° for a minimum of twenty minutes), the auxiliary
latch releases, keeping the doors in alignment and closed during a fire. UL/cUL
listed for 3 hours on double egress doors and 90 minutes on doors swinging in
the same direction. The LBR option is not recommended for exterior door openings or where security
is critical.

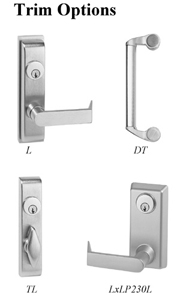

94 Series
95 Series | Concealed
Vert. Rod | Concealed
Vert. Rod Fire | Mortise Lock | Mortise Lock Fire | | Exit Only | 9447EO
9547EO | 9447EO-F
9547EO-F | 9475EO
9575EO | 9475EO-F
9575EO-F | | Dummy Trim | 9447DT
9547DT | – | 9475DT
9575DT | – | | Night Latch | – | – | 9475NL
9575NL | 9475NL-F
9575NL-F | | Thumbturn | 9447TL
9547TL | 9447TL-F
9547TL-F | – | – | | Lever | 9447L
9547L | 9447L-F
9547L-F | 9475L
9575L | 9475L-F
9575L-F |
