 incorporate modern touchbar
styling for heavy traffic applications. Available in rim, mortise lock, surface
and concealed vertical rod mountings. Designed for use on flush and wide stile
doors as narrow as 4-1/2". Also 161 stock hollow metal cutouts. Finishes include US3, US4, US10, US26, US26D, US28 and 313. US32D finish available
on Series 98. Devices are UL/cUL listed Panic Hardware (FVSR) SA163. Fire devices (F) are
UL/cUL listed Fire Exit Hardware (GXHX) R4504, A label. Tested in accordance to
ANSI A156.3, Grade 1.

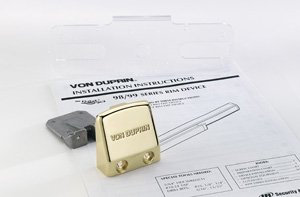

 The redesigned end cap offers
a unique combination of aesthetic styling and robust reliability, with a sloped,
contoured design that protects the device. The device also features these improvements:
a sturdier plastic template and easier-to-read installation instructions to assure
accurate installation. Series 98 Exit devices feature smooth surfaces. Series 99 exit devices feature
grooved extruded surfaces.
The Quiet One® is furnished standard on series 98/99 exit devices. A fluid
damper decelerates the push pad on its return stroke and eliminates most noise
associated with exit device operation.
The EL (Electric Latch Retraction) device provides remote access locking control,
useful where free-swinging doors are normally utilized. May be applied to fire
devices when under the control of an automatic fire alarm system.
The E7500 (Electric Mortise Lock) option provides for remote locking or unlocking
of the outside trim without retracting the latchbolt. Particularly useful as a
fail-safe component of an automatic fire alarm system.
Glass bead conversion kits are available for use on doors with raised glass beads.
The PN (Pneumatic Latch Retraction) device provides remote access unlocking control
in hazardous areas. The air cylinder used in the device has a special actuating
linkage that allows a mechanical override.
Cylinder dogging is available on all 98/99 devices to replace the standard hex
key dogging. Unit requires a standard 1-1/4" (32mm) mortise cylinder.
The RX (Request to Exit) option is used to signal egress of an opening. These
devices are equipped with one internal SPDT switch which monitors the touchbar.
The LX (Latchbolt Monitor Switch) option is used to signal both egress and access
of an opening. These devices are equipped with one internal SPDT switch which
monitors the latchbolt.
The E99 electric rim device provides remote unlocking and locking capabilities
of the outside trim.
The SS (Signal Switch) feature signals unauthorized use of an opening. One internal
switch monitors the touchbar and the latchbolt for positive security. A second
internal switch is controlled by the key cylinder for alarm shunt and reset. The
SS device is designed to work with additional alarm components.
Exit Alarm Kits are simple yet effective ways to monitor the use of an exit. The
unit contains an internal horn which operates on one 9V battery.
Trim is a stand-alone, battery-powered exit trim for use on doors where an exit
device is required for egress.
Can manage up to
1,000 users and provides audit trail for last 1,000 events.
Manually program up to
120 keycodes right at the trim.

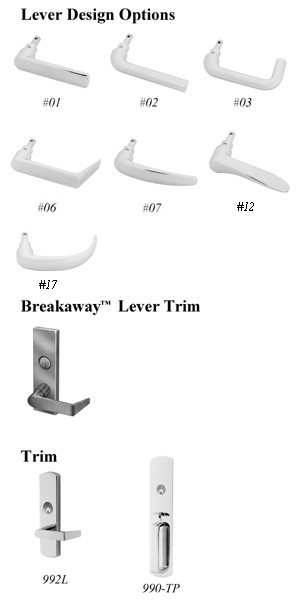

The Breakaway Lever Trim Series 994L significantly reduces damage from vandalism
while maintaining ADA standards. When excess force is applied, the lever trim
appears to break. Later it can be easily reset, saving the cost of replacement.
Fits VonDuprin Series 98/99 exit devices and can be retrofitted for 992L lever
trim. To inquire about additional trim options, call 800-999-0408 (USA) or 905-278-6128
(Canada).
98 Series
99 Series | Rim/Rim Fire | Surface Vert.
Rod/Fire | Three-Point
Latch Fire | Concealed Vert.
Rod/Fire | Concealed Vert.
Rod Wood Door/Fire | Mortise
Lock/Fire | | Exit Only | 98EO / F
99EO / F | 9827EO / F
9927EO / F | 9857EO / F
9957EO / F | 9847EO / F
9947EO / F | 9847EOWDC / F
9947EOWDC / F | 9875EO / F
9975EO / F | | Dummy Trim | 98DT / –
99DT / – | 9827DT / –
9927DT / – | 9857DT / –
9957DT / – | 9847DT / –
9947DT / – | – | 9875DT / F
9975DT / F | | Night Latch | 98NL / F
99NL / F | 9827NL / F
9927NL / F | – | 9847NL / F
9947NL / F | 9847NLWDC / F
9947NLWDC / F | 9875NL / F
9975NL / F | | Thumbpiece | 98TP/ F
99TP/ F | 9827TP / F
9927TP / F | 9857TP / F
9957TP / F | 9847TP / F
9947TP / F | 9847TPWDC / F
9947TPWDC / F | 9875TP / F
9975TP / F | | Knob | 98K / F
99K / F | 9827K / F
9927K / F | 9857K / F
9957K / F | 9847K / F
9947K / F | 9847KWDC / F
9947KWDC / F | 9875K / F
9975K / F | | Lever | 98L / F
99L / F | 9827L / F
9927L / F | 9857L / F
9957L / F | 9847L / F
9947L / F | 9847LWDC / F
9947LWDC / F | 9875L / F
9975L / F | | Turn Lever | – | 9827TL / F
9927TL / F
9827LBR- F
9927LBR- F | – | 9847TL / F
9947TL / F
9847LBR- F
9947LBR- F | – | – |
Von Duprin – Ingersoll Rand Security Technologies
2720 Tobey Drive
Indianapolis, IN 46219
Tel: (800) 999-0408
Fax: (800) 999-0328
E-mail: trade_marketing@irco.com
Web site: http://www.vonduprin.com
|
