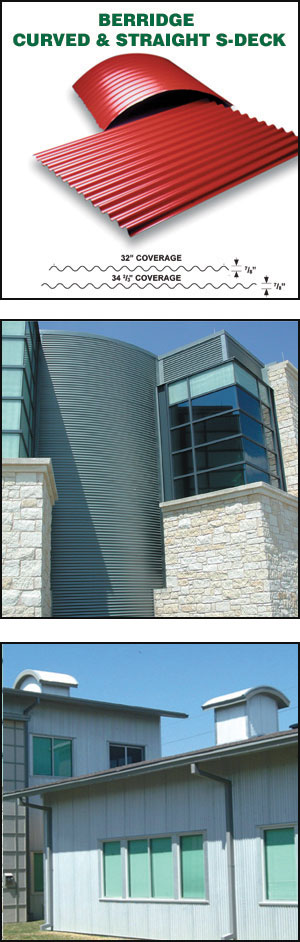

Berridge "S" Deck is an exposed fastener 24-gauge corrugated metal panel which may used in its straight configuration for substrate (installed horizontally) for curved roofs or as a roof system. Berridge "S" Deck may also be curved for applications such as covered walkways or barreled roofs. "S" Deck has a nominal 32" or 34-2/3" wide coverage and a rib height of 7/8". Berridge S-Deck is available in 24-gauge or 22-gauge in all of Berridge's prefinished colors as well as Satin Finish and Acrylic Coated Galvalume®. Secondary material is also available for substrate applications.
- Nominal 32" or 34-2/3" wide-coverage with 7/8" rib height
- Can be factory-curved (min. 5' radius)
- Multi-purpose, exposed fastener panel for roofs, decking, walls and soffit
- Corrugated structural metal sheathing
- Use horizontally as solid sheathing on curved substrates
- Wide selection of LEED 2.2 and Energy Star compliant, Kynar 500® or Hylar 5000™ Berridge Colors with a 20-Year Paint Finish Warranty
- Florida Product Approval: FL 11422.13, FL 11422.14, FL 11462.9, FL 11462.10, FL 9000.1
Visit www.berridge.com for more information including: product data on standing seam metal roofing systems, metal wall panels and other metal products, complete installation details (PDF), CADD details (DWG), color selection information and much more.
