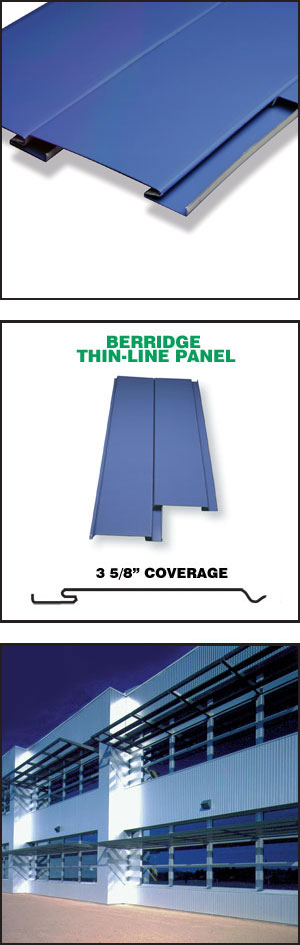

The Berridge Thin-Line Panel is a The Berridge Thin-Line Panel is a prefinished concealed fastener panel with nominal 3-5/8" coverage for vertical applications. Its thin, extruded flat appearance makes it suitable for soffit, wall or fascia applications. Thin Line Panels are available in 24-gauge in all of Berridge's prefinished colors as well as Satin Finish and Acrylic Coated Galvalume® .
- 3-5/8" exposure
- Fascia, Facade, Soffit & Wall Panel
- Channel Drain Interlock
- Concealed fasteners
- Flat, smooth appearance
- Use horizontally for soffit applications
- Use vertically for wall applications
- Available with wood-grained embossing
- Wide selection of LEED 2.2 and Energy Star compliant, Kynar 500® or Hylar 5000™ Berridge Colors with a 20-Year Paint Finish Warranty
- Florida Product Approval: FL 11462.11
Visit www.berridge.com for more information including: product data on standing seam metal roofing systems, metal wall panels and other metal products, complete installation details (PDF), CADD details (DWG), color selection information and much more.
