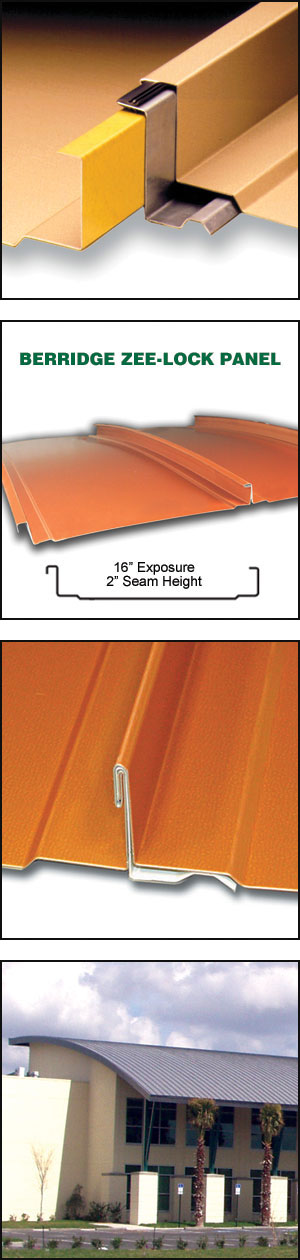

Berridge Curved Zee-Lock Standing Seam Metal Roofing System is an architectural and structural panel with a nominal coverage of 16" and a 2" high singe-locked mechanical seam side lap. It can be installed over open framing or solid sheathing. Berridge's Curved Zee-Lock System can be site-formed using Berridge's SP-21 Portable Roll Former to form the panels and the Berridge ZC-21 Portable Curver to curve the panels. The Curved Zee Lock System is available in 24-gauge and 22-gauge in all of Berridge's prefinished colors as well as Satin Finish and Acrylic Coated Galvalume® .
- 16" exposure with mechanically seamed 2" high standing seam height
- Minimum radius of 20' for convex applications only
- Structural standing seam for use over open purlins or solid sheathing
- Concealed fasteners
- Patented vinyl weatherseal strip used in single locked seam
- Continuous length panels when site-formed using Berridge's SP-21 Portable Roll Former and site-curved using the ZC-21 Portable Curver.
- Striations are available at no extra cost
- Wide selection of LEED 2.2 and Energy Star compliant, Kynar 500® or Hylar 5000™ Berridge Colors with 20-Year Paint Finish Warranty
- Consult BMC for Watertightness Warranty availability
- ASTM E 1592 Tested
- ASTM Air & Water Tested
- Florida Product Approval: FL 11159.3 R1, FL 12084.2, FL 11159.6 R1, FL 11241.5 R1
- Consult BMC for FMRC Approval and FM 1-120 Ratings
- Corps of Engineers CEGS 07416 Approved
- Miami-Dade NOA: 07-0831.10 (consult BMC)
Visit www.berridge.com for more information including: product data on standing seam metal roofing systems, metal wall panels and other metal products, complete installation details (PDF), CADD details (DWG), color selection information and much more.
